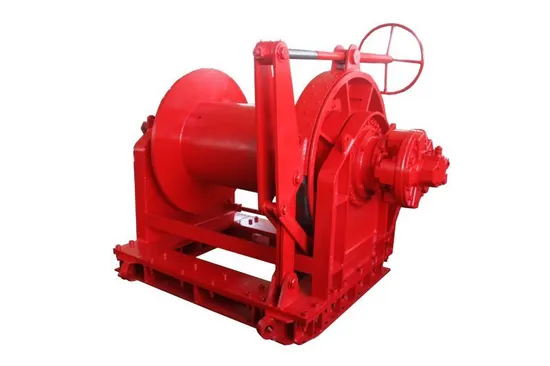

Ini 2.5 Ton Winch Hydraulic Truck Winch Two 2 Speed Winch

Product Description

INI 2.5 ton winch hydraulic truck winch two 2 speed winch Free fall winch is our patent product.
This series hydraulic winches consist of planetary gearbox, hydraulic motor, wet type brake, valve block, drum, frame and hydraulic control clutch.
The winches can get two speed if fitted with variable displacement hydraulic motor.
When fitted with hydraulic axial piston motor, the working pressure and power can be greatly improved.
The final stage of the series is fitted with a hydraulic clutch to get free fall function when the hook is empty. So the working efficiency can be improved.


Main Features
1. Safe and reliable performance
2. high starting& working efficiency
3. Reliable operation with little noise
4. long lifetime
5. Low maintenance relieves your anxiety
Application

They can be used to pull salvage vehicles, cross country vehicles, military heavy trucks and bulldozers which are damaged or stuck in mud and they can be used for self recovery. Outline drawing of 30 ton hydraulic recovery winch/truck winch Specification (can be revised to meet customer's specific needs.)
Features 1 Heavy duty high torque hydraulic motor. 2 Extremely watertight with good quality internal seal. 3 Free spooling clutch-Rotation (normal manual clutch). 4 Compact structure, easy for mounting by two angle bar. 5 Fast line speed provide high efficiency for recovery 6 With cable tensioner 7 Integrated mechanical brake. 8 Winch can be mounted on wrecker, recovery truck, or other vehicles Performance

Rated line pull (1st layer)	KN / kgs / lbs	39/ 4000 / 9000
Motor displacement	ml/rev	80
Oil flow	L/min	15-60
Oil pressure	MPa	14
Gear ratio		23:1
Wire rope (diameter x length)		Φ11mm x 25metre
Drum dimensions (diameter x length)	mm	Φ88 xΦ192 x 200
Mounting dimension and bolts		300mm x 280mm 8-M12
Overall dimension	mm	516(524) x 316(376) x 237
Net weight (with wire rope and hook)	kg	48

Line pull, oil pressure and oil flow, line speed

Line pull (KN)	Oil pressure (Mpa)	Oil flow (L/min)	Speed (m/min)
0	3.5	15	2.5
27	8.5	25	4.0
36	11.0	40	6.5
39	14.0	50	8.0
49	15.0	60	9.5

Layer of calbe, line pull per layer, speed and wire rope capacity

Layer of cable	Line pull (KN)	Speed (m/min)	Wire rope capacity
1	39	9.5	5
2	34	11.8	12
3	28	13.9	19
4	25	16.0	25
