High Output HDPE/LDPE/LLDPE Plastic Film Blowing Machine for T-Shirt Bags

Product Description

Its extruder, cylinder and screw rods are made of quality alloy steel that have been notarized and processed
in a precision way. Hence it is sound in hardness, durable in corrosion resistance. The specially-designed screw
is of sound quality in plasticizing, which helps increase the production capacity. It is applied to blowing
the plastic films like low density polygene (LDPE), high density polygene(HDPE) and linear low density
polygene (LLDPE). It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag
and vest ones.

Machine Advantages
1, We use stronger steel plate for machine body, which make machine more stable
2, Screw and barrel is nitrigened by 72 hours. 38 chromium materials, it is very hard. Copied from Taiwan
3, Hard surface gearbox, the life can be more 5 years.
4, Motor with CE standard, more 10 years life. Siemens brand
5, Electric parts is CHINT, best supplier in China.
6, Easy to operate and one worker can run 3 sets
7, Inverter: LG Brand
8, Temperature controller: Omron Brand
Machine Parameters

Model	SJ-50/600	SJ-55/800	SJ-60/1000	SJ-65/1200
Screw Diameter (mm)	Φ50	Φ55	Φ60	Φ65
Screw Length (L/D)	30:1	30:1	30:1	30:1
Film Width(mm)	100-600	300-800	400-1000	600-1200
Film Thickness(mm)	0.01-0.10	0.01-0.10	0.01-0.10	0.01-0.10
Max.Extrusion Output(kg/h)	60	70	80	90
Cylinder Cooling (Kw)	0.25	0.25	0.25*2	0.25*2
Driving Motor(kw)	15	18.5	22	30
Temperature Control	3	3	3	4
Average Power-consume(kw)	14	22	26	37
Die Size(mm)	Φ60/100	Φ80/120	Φ100/150	Φ100/200
Winding Speed(m/min)	10-100	10-100	10-100	10-80
Take-up Motor(kw)	0.75	0.75	1.1	1.5
Weight of machine(kg)	2500	2600	3000	3200
Cover Dimension(m)	5.0*2.1*3.8	5.0*2.3*4	5.5*3.3*4.2	5.8*3.6*4.5

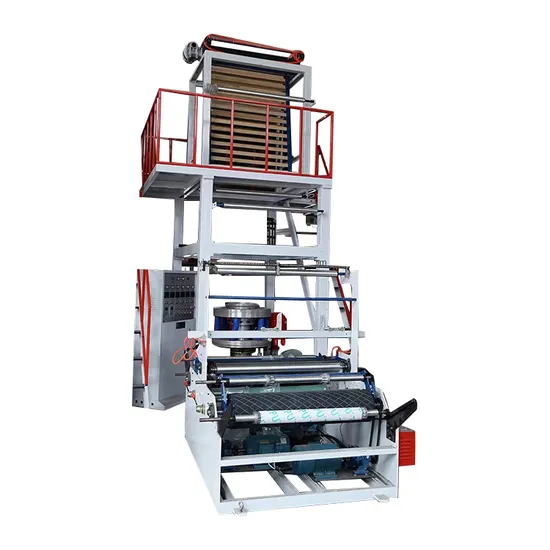

The machine picture:
