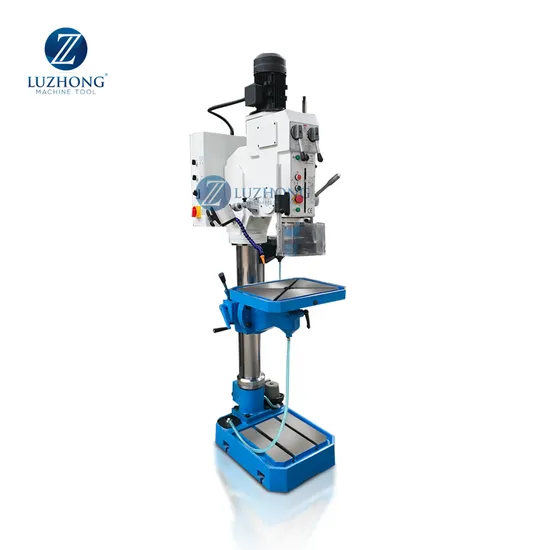

Vertical Z5045C conventional high precision drilling machine with CE
Basic Info.
Model NO.
Z5045C
Structure
Vertical Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
configuration
Hole Diameter
<50mm
Automatic Grade
Semiautomatic
Precision
Normal Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
name
Vertical Z5045C conventional drilling
Max. drilling dia.
45mm
Spindle travel
130mm
Distance between spindle nose and table
700mm
Distance between spindle nose and stand
1125mm
Distance from spindle axis to column
283mm
Table size
730*210mm
Transport Package
Plywood Case with Steel Base
Specification
1000*950*1850mm
Trademark
luzhong
Origin
China
Packaging & Delivery
Package Size
1020.00cm * 970.00cm * 1880.00cm
Package Gross Weight
550.000kg
Product Description
Vertical Z5045C conventional high precision drilling machine with CEProduct Description
Product Parameters
| SPECIFICATIONS | Units | Z5045C |
| Max. drilling dia. | mm | 45 |
| Spindle taper | - | MT4 |
| Spindle travel | mm | 130 |
| Spindle speed steps | - | 6 |
| Spindle speed range | rpm/50Hz | 80-1250 |
| rpm/60Hz | 95-1500 | |
| Distance between spindle nose and table surface | 700 | |
| Distance between spindle nose and stand table | mm | 1125 |
| Distance from spindle axis to column surface | mm | 283 |
| Spindle box travel | mm | 250 |
| Spindle box swivel angle (horizontal/perpendicular) | 360/±90° | |
| Table size | mm | 730*210 |
| Table travel(X/Y) | mm | 500*205 |
| Table vertical travel | mm | 570 |
| Stand table size | mm | 417*416 |
| Main motor power | kw | 1.5 |
| Main motor speed | rpm | 1400 |
| Machine weight | kg | 530 |
| Overall dimension | mm | 1000*950*1850 |
Detailed Photos
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
