Basic Info.
Application
Wheat, Rice, Wheat
Portable Harvester Type
Walking
Certification
ISO9001:2008
Application Field
Agriculture
Transport Package
Wooden Case
Production Capacity
8000units/Year
Product Description
Product Description

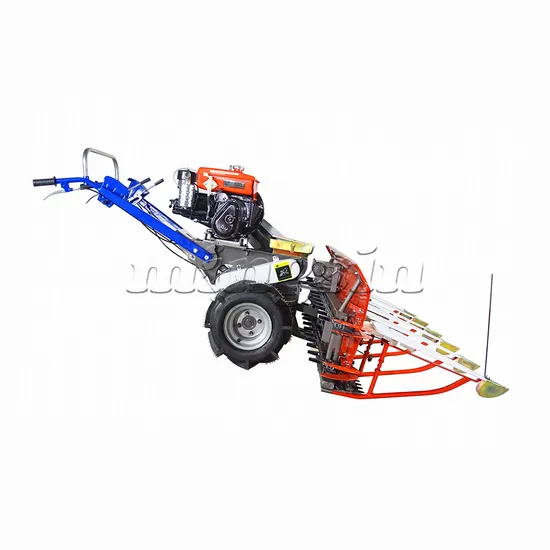

The mini wheat and rice cutting shining machine of 4G-150 has simple and reasonable structure, which is convenient for maintenance, with the advantages of small volume, light weight, low energy consumption, stable performance, good reliability and strong applicability, etc. It is especially ideal for cutting rice, wheat, soybean and reed, at the small, mountainous and hill area, and the areas that take advantage of straws.
Detailed Photos
Product Parameters
| mini wheat and rice cutting shining machine |
| Model | out size | cutting width (m) | matched power (HP=0.735kw) | production efficiency (mu/hour) | total loss rate (%) | Layingangle (degree) |
| 4G60 | 1.6x0.8x1.0m | 0.6 | F168 (4hp) | 1-2 (600-1200M²) | Rice and Wheat<1 | 90±20 |
| 4G80 | 2.1x1.1x1.0m | 0.8 | F170(4hp) / JF168 | 2-3 (1300-2000M²) |
| 4G100 | 2.1x1.25x1.0m | 1 | F170(4.4hp) / JF168 | 2.5-4 (1600-2600M²) |
| 4G120A | 2.15x1.5x1.1m | 1.2 | F170B(4.5hp) / JF200 | 3-4.5 (2000-3000M²) |
| 4G150 | 2.25x1.85x1.1m | 1.5 | R180(7hp) | 4-5.5 (2600-3600M²) |
| reed reaper | 3.0x1.9x1.5m | 1.5 | R180(7hp) | 4-5.5 (2600-3600M²) |
