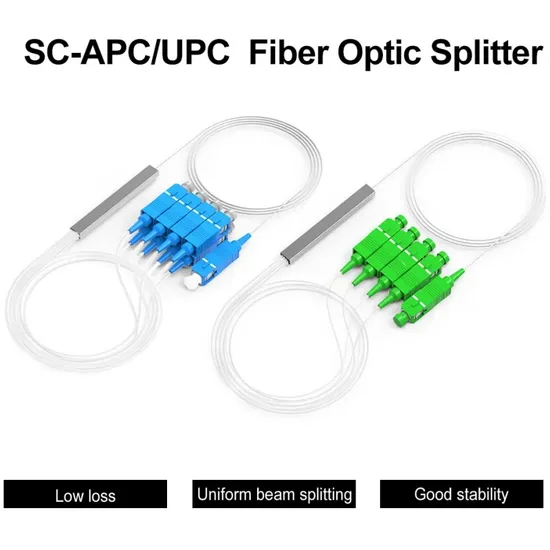

Optical Mini Steel Tube/Lgx/ABS Box Type 1X2/4/8/16/32 Fiber Optic Fbt/PLC Splitter

Product Description

Optical Mini Steel Tube/Lgx/ABS box Type 1x2/4/8/16/32 Fiber Optic Fbt/PLC Splitter
Fibconet started as a professional plc splitter factory In 1994.Today we are still the top 3 PLC/FBT splitter suppliers in China.
We adopt finest materials for brilliant performance, to ensure the products you get in the low IL, great uniformity, less bubble, small concentricity, and aperture.
All the materials are ROHS certificated and meet exporting quality level demand.
Applications
Packaging & Shipping
Product Parameters

1xN PLC Splitter Specification
Operating Wavelength(nm)	1260~1650
Fiber Type	G657A1 or as customers' order
Port Configuration	1x2	1x4	1x8	1x16	1x32	1x64	1x128
Insertion Loss (dB)	3.8/4.0	7.1/7.3	10.2/10.5	13.5/13.7	16.5/16.9	20.5/21.0	23.8/24.2
Loss Uniformity (dB)	0.4	0.6	0.8	1.2	1.5	2.0	2.5
Polarization Dependent Loss(dB)	0.2	0.2	0.2	0.25	0.3	0.35	0.4
Wavelength Dependent Loss(dB)	0.3	0.3	0.3	0.5	0.5	0.5	0.5
Temperature Dependent Loss (-40~85 ) (dB)	0.4	0.4	0.4	0.5	0.5	0.5	0.5
Return Loss (dB)			55/50
Operating Temperature			-40~+85
Directivity (dB)			≥ 55
Storage Temperature			-40~+85

2xN PLC Splitter Specification
Operating Wavelength(nm)	1260~1650
Fiber Type	G657A1 or as customers' order
Port Configuration	2x2	2x4	2x8	2x16	2x32	2x64	2x128
Insertion Loss (dB)	4.0	7.6	11.0	14.4	17.5	21.0	24.5
Loss Uniformity (dB)	0.6	1.0	1.2	1.5	1.8	2.2	2.5
Polarization Dependent Loss(dB)	0.2	0.2	0.3	0.3	0.35	0.4	0.4
Wavelength Dependent Loss(dB)	0.3	0.4	0.5	0.5	0.5	0.5	0.5
Temperature Dependent Loss (-40~85 ) (dB)	0.4	0.4	0.4	0.5	0.5	0.5	0.5
Return Loss (dB)			55/50
Operating Temperature			-40~+85
Directivity (dB)			≥ 55
Storage Temperature			-40~+85

Company Profile
FIBCONET boasts three state-of-the-art manufacturing centers covering over 10,000 sqm in Ningbo, Guizhou, and Northeast China, with a team of 800 highly skilled engineers and staff members.
With a production capacity of 300,000 PLC Splitters and 10 million fiber optical connectors per month, FIBCONET has earned a reputation as a national high-tech enterprise that excels in innovation, securing 50 patents and 15 invention patents.
Our PLC splitter, for instance, can function optimally even in extremely cold conditions of up to -50 centigrade degrees, making it an ideal solution for clients operating in harsh environments like Russia. We also offer connectors with an insert loss of just 0.1 dB, a rarity in the industry that we can deliver.
Q: The History of our factory?
A: In 2000, Fibconet entered the communications industry and began to make adapters. It accumulated funds to invest in jumper production in 2006 and increased the optical splitter workshop in 2009. Fibconet won the national high-tech industry in 2013, sold over 15 million US dollars in 2015, and began to explore foreign markets.
Q: The location of our factory?
A: Our factory is located in Ningbo, Zhejiang, and our new factory has also been put into production, located in the Northeast (Jilin Province).
Q: An occupied area for our factory?
A: The construction area of our factory is about 23,000 square meters, including 8000 square meters in Fenghua Plant and 15,000 square meters in Northeast China.
Q: Production capacity for the PLC splitter?
A: 800,000 pcs per month.
Q: What's your best price for your passive fiber optic product?
A: Based on the quality of our products and the quantity of your estimated. We would quote the great best matching price all the time.
Q: Do you offer a guarantee for the products?
A: Yes, we offer a 1-2 years warranty on our formal products.
