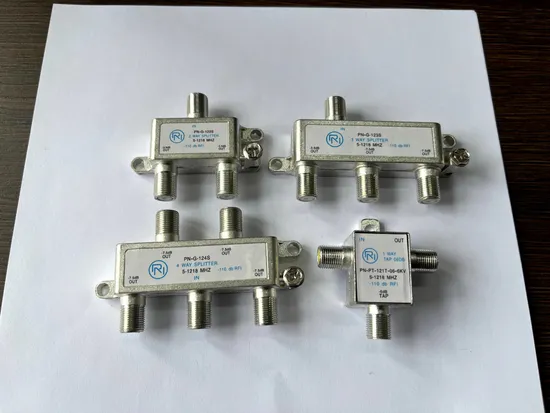

Whosale Cheap CATV Indoor Splitter 8 Way 4 Way 3way 2 Way Tap Splitter 5-1218MHz CATV Splitter

Product Description

Electrical Specification
ITEM	Frequency Range	Trade Name
		2-WAY-SPLITTER	3-WAY-SPLITTER	3WAY SPLITTER	4-WAY-SPLITTER	6-WAY-SPLITTER	8-WAY-SPLITTER
				BALANCED
Insertion Loss (IN-OUT) MAX	5-47MHz	3.5	3.5/7.0	5.5	6.9	9.7	10.8
	48-450MHz	3.7	3.7/7.2	5.8	7.2	9.7	10.9
	451-750MHz	3.8	3.9/7.4	6.2	7.4	10.3	11.4
	751-1000MHz	4.0	4.0/7.9	6.8	7.9	11.1	12.2
	1001-1218MHz	4.4	4.4/8.4	7.2	8.4	11.7	13.2
Isolation (OUT-OUT) MIN	5-47MHz	25	25	25	25	25	25
	48-450MHz	25	25	25	25	25	25
	451-750MHz	23	23	23	23	23	23
	751-1000MHz	22	22	22	22	22	22
	1001-1218MHz	20	20	20	20	20	20
Return Loss (OUT) MIN	5-47MHz	20	20	20	20	19	19
	48-450MHz	20	20	20	20	19	19
	451-750MHz	19	19	19	19	18	18
	751-1000MHz	18	18	18	18	17	17
	1001-1218MHz	16	16	16	16	16	16
Return Loss (IN) MIN	5-47MHz	20	19	19	19	19	19
	48-450MHz	20	20	20	20	17	17
	451-750MHz	19	19	19	19	17	17
	751-1000MHz	18	18	18	18	17	17
	1001-1218MHz	16	16	16	16	16	16
Nominal impedance						75 Ω
Waterproof Condition:						15PSI
Shielding effectiveness						Average >110dB
Type of construction:						Solder back
Surge Withstand:						1KV

FAQ We have first-class production line and strict quality management system.
We can give customers the most competitive price to meet your budget.
We have big production capacity to guarantee fast delivery and on-time shipment.
We have professional team to provide comprehensive one-stop service for you.
Q1: Where is your factory located How can I visit there?
A1: Our factory is located in Shenzhen City, Guangdong Province, China. All our clients, from home or abroad, are warmly welcome to visit us.
Q2: How many years experience in producing?
A2: More than 15 years, and our engineers have more than 20 years product experience.
Q3: Can provide sample to us?
A3: Yes, sample below 30m can be provided freely, but you need pay freight cost.
Q4: How is quality for your fiber optic cable?
A4: Firstly, we use top quality raw material(best fiber and friendly sheath material etc),Then surveyor will do the test, such as raw material quality test, fiber optic attenuation test and high or low temperature test etc.
Q5: How to do if don't need your company brand name?
A5: We have own factory, OEM is available; If need other brand name, it is okay. please give us letter of authorization.
