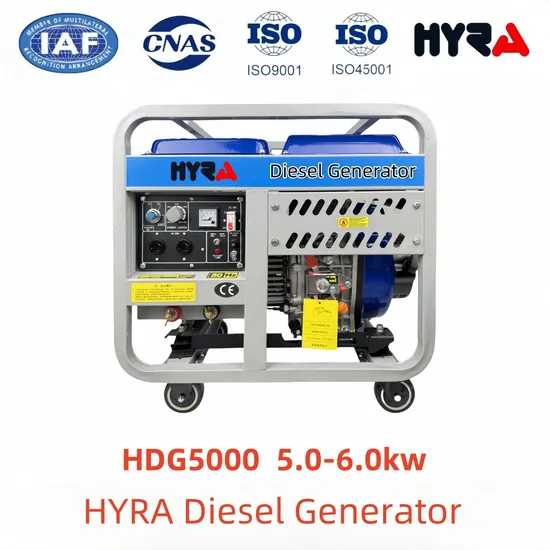

4.5kw 5kw 5.5kw 6kw 6.5kw Portable Electric Diesel Generator 220V/380V Electric Start Silent Diesel Generator Portable Electric Diesel Generator
| US$439.00-669.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HDG5000
Installation Method
Portable
Stroke
Four Stroke
Cooling Method
Air Cooled
Output Type
AC Single Phase
Speed
Speed
Engine Model
186fae
Fuel Tank Capacity(L)
12.5/16
Engine Oil Capacity
1.65
Rated Voltage(V)
220/380
Rated Power(Kw)
5.0
Max Power(Kw)
6.0
Transport Package
Cardboard Box/Wooden Box
Specification
750*515*640
Trademark
Hyra/OEM/ODM
Origin
China
Production Capacity
1000/Month
Product Description
Product DescriptionHYRA diesel generator widely used in households, stores, construction sites, factories, petroleum, mines, field rescue, agriculture and animal husbandry, as well as common and standby power supplies, etc.
We support OEM/ODM and provide personalized customization services.
Optional features: ATS, remote control, control panel, wheels/handles, 220V/380V, etc.
Customizable wireless remote control (distance of approximately 50 meters)
Customizable global remote control through the cloud.
Product Parameters
| Model | HDG5000 |
| Rated Power(KW) | 5 |
| Max Power(KW) | 6 |
| Rated voltage(V) | 220/380 |
| Phase | Single/Three Phase/Equal Power |
| Starting System | Electric Start |
| Engine Model | 186FAE |
| Fuel Tank Capacity(L) | 12.5/16 |
| Engine oil capacity | 1.65 |
| Weight(kg) | 115 |
| HYRA Diesel Generator | |||||||||||
| Model description: X:manual start, XE:manual and electric start, E:electric start, - 3:three phase electricity, 3D:single phase three phase equal power, - T:silent model packaging | |||||||||||
| Single Phase Model | 2000X | 3000X | 5000XE | 5500XE | 6500XE | 7500XE | 8500E | 10000E | 10500E | 12000E | 17000E |
| Three Phase Model | 3000XE-3 | 5000XE-3 | 5500XE-3 | 6500XE-3 | 7500XE-3 | 8500XE-3 | 10000XE-3 | 10500XE-3 | 12000XE-3 | 17000XE-3 | |
| Single/Three Phase Equal Power Models | 5000XE3D | 5500XE3D | 6500XE3D | 7500XE3D | 8500E3D | 10000E3D | 10500E3D | 12000E3D | 17000E3D | ||
| Rated Frequency (Hz) | 50HZ/60HZ | ||||||||||
| Rated voltage(V) | Conventional 220/380V Customized 110/220,115/230,120/240,127/220,230/400,240/415 | ||||||||||
| Direct current voltage(DC)(V) | 12V | ||||||||||
| Direct Current(DC)(A) | 8.3A | ||||||||||
| Phase | Single Phase | Single/Three Phase/Equal Power(Switchable single-phase or three-phase output is available.) | |||||||||
| 50Hz | |||||||||||
| 220V Rated Power(KW) | 1.8 | 2.8 | 4.5 | 5 | 6.3 | 7 | 8 | 9 | 9 | 11 | 16 |
| 220V Max Power(KW) | 2 | 3 | 5 | 5.5 | 6.5 | 7.5 | 8.5 | 10 | 10 | 12 | 17 |
| 380V Rated Power(KW) | 5 | 5 | 7 | 7.5 | 8.5 | 10 | 10 | 12 | 18 | ||
| 380V Max Power(KW) | 5.5 | 6 | 7.2 | 8 | 9 | 11 | 11 | 13 | 19 | ||
| 60Hz | |||||||||||
| 220V Rated Power(KW) | 2 | 3 | 5 | 5.5 | 6.5 | 7.2 | 8.5 | 9.5 | 9.5 | 11.5 | 16.5 |
| 220V Max Power(KW) | 2.5 | 3.3 | 5.5 | 6 | 7 | 7.5 | 9 | 10.5 | 10.5 | 12.5 | 17.5 |
| 380V Rated Power(KW) | 5.5 | 6 | 7 | 7.8 | 9 | 10.5 | 10.5 | 12.5 | 18.5 | ||
| 380V Max Power(KW) | 6 | 6.5 | 7.5 | 8 | 9.5 | 11.5 | 11.5 | 13.5 | 19.5 | ||
| Open Frame Type Size (mm) | 670*470*560 | 670*470*560 | 750*515*640 | 750*515*640 | 750*515*640 | 750*515*640 | 780*585*705 | 930*585*705 | 920*660*870 | ||
| Silent Type Size(mm) | 915*530*685 | 1100*640*730 | 1250×650×760 | 1300×650×760 | |||||||
| Open Frame/Silent Net Weight (kg) | 70 | 75/135 | 115/165 | 118/170 | 126/172 | 128/175 | 135/205 | 165/225 | 280/305 | 300/325 | 320/345 |
| Fuel Tank Capacity(L) | Default 12.5 | Default 12.5/Optional 16 | Default 26 | ||||||||
| Noise(db)(7m) | Open Frame Type 85//Silent Type72 | ||||||||||
| Engine Model | 173F | 178FE | 186FAE | 188FE | 192FE | 195FE | 1100FE | 1105FE | 2V88F | 2V92F | 2V95F |
| Type | In-line, single cylinder, air-cooled, four-stroke | Double cylinder, V-type/in-line four-stroke, air-cooled diesel engine | |||||||||
| Cylinder Diameter(mm) | 73 | 78 | 86 | 88 | 92 | 95 | 100 | 105 | 2V-88 | 2V-92 | 2V-95 |
| Piston stroke(mm) | 59 | 62 | 72 | 75 | 75 | 75 | 85 | 88 | 72 | 75 | 88 |
| Displacement(ml) | 247 | 296 | 418 | 456 | 498 | 532 | 667 | 762 | 876 | 997 | 1247 |
| Engine oil capacity | 0.8 | 1.1 | 1.65 | 1.65 | 1.7 | 1.7 | 2 | 2 | 2.5 | 4 | 4 |
| Fuel consumption(g/kw*h) | ≤260 | ≤250 | ≤240 | ≤245 | |||||||
| Rated/Maximum speed (r/min) | 3000/3600 | ||||||||||
| Starting System | Manual/12V Electric Start | 12V Electric Start | |||||||||
| Battery V(A) | Manual Start/12V28A | 12V30A | 12V32A | 12V36A | |||||||
| Motor Insulation Class | H | ||||||||||
| Continuous Working Time (h) | 8 | ||||||||||
| Fuel Grade | Diesel:0"(Summer),-10"(Winter) | ||||||||||
| Engine Oil Grade | SAE 10W30(CF grade or above) | ||||||||||
| Wheel | No(Customization with wheels is available.) | Yes(Various specifications can be customized according to the demands.) | |||||||||
| Control Panel | Various specifications can be customized according to the demands. | ||||||||||
| Remote Control (Optional) | Customizable wireless remote control (distance of approximately 50 meters) Customizable global remote control through the cloud. | ||||||||||
| Optional | ATS / Remote control / Digital control panel / Wheels and handles | ||||||||||
| Accessories Attachments | Instruction manual, certificate of conformity, 2 small wrenches, 1 small screwdriver, 1 anti-loosening plug (can be changed depending on the configuration of the panel) | ||||||||||
