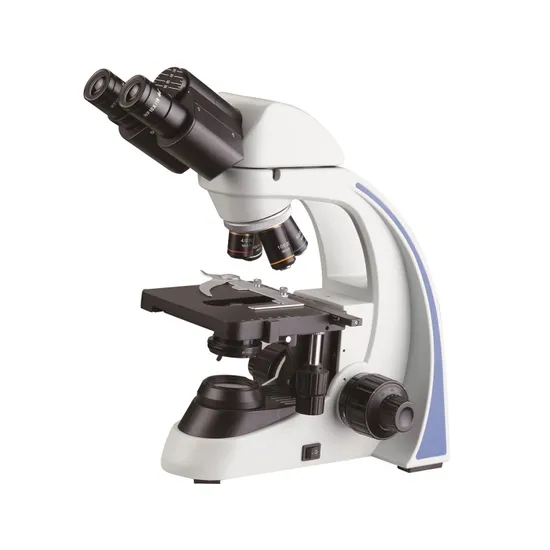

Laboratory Instrument Surgical 40X-1000X Biological Binocular Microscope (THR-BM01)
| US$410.00-450.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
THR-BM01
Number of Cylinder
Binocular or Trinocular
Mobility
Portable
Stereoscopic Effect
Without Stereoscopic Effect
Kind of Light Source
White LED Lamp Illuminator
Usage
Teaching, Research
Principle
Optics
Power Supply
AC100-240V, 50/60Hz
Optical System
Plan Achromatic Optical
Observation Method
Bright Field
Eyepiece
Wide Field Wf10X / 18 ;Optional 16X
Illumination
LED Lamp 3W
Nosepiece
4-Position
View Head
30° Inclined, 360° Rotating
Transport Package
Standard Export Packing
Specification
small
Trademark
THR
Origin
Jiangsu, China
Production Capacity
1000PCS/Month
Product Description
Product Description| Model | THR-BM01 Biological Microscope |
| Optical system | Plan achromatic optical system. |
| Observation method | Bright field. |
| View tube | Binocular/Trinocular head, 30 ° incling, 360°rotating. Diopter adjustment on the left eyepiece. Adjustment of interpupillary distance 50-75mm. |
| Eyepiece | Wide field WF10X / 18 . Optional 16X. |
| Objective | Plan Achromatic Plan 4X/0.10, 10X/0.25, 40X/0.65(Spring loaded), 100X/1.25(Spring loaded and oil immersion). |
| Nosepiece | Quadruple reversed angle nosepiece, revolver with rotation on ball bearings. |
| Illumination | White LED lamp illuminator. LED power: 3W, Color temperature: 6300K. |
| Focusing mechanism | Coaxial positioning system. Movement by roller guider(Roller and pinion). Rubber grip around fine and coarse adjust knob. Tension adjustment of coarse regulation knob. Upper pper limit stoper for protecting the lens and sample. |
| Stage | Mechanical double layer stage, platinum with overhang, dimensions 155x145 mm. Moving range: 76mm ×52mm. Vernier scale on both axes of movement with an accuracy of 0.1mm. |
| Condenser | Removable Abbe condenser, NA1.25 with aperture iris diaphragm. |
| Power supply | AC100-240V, 50/60Hz. |
