Wireless Microwave Idu Optix Rtn 950A with Intermediate Frequency Service Board Communication Module Equipment

Product Description

Product Description
RTN 950A The Huawei 6-42 GHz traditional frequency IP microwave has a maximum of 2 Gbit/s per carrier and 16 Gbit/s per antenna ultra-large transmission capacity, it is the industry's first IP microwave that supports TDM/Hybrid/Packet/Routing services on the unified platform, satisfying the requirements of large-capacity IP service transmission and IP-based evolving of traditional PDH/SDH microwave. The solution provides a flexible architecture that can be deployed in split, full-outdoor, or full-indoor scenarios. It features high reliability and end-to-end unified O&M management. It is widely used in broadband wireless transmission in vertical sectors, such as government, broadcasting, oil & gas, education, and electric power. Technical Specification
RTN950 VS RTN 950A

Type	RTN 950	RTN 950A
Scenarios	Split-mount, Hub site aggregation	Split-mount, Hub site aggregation
Size	442 mm x 220 mm x 88 mm (2U)	442 mm x 220 mm x 88 mm (2U)
Frequency	6/7/8/10/10.5/11/13/15/18/23/26/28/32/ 38/42 GHz	6/7/8/10/10.5/11/13/15/18/23/26/28/32/ 38/42 GHz
Channel Spacing	3.5/7/14/28/40/50/56/112 MHz	3.5/7/14/28/40/50/56/112 MHz
Maximum RF Directions	1,018 Mbit/s to 1,283 Mbit/s	1,018 Mbit/s to 1,283 Mbit/s
Maximum Air-interface Service Throughput	480	224
Switching Capacity	10 Gbit/s	10 Gbit/s
TDM Cross-connections	32 x 32 VC-4	32 x 32 VC-4
Service Ports	E1, STM-1(e/o), FE(e/o), GE(e/o), 2.5 GE(o), and 10 GE(o)	E1, T1, STM-1(e/o), FE(e/o), GE(e/o), 2.5 GE(o), and 10 GE(o)
RF Configuration	N+0(N ≤ 8) N x (1+0) (N ≤ 8) 1+1 HSB/SD/FD N+1 (N ≤ 7) XPIC	N+0 (N ≤ 10) N x (1+0) (N ≤ 10) 1+1 HSB/SD/FD N+1 (N ≤ 7) XPIC

RTN 950A

Model number	RTN950A
Application	Wireless long-distance transmission
Fixed configuration	Yes
configuration list	1*main control board+1*Intermediate frequency board
main control board model	SLF1CSHO
Intermediate frequency board model	SL91ISV3
IDU weight	5.4 kg(1+0)6.2 kg(1+1)
IDU specification	442 mm * 220 mm * 88 mm
Environment	Temperature:IDU -5 °C ~+60 °C ;ODU -33 °C ~ +55 °CHumidity:IDU 5%~95%;ODU 5%~100%

Product Display
Device name: Main control board
Model:SLF1CSHOEquipment name: medium frequency board
Material Code: 03020VVT
Model:SL91ISU2 TDM/Hybrid/Packet Integrated IF Single Board Device Name:Business Interface Board
Code:03021MXJ

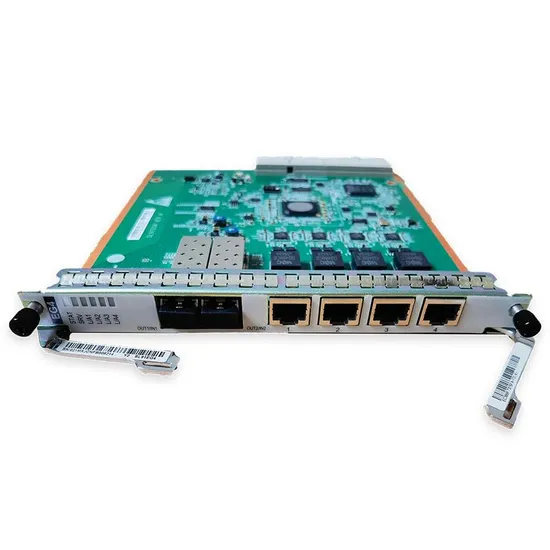

Model:SL91EG4 2 * GE (SFP/RJ45)+2 * GE (RJ45) Gigabit Ethernet Board with switch function Related Products
