Alarm Security System Perimeter Security Radar for Prisons Airports, Ports, Oil Fields Anti-Intruding People and Vehicle Security Detection Radar

Product Description

About us
Hunan Nanoradar Science and Technology Co., Ltd is a subsidiary of Novasky, which is established in 2012 which is specialized in developing, producing and selling millimeter wave radar for security, UAV, Automotive, Smart Traffic and other industrial application, our radar sensor is covering 24GHz, 77GHz and 79GHz, we are successfully developed 10+ models MMV radar products which is mainly based on the MIMO system ray and cognitive radar technology.Nanoradar's radar sensor detect range is 30-450meters, the accuracy is up to 85% for security radar to identify human, our product is hot-selling in the United of American, Korea, The united of Kingdom, France etc. Nanoradar is a major MMV radar manufacture in China.

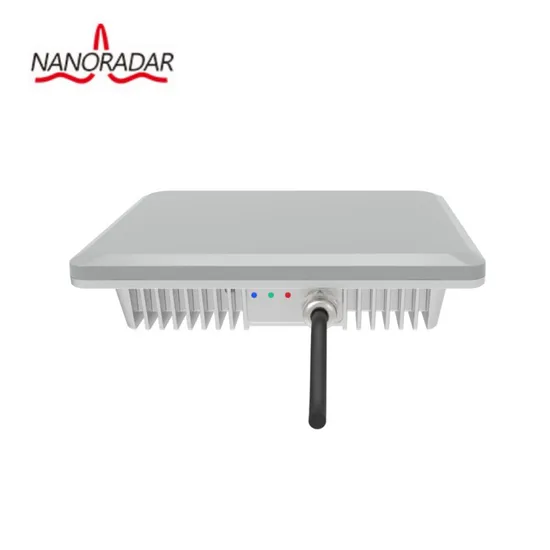

Product Description Nanoradar NSR200 is an intelligent perimeter security radar that can cross up to 300m. When the target enters the defense zone, it can carry out detection and early warning. At the same time, the accurate position of the target can be judged by the distance, angle and speed of the target, video analysis technology can be fused to check the target, and artificial intelligence (AI) algorithm can be used to judge whether it is the target to be alarmed.
Product FeaturesIntelligent: It adopts intelligent algorithm, can learn actively, has independent resolution ability andenvironmental adaptability to targets, and the system can access various comprehensive platforms.3D Protection: It uses multi-technology integration such as video and radar to create a three-dimensional protection system, which can identify various moving targets within 300m and 0.5 m²Active Detection: Radar transmitting low-power electromagnetic wave continuously without outsideinterference. It comes with stable and reliable active detection.All-weather Resistance: 7*24h real-time protection in all weather, adaptable to rain, snow, fog, haze,sand and dust etc. Never fail to miss, quite low false alarm. Product Parameters

Model No.	NSR200
Target	animal, human, vehicle
Velocity Range	-3.8~3.8m/s
Distance Range	1 ~ 300m (@ human 0°)1 ~ 200m (@ human, walking/running across)1 ~ 150m (@ human, climbing/squatting across)
Distance Resolution	1.5m
Coverage Range	0.5~7000m2
Detection Accuracy	99%
Radar Charactics
Radar Detection	distance, direction, angle
Transmitting Frequency	24.05~24.15GHz
Angle Accuracy	±1°
Refresh Rate	8Hz
Distance Accuracy	±0.75m
Angle Range	Azimuth:20° Elevation:13°
Power Supply	8W(20dBm)
Working Temperature	-40~75ºC
Hardware Charactics
Communication Interface	RJ45,RS485,Relay_out*2,IO_out*2,IO_in,LED
Installation Height	Suggest Radar 3 Meters Around
Protection Class	IP66
Certification	RoHS,SRRC, Anti-explosion

Solution 1:
We are providing you complete system, including radar, camera and management software.
Solution 2:
We are providing you only the radar sensor/module, and radar protocol/ API for your 2nd development. Detailed Photos Popular ApplicationPerimeter radar application: for fense protection, livestock protection, residential perimeter, critical facility perimeter protection etc.Certifications
FAQ1 Q:Do you have any discount?
A:Yes, if you buy large QTY, please send us a email, we will give you a big discount.
2 Q:What's the delivery time?
A:According to the specification and quantity of your order, generally 7-10 days for normal
standard products within 50pcs.
3 Q:Do you have overseas distributor?
A:Yes,we have distributors in Korea, Singapore, Malaysia, UK and so on.
4 Q:Can we use our logo on the products?
A:Yes.We can provide OEM and sign a licensing agreement.
5 Q:Are you manufacturer or trading company?
A:We are manufacturer with 15 years of experience.Welcome to visit our company.
6 Q:Do you have any certification?
A:Yes,according to the different products,overpass CE, RoHS, ISO, Ex,Ul etc,we can offer certificates.
7 Q:How the stability of products?
A:3~5 years is ok in normal situation.
8 Q:What's the means of transport?
A:Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
