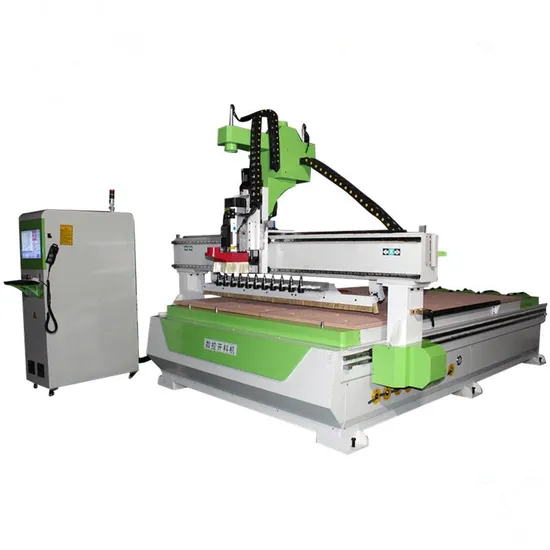

Woodworking CNC Router with Linear Atc Vacuumgd1325/2040

Product Description

Product Description
ATC Woodworking CNC Processing center
Advantage of ATC Woodworking CNC Processing center
1. The overall bed with steel seamless welding ,wearing strong, durable ,not easily deformed.Imported square guide rail and high precision ball screw, high precision,wear -resistant,smooth operation
2.Linear automatically tool changer system, tool change only takes more than ten seconds, you can save the tool change time, improve the production efficiency
3.Optional Taiwan LNC system, Intelligent processing cross-border protection functions to prevent the design area beyond, and the intelligent processing speed control function, you can adjust the processing speed, increasing the tool working life
4.T slot lathe structture and 6 separated vacuum adsorption table .assuring the high stability .can adsorb different size plates, more flat sheet
ATC Woodworking CNC Processing center technical parameters

Model	GD-1325A/GD-1325B
Working area	1300*2500mm
Table size	1740*3100mm
Z-axis working area	200-300mm(optional)
Resolution	+/- 0.01mm
Max Cutting Speed	70m/min
X and Y axis transmission	Germany Herion 1.5MRack and Pinion
Z-axis transmission	Germany TBI Ball Screw
Guide rail	Taiwan Hiwin 25mm Linear rail
Spindle	9.0KW, air-cooling
Working Mode	Japan yaskawa 750W Servo motor
XY Transmission	Imported Rack
Z transmission	Taiwan TBI Ball screw
Reudcer	Japan Shimpo
Auto Tool Change	Yes, Linear type
Dust-collection function	Yes
Working table	T slot Vacuum table 6 And T clamp combination
Air pump	7.5KW
Dust collector	4KW,double bags
Inverter	HPMANT 11KW
Software	Artcam
Command	G code, HPGL,U00, mmg, plt
Lathe Structure	Seamless welded steel, trapezoidal stable and strong lathe bed
Auto Lubrication	Yes
Operating System	Taiwan LNC Control System
Standard power	3P 380V,50Hz
Accessories	Cutting tools and knife clip Air pump 7.5KW Dust collector Software Spanner Manual Tool collimator Tool handle Rotary(Optional)
Package	Plywood case
Warranty for the spindle	Half a year
Warranty for the machine	One year
Delivery time	10 working days
Packing size	4.6*2*2.21m

ATC Woodworking CNC Processing center details
ATC Woodworking CNC Processing center samples
Our Services
1. Delivery and Lead time
Machine will be proper packed and loaded in container, as multiple loaded to save space or wooden carton sealed for better transportation.
Machine will be tidy and clean , with anti rusty oil brushed on mechanical parts to prevent rusty on sea transportation.
A series pictures and videos will provided as machine finished for help customer understand the performance of the machine.
2.Warranty:
Machine warranty is 12 months. Machine as normal using and maintenance condition, if get any problem, will provide spare parts for free. Out of warranty, will collect the accessories cost. Technical support for maintenance or fix on time and all the time.
3. Technical support:
Manual and video illustration of the machine will be provided
24 hours online by Ali Trademanager, Skype, Email, QQ, or telephone
Technical support by email, whatsapp, wechat,imo and skype available on time. 4.After sale service:
Normally the machine will sent on whole except the machine is over size to load container. so the machine arrange in production immediately after get electricity (air and water some model needed).
The video for operation will provide.
Training at our workshop or on site is available.After sale-service 5.We accept the ODM,OEM

If you have other needs, please let me know
