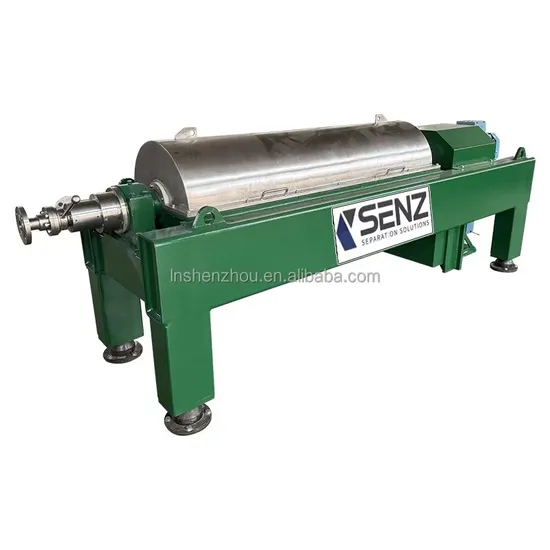

Lw Discharge Decanter Centrifuge Oil Filter PLC Touch Screen

Product Description

Product Introduction
LW application:
It is widely used in solid-liquid separation, dehydration,clarification and classification of suspension in chemical industry, light industry, environmental protection, pharmaceutical, food, oil mining and other industries.
LW Characteristic
1. Wide scope of application: For suspensions with solid mass content≤ 50%, liquid-solid volume concentration ≤ 75%, liquid-solid weight difference ≥0.05g/cm3, the equivalent diameter of solid particles ≥ 5μm can generally be separated, dehydrated, clarified and classified. When the difference between solid phase and liquid phase is large, the equivalent diameter of solid particles (≥2μm) can also be separated.
2.High degree of automation: the machine is continuous feeding, continuous discharging. Under the action of centrifugal force, solid particles are continuously pushed to the small end of the drum by helix, and the clarified liquid is continuously discharged from the large end overflow port along the spiral groove, thus realizing continuous automatic operation.
3.The machine has compact structure, small floor area and convenient installation and maintenance.
4.Convenient adjustment: The machine is equipped with advanced frequency converter. As a result, when compared with similar products, the machine has the advantages of low energy consumption and stepless adjustable working speed. The diameter of overflow plate and differential speed can be adjusted according to material properties.
Application
It is widely used in the production of chemical , printing, metallurgical coal mine, oil production, metallurgy ,iron and steel, fabric ,food, drink, pharmacy starch, dyes and so on, and it can also solve industrial and municipal wastewater. By use it, solid can be dehydrated, liquid can be clarified,such as:
Industrial wastewater treatment
Oil drilling mud separation
Dewatering of fish powder and fish meat
Dewatering of soybean and wheat protein
Clay mineral dewatering
Separation and purification for coal tar
Extraction of olive oil,palm oil and avocado oil
Extraction of fruit juice
Purification for animal and vegetable oil
Dyestuff and pigment dewatering
Main feature:
Two motor, two frequency inverter drive system, realize differential speed stepless regulation and energy return. Spiral stoker blades: Surfacing welding tungsten carbide grinding. Drum cone cylinder material outlet: Replaceable wear resistant, corrosion resistant ceramic alloy bushing. Main bearing: F-A-G Main sealing parts: Taiwan SOG, material is Nitrile butadiene rubber Electrical protection: overload, phase loss, torque protection Main and vice inverter use common DC bus, vice motor's function is generating electricity ( save electricity) PLC remote control. Structures and properties:
This machine is horizontal spiral discharging settling centrifuge, the main machine has a column-cone bowl, spiral stoker, differential system, bearing seat, base, cover, main motor,vice motor, and electric control chamber. With the high speed rotating of bowl, form strong centrifugal force, making the sludge dehydrate continuously in 24 hours a day.
The main motor through the triangle belt make the bowl rotating, through the planetary gear differential, make the vice motor and spiral differential speed different, realize sludge dewatering and pushing material function, That means differential rotating speed control and torque control. because containing solid rate of sludge may have wave motion, by differential speed control system is the guarantee for speed stability, achieve solid content in sludge is constant, the constant torque control make decanter load in a stable state, the separation effect and flocculation is the best state, so as to ensure the safe operation of the centrifuge.
This machine has good seal performance (guarantee without material leak in the process of operation), sludge dewatering work in full seal state, makes the environment clean.
This machine adopts the most advanced international special structural design, especially the spiral stoker, make the sludge concentration dehydration integration characteristics. It has better performance than ordinary centrifuge, more high capacity, better separation effect, save energy and manual work.
Technical Parameters:

Model	Diameter (mm)	Max. Speed (rpm)	Separation Factor	Capacity (M3/H)	Power (kw)	Weight (kg)	Overall Size (mm)
LW250×1000	250	5400	4080	2-10	11-15	1000	2600×760×1115
LW300×700	250	4600	3553	2-10	11-15	1120	2335×814×1170
LW300×1000	300	4600	3553	2-10	11-18.5	1380	2635×814×1170
LW350×1000	350	4200	3450	2-18	15-30	1950	2712×872×1244
LW350×1320	350	4200	3450	3-22	22-30	2200	3012×872×1244
LW350×1550	350	4200	3450	2-18	15-30	1950	2800×1380×850
LW430×1320	430	4000	3845	4-28	22-37	2500	3120×940×1320
LW430×1600	430	4000	3845	4-28	22-37	2500	3000×1500×1000
LW430×1800	430	4000	3845	4-28	22-37	2950	3600×940×1320
LW480×1800	480	3650	3580	6-35	37-45	4550	3650×1010×1396
LW480×2000	480	3650	3580	8-40	45-55	5050	3850×1010×1396
LW500×2000	500	3500	3423	8-40	45-55	5800	4150×1380×1558
LW530×2120	530	3500	3630	10-50	45-75	7200	4270×1380×1558
LW530×2200	530	3500	3630	10-50	45-75	7200	3800×2350×1200
LW580×2120	580	3000	29180	12-55	55-75	7800	4290×1450×1638
LW650×2400	650	2800	29180	15-60	75-90	8300	4330×1560×1768

Application:
Food Industrial
1. water treatment 2. Food industrial 3. Soybean protein 4. Vegetable oil
Chemical Industrial
1. Petroleum and coal chemical industry
2. Wasted oil recycle
3. Plastics recycling
Water treatment
1. Oilfield
2. Mining
3. kitchen garbage Our Service
Pre-Sales Service
1.Product consulting and design service.
2. professional production team.
3.Modernize Factory. Sale Service
1.Quality Control Service. 2.Report, video data of the production
3.inspection process to our customer to ensure the delivery time.
Transportation and packaging
Company Profile
FAQ
Q1: Where can I get product & price information?
A1: Send us inquiry or email directly, then we will contact you.
Q2: How can I make sure your machinery is suitable for me?
A2: Please tell all the separation information you know, such as your raw liquid,
two-phase or three-phase separation, solid content in liquid, solid size, the purpose, etc. After analyzing your information, we will to choose a suitable model for you, and send the details and videos to you.
Q3: What should I do if I want to see the separation effect?
A3: If you can come to our factory with the raw liquid, we will provide test service. Or you deliver the raw liquid to us, and we will do a test, and supply you the testing videos.
Q4: How to enjoy the OEM services?
A4: As the manufacturer of the machine, we will try our best to satisfy you if you have any specific requirement, such as the cover device, drum size, motor voltage, etc.
