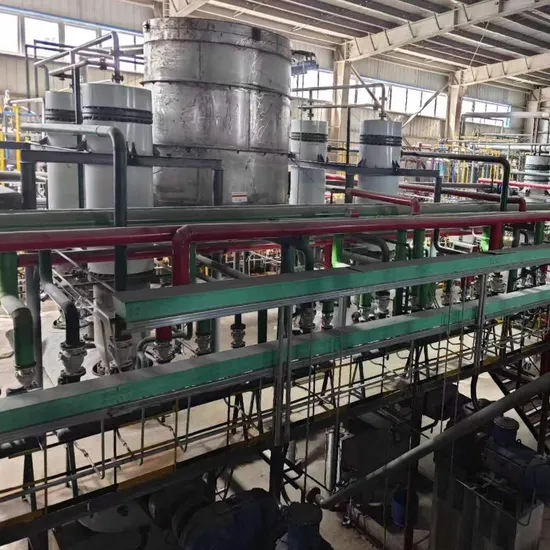

20000 Tons HPMC Production Line HPMC Plant

Product Description

What's Hydroxy Propyl Methyl Cellulose HPMC Production Line? Product Description
HPMC Production Line is for making Hydroxy Propyl Methyl Cellulose (HPMC), HPMC are widely used in construction, pharmaceutical,food, cosmetic, detergent, paints, as thickener, emulsifier, film-former, binder, dispersing agent, protective colloids.
HPMC-Hydroxypropyl Methyl Cellulose and Methyl Hydroxyethyl Cellulose and non-ionic cellulose ether made by natural high polymer cellulose as raw material and series of chemical processing. They are odorless, tasteless and non-toxic white powder, which can be dissolved in cold water to form a transparent viscous solution. Processing thickening, binding, dispersing, emulsifying, film, coating, suspending, absorbing, gelling, surface activity, water maintaining and protective colloid properties.
HPMC Production Line Working Principle

Material through Belt conveying machine sent to (in belt sent material of while for metal detection, prevent material in the entrainment metal debris) plus hopper Hou quickly is high-speed air with into dynamic knife ,high-speed rotating of rotor led dynamic knife by produced of powerful ,and full dispersed reached Super fine cut crushed of effect, qualified material through sieve network discharge area,unqualified material will be grinded ; To reach the required fineness of the materials and production, you can replace the screen, adjust the cutter clearance or different numbers of knives.
HPMC Production Line Mainly Consists of 13 Parts:
1. Crushing system
2. Cotton storage warehouse
3. Measuring warehouse
4. Etherification system
5. Drying system
6. Finished product packaging system
7. Public Utilities
8. Tank farm facilities
9. Heating system
10. DCS system
11. Sewage treatment system
12. Engineering installation and pipe fittings
13. Fire Fighting System
Product Parameters

No.	Case	Date
1	HPMC plant in Russia for 10,000MTPA	In 2016 year
2	EPC project of HPMC in Egypt for 60,000MTPA&100,00MTPA	In 2015 Year
3	Overhaul the furnace in Indonesia	In 2011 year
4	The project of HPMC for 40,000MTPA	In 2010 year
5	Main equipment supplier of HPMC in India for 20,000MTPA	In 2018 year
6	The EPC porject os HPMC in Indonesia for 10,000MTPA	In 2008 year
7	The contractor of HPMC in Phipilippines for 10,0000MTPA	In 2006 year

Technical Indicators of HPMC

Indicator Name	Technology Require
Hydroxypropyl content (%)	4-12
Methoxy (%)	19-30
Moisture (%)	<=5
PH value (25ºC)	5-8.5
Viscosity (1%) mPa·S	40000~200000

Detailed Photos
Packaging & Shipping
Seaworthy packing:
1. Common package
2. Plywood pallet
3. Plywood case
4. According to customer requirements.
