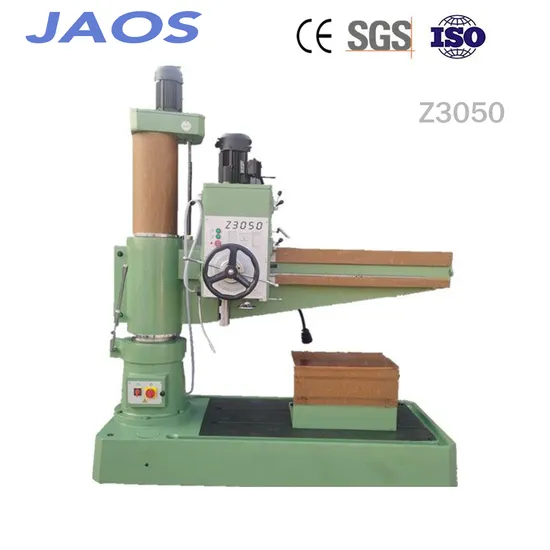

Radial Drill Machine Z3050 Radial Arm Drill for Metal Drilling Tapping
| US$4,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Z3050
Structure
Radial Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Precision
Certification
GS, CE, ISO 9001
Condition
New
Rocker Arm Rotation Angle
360
Horizontal Moving Distance of Spindle Bo
1250mm
Spindle Feed
0.10/0.16/0.22/0.25/0.35/0.56
Maximum Allowable Resistance of The Spin
16000n
Main Motor Power
4kw
Lifting Motor Power
1.5kw
Machine Weight
2000kg
Overall Dimensions
2170*950*2450
Transport Package
Export Wooden Cases
Specification
2170*950*2450
Trademark
JAOS
Origin
Shandong, China
Product Description
Product DescriptionProduct Parameters
Z3032X10 :
The main parameters | Z3032× 10 | Z3032×10 (Automatic tool movement) |
| Maximum drilling diameter (mm) | 32 | 32 |
Spindle taper | 4 Mohs No. 4 | 4 Mohs No. 4 |
Spindle speed stages | 6 | 6 |
Spindle speed range | 108-1000 | 108-1000 |
| Spindle lifting speed (r/min) | 1.21 | 1.21 |
Rocker arm rotation angle | 360° | 360° |
| Maximum allowable torque of the spindle (Nm) | 200 | 200 |
| Spindle feed (3 levels) | 0.10 0.16 0.25 | |
| Maximum feed allowed for the spindle (N) | 5300 | 5300 |
| Main motor power (kw) | 1.5/2.2 | 1.5/2.2 |
| Rocker arm lifting motor (kw) | 0.55 | 0.55 |
| Machine weight (kg) | 950 | 1000 |
Note: Cooling water pump is only available for Z3032 × 10 model (motor power: 0.24kw) | ||
Z3040X10
The main parameters | unit | Z3040 × 10 Single Column | Z3040 × 10 double column |
Maximum drilling diameter | mm | 35/40 (steel/casting) | 35/40 (steel/casting) |
| Distance from spindle centerline to column generatrix (minimum-maximum) | Mm | 300-880 | 310-900 |
| Distance from spindle end to base table (minimum - maximum) | Mm | 230-1120 | 170-1080 |
Spindle travel | mm | 200 | 280 |
Spindle taper | MT.4 | MT.4 | |
Spindle speed stages | Level | 12 | 12 |
Spindle speed range | r/min | 34-1220 | 34-1220 |
Spindle lifting speed | r/min | 1.3 | 1.3 |
Rocker arm rotation angle | ° | 360±180° | 360±180° |
Horizontal moving distance of spindle box | Mm | 580 | 600 |
Spindle feed | 3 Level 3 | 0.10 0.16 0.25 | 0.10 0.16 0.25 |
Maximum allowable resistance of the spindle | N | 6300 | 6300 |
main motor power | kw | 1.5/2.2 | 1.5/2.2 |
Lifting motor power | kw | 1.1 | 1.1 |
Machine weight | Kg | 800 | 1150 |
| Overall dimensions (length*width*height) | Mm | 1450*690*2200 | 1500*700*2200 |
Z3040× 13 :
The main parameters | unit | Z3040×13 Radial Drilling Machine |
Maximum drilling diameter | mm | 35/40 (steel/casting) |
| Distance from spindle centerline to column generatrix (minimum - maximum) | Mm | 320-1170 |
| Distance from spindle end to base table (minimum-maximum) | Mm | 300-1100 |
Spindle travel | mm | 200 |
Spindle taper | MT.4 | |
Spindle speed stages | Level | 12 |
Spindle speed range | r/min | 34-1220 |
Spindle lifting speed | r/min | 1.3 |
Rocker arm rotation angle | ° | 360±180° |
Horizontal moving distance of spindle box | Mm | 850 |
Spindle feed | 3 Level 3 | 0.10 0.16 0.25 |
Maximum allowable resistance of the spindle | N | 6300 |
main motor power | kw | 1.5/2.2 |
Lifting motor power | kw | 1.1 |
Machine weight | Kg | 1500 |
| Overall dimensions (length*width*height) | Mm | 1850*800*2350 |
Z3045× 13 :
The main parameters | unit | Z3045× 13 Radial Drilling Machine |
Maximum drilling diameter | mm | 40/45 (steel/casting) |
| Distance from spindle centerline to column generatrix (minimum - maximum) | Mm | 320-1120 |
| Distance from spindle end to base table (minimum-maximum) | Mm | 235-1100 |
Spindle travel | mm | 280 |
Spindle taper | MT.4 | |
Spindle speed stages | Level | 12 |
Spindle speed range | r/min | 22-1400 |
Spindle lifting speed | r/min | 1.3 |
Rocker arm rotation angle | ° | 360±180° |
Horizontal moving distance of spindle box | Mm | 850 |
Spindle feed | Level 3 | 0.10 0.16 0.25 |
Maximum allowable resistance of the spindle | N | 6300 |
main motor power | kw | 3 |
Lifting motor power | kw | 1.1 |
Machine weight | Kg | 1600 |
| Overall dimensions (length*width*height) | Mm | 1850*800*2350 |
Z3050× 16 :
The main parameters | unit | Z3050×16 Radial Drilling Machine |
Maximum drilling diameter | mm | 48/50 (steel/casting) |
| (Distance from spindle centerline to column generatrix (minimum - maximum) | Mm | 360-1600 |
| Distance from spindle end to base table (minimum-maximum) | Mm | 300-1150 |
Spindle travel | mm | 220 |
Spindle taper | MT.5 | |
Spindle speed stages | Level | 6 |
Spindle speed range | r/min | 78.135.240.350.590.1100 |
Spindle lifting speed | r/min | 1.3 |
Rocker arm rotation angle | ° | 360 |
Horizontal moving distance of spindle box | Mm | 1250 |
Spindle feed | 6 Level 6 | 0.10/0.16/0.22/0.25/0.35/0.56 |
Maximum allowable resistance of the spindle | N | 16000 |
main motor power | kw | 4 |
Lifting motor power | kw | 1.5 |
Machine weight | Kg | 2000 |
| Overall dimensions (length*width*height) | Mm | 2170*950*2450 |
Z3063× 16/20 :
The main parameters | unit | Z3063× 16/20 Radial Drilling Machine |
Maximum drilling diameter | mm | 50/63 (steel/casting) |
| Distance from spindle centerline to column generatrix (minimum - maximum) | Mm | 360-1600/1900 |
| Distance from spindle end to base table (minimum-maximum) | Mm | 300-1050/1150 |
Spindle travel | mm | 315 |
Spindle taper | MT.5 | |
Spindle speed stages | Level | 12 |
Spindle speed range | r/min | 34.47.66.90.130.180.240.340.4 70.650.930.1280 |
Spindle lifting speed | r/min | 1.3 |
Rocker arm rotation angle | ° | 360 |
Horizontal moving distance of spindle box | Mm | 1250/1650 |
Spindle feed | 6 Level 6 | 0.10/0.16/0.22/0.25/0.35/0.56 |
Maximum allowable resistance of the spindle | N | 16000 |
main motor power | kw | 4/5.5 |
Lifting motor power | kw | 1.5 |
Machine weight | Kg | 2200/2600 |
| Overall dimensions (length*width*height) | Mm | 2170*950*2450 2570*1000(2550 |
Detailed Photos
Packaging & Shipping
FAQ
