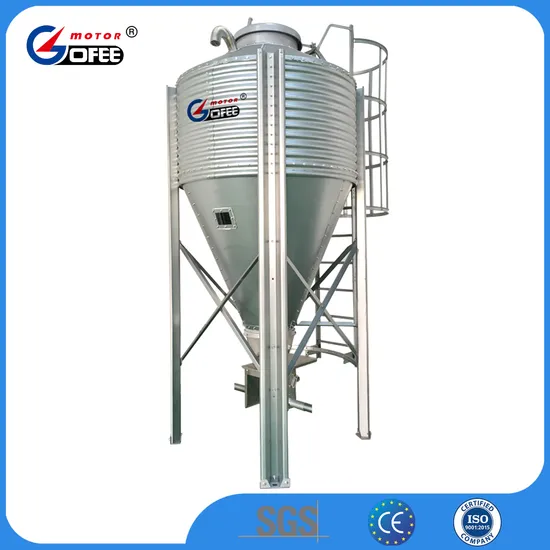

Poultry House Feed Silo Agricultural Machinery Silo

Product Description

Poultry House Feed Silo Agricultural Machinery Silo
Details
1. 275g/m2 two-sided galvanized sheet with the features of high intensity, anti-corrosion, long service life and easy to install.
2. 3 different specifications and 9 model numbers can meet the different feed storage requirements.
3. Special top cover opener design, easy to operate in windy weather.
4. Special designed brim on the joint of hopper body and hopper panel and seal strip between panel sheets can prevent rainwater entering the silo to cause moldy.
5. Special designed hopper panel can avoid feed piling up.
Equipped ladder and window are convenient for maintaining the equipment and checking feed condition.
6. Different boot and outlet can fulfill complex feed conveying requirements.
7.Customized pneumatic feeding system.
Parameter

Item	Specification	Stand	Silo Weight kg	Diameter mm	Height mm
1	2.7m3/Φ1530/1.7T	4	238	1530	3800
2	4.1m3/Φ1530/2.7T	4	282		4616
3	6.4m3/Φ2140/3.6T	4	370	2140	4705
4	9.3m3/Φ2140/5.4T	4	434		5521
5	12.2m3/Φ2140/7.3T	4	495		6337
6	15.8m3/Φ2750/10.5T	6	637	2750	5716
7	20.6m3/Φ2750/13.8T	6	730		6532
8	25.5m3/Φ2750/17.1T	6	820		7348
9	32.1m3/Φ3669/22T	8	1082	3669	6780
10	40.6m3/Φ3669/27T	8	1221		7596
11	49.1m3/Φ3669/32T	8	1360		8412

COMPANY INTRODUCTION
Heze Gofee Motor Co., Ltd. Established in 2008, It is a exhaust fan manufacturer specializing in cooling pad,poultry equipment,evaporative cooling pad,industrial exhaust fan,ventilation fan,axial fan, under the brand name of "GOFEE".
There are 200 staff members and 20 engineers. Annual production capacity is averagley 50,000 sets exhaust fans, 200,000 sets of motors, 20,000 cubic metre of cooling pad per year.
In October, 2016, new factory with 20000 s.q.m was put into use. Our product range from glassfibre variable speed/fixed speed cone fan, roof fan, cooling pad, air inlet, electrical controller, climate controlling equipment, voltage or speed adjusting motor for fan, disassembly/wholly assembled speed reducer, standard high efficient motor, glassfiber FRP tower, glassfiber product, etc.
New factory is equipped with fan shell mould shaping machine, auto fan assembly line, auto motor production line, large pressure equipment, wind tunnel test lab as per AMCA, motor test system, terminal test system, cooling pad production system, and etc. The equipment are highly automated with high precision. Production and test process are strictly controlled to guarantee gofee product in high quality and consistence. We own a technical research center and have a team of talented technical designers and engineers, focus on bettering climate control solution. We have been certified by ISO9001, CCC, CE, SGS and passed BESS LAB Certification.
We obedience " Zero defect, zero complaints" as the quality objective. And we stick to the principle of " Quality first, service first" and continuously improve our production to meet the customers' needs. We're pleased to get your Inquiry and we will reply and serve you quickly.
