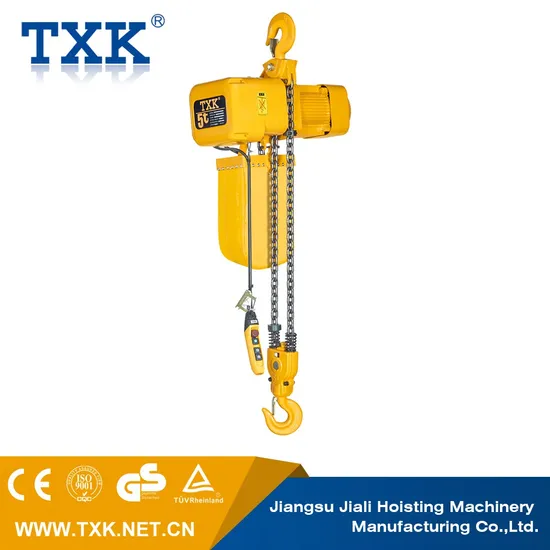

Txk 5 Ton Electric Chain Hoist with Manual or Electric Trolley

Product Description

Model: SSDHL05-02M With Hook
Capacity(ton): 5
Lifting Speed(m/min):2.7
Power (Kw): 3.0
Phases: 3
Voltage: 220V-690V
Chain Diameter (mm): 11.2
Chain Strips (piece): 02
Details of products:
1. Electric motor partial outer cover
They are made of high strength aluminum system through compression casting formation.
Advatages: Solid and light
Fast release heat
Continuous use
Enclosed structure
Can be used in the chemical plants, electroplating factories, and other places.
2. Side kind braking
This masterly structure ensure the hoist absolutly safety when the power off. And ensures it is safe when has excess load. Also it combine to the motor braking as the double brake system to strengthen security and durability.
3. Gear
The gear made of alloy steel and through the heat treatment
4. Antiphase protector
Advatages: When power-supply wiring mistake, the control circuit is unable to move.
5. Hooks
They are made by hot forging and heat treatment.
6. Chain
It is made of FEC80 ultra strong heat treatment alloy steel.
Advatages: It is safely approximately when used in the rain water, the sea water, under the chemical and other bad conditions.
7. ISO: M4 /FEM: 1AM
Insulation grade: F
8. Protection class (hosit and push button): IP54
9. Powder supply: 3 phase, 200-600V, 50Hz
10. Noise (single/ double speed): 81dB.

Model	05-02
Capacity (t)	5
Lifting speed (m/min)	2.7
Motor power (kw)	3.0
Rotation speed (r/min)	1440
Insulation grade	F
Power supply	3P 220V - 690V
Control voltage	24V/36V/48V
No. of chain	2
Spec. of load chain	11.2
Net weight	184

FAQ
Q: What is MOQ?
A: MOQ can be 1 set

Q: How about your payment terms?
A: We accept T/T and L/C at sight

Q: What is the sample policy?
A: We can send you 1pcs sample for your test, but you need to pay the fees

Q: What is your after sales service?
A: We have engineers to fix any problem about TXK Hoists sold overseas.

Q: What about warranty?
A: We supply 1 year warranty for electric part and 2 years for mechanical part.

Q: Do you support OEM service?
A: Yes
