US$15,000.00-17,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Milling Cutter Type
Angle Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Certification
CE, RoHS, ISO 9001
Max Rotary Angle
45 Degree
Transport Package
Wood Case
Specification
CE ISO9001 RoHS
Production Capacity
200 PC/Month
Packaging & Delivery
Package Size
1900.00cm * 1800.00cm * 2100.00cm
Package Gross Weight
2050.000kg
Product Description
Product Description

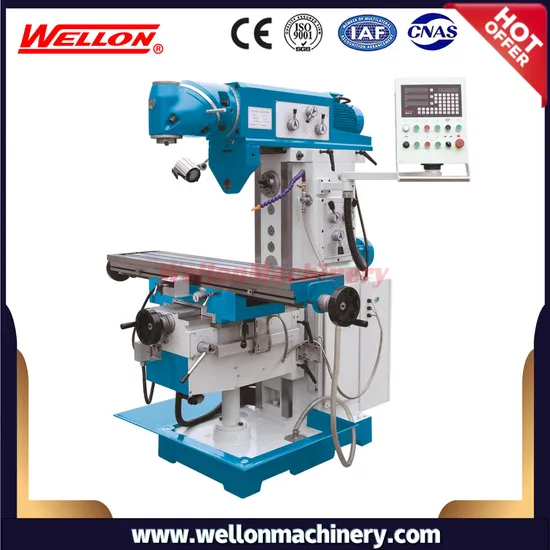

Cheaper Knee Type Universal Milling Machine X6432
Detailed Photos
Product Parameters
Performence Features:
1. XQ6432 features X Y Z auto feed by Servo Motor.
2. Universal swivel head can mill any angle surface through front half-sphere.
3. Horizontal spindle with large speed range, suitable for low-speed heavy load process and high-speed precision
process.
4. 3-axis Digital Readout, Rotary table, Protective cover are available.
Technical parameter:
Description | UNIT | XQ6432C |
Table size | mm | 1370*320 |
X/Y/Z travel | mm | 1000*360*400 |
Max rotary angle of table | ° | ±45°(Optional ) |
Max table weight | Kg | 300 |
T-slots(NO./width/pitch) | mm | 3*14*80 |
Shaft speed series and range | rpm | V 45-1660(11steps) H 35-1500 (12steps) |
arm | mm | 460 |
distance between spindle center line -table | mm | 75-475 |
distance between spindle nose - table surface | | 260-660 |
distance between spindle nose and arm | mm | 180 |
Spindle taper | | 7:24 IS040, |
table rapid speed(X/Y/Z) | MM | 1335,1335,1000 |
Table feed(X/Y/Z) | mm | X,Y:30-830 (8 steps) Z:23-625 (8 steps) |
Main motor power | KW | V:3kw H:3kw |
Feed motor | KW | 3 axes using a 15N.m servo motor,auto feed and change speeds variably |
Dimensions | mm | 1900*1750*1900 |
Machine weight | kg | 1950 |
Standard accessories:
Draw bar |
Mill arbors |
Coolant device |
Coolant tray |
Universal mill head |
Automatic central lubrication |
Tools |
Mill chuck set |
Optional accessories:
3-axis digital readout
Mill chuck set
Machine vice
Horizontal & vertical rotary table
Clamping kit set 58-pcs
Universal dividing head F11-125A
Swivel worktable
