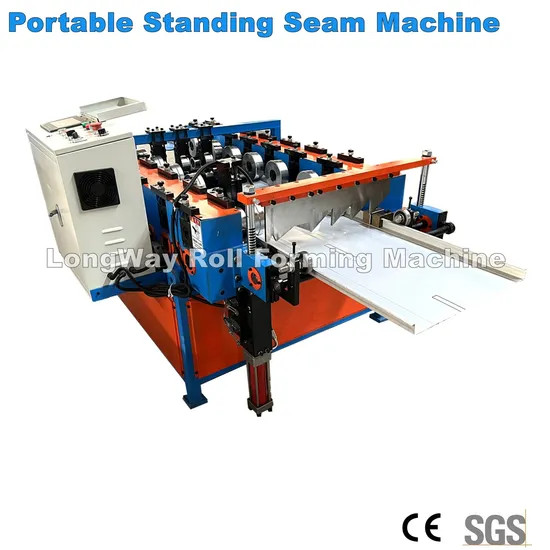

Portable Clip Lock Snap Lock Standing Seam Roofing Sheet Roll Forming Machine with Electrical Lock Seamer
The Standing Seam Metal Roofing Panel Roll Forming Machine is a versatile and highly efficient tool designed for both workshop and on-site operations. Its portability and user-friendly design make it an ideal choice for producing high-quality standing seam metal roofing panels. Below are its key functions and features:
Roll Forming Standing Seam Panels: The machine is specifically designed to form standing seam metal roofing panels, which are widely used in construction for their durability and weather resistance.
On-Site and Workshop Use: Its fully mobile design allows it to be used both in workshops and directly at construction sites, providing flexibility and convenience.
Precision Cutting: Equipped with a guillotine shear, the machine ensures clean, burr-free cuts without distorting the panels, resulting in high-quality finished products.
Portability: The machine is lightweight and features two castors mounted on the frame, making it easy to transport and maneuver. This reduces freight costs and enhances operational efficiency.
User-Friendly Design: All functions and adjustments are positioned on one side of the machine, simplifying operation and reducing setup time.
Detailed Photos
Max Feeding width: 600mm,coil ID range ф460-520mmCapacity: 2 Tons
Hydarulic type as option
The feeding guide device at the main entrance of the machine during work,Raw materials enter into the machine by the guiding device,make the raw materials and roll forming system to maintain the correct position.The guiding position can be adjusted by the manual screw mechanism,and the feeding guide width can be adjusted independently
Forming mold: 45# steel, through vacuum quenching heat treatment to HRC60-62 ° The precision machining roller surface with CNC latheShafts material:45# steel,CNC lathes,Heat Treatment,hard Chrome CoatedWith thickness 0.04mm,surface with mirror treatment(for longer life and anti-rust)Main motor and 12 reducers combination driving,about 8 Step to formMain Motor 3kw,Frequency speed control
Cutting And Punching DeviceCutter stype:Not stop cutting and punching
The length of tolerance:±1.0mm(3m)
Cutter motor:Hydraulic
Motor power:3 KW
Control The Quantity And Cutting Length AutomaticallyInput The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen ,It Can Finish The Production Automatically.
Product Parameters
Working Process
Uncoiling → Feeding material into machine →Roll forming → cutting →Products receiving table

Raw Material	Coil Type	GI AL
	Width	As profile design
	Thickness range	0.3-0.6mm
Power Requirement	Voltage	380v/3ph/50hz(Customized)
	Main Motor power	4kw
	Cutter power	3kw
Forming speed		8-15m/min
Machine Frame		300mm H Beam Structure
Thickness of structure		Casting steel
Forming shaft		70mm solid shaft with heat treatment
Material Of Rollers		Gcr15
Forming stations		8 Rows
Transmission Way		Chain
Type of cutting		Hydraulic Pillar type
Control system		PLC Delta and Inverter Delta
Screen		Touch screen
Dimension(Approx)		4m×1.5m×1.2m
Total weight (Approx)		2.6T

Installation Instructions
Applications of Portable Clip Lock Snap Lock Standing Seam Roofing Sheet Roll Forming Machine with Electrical Lock Seamer On-Site Roofing Panel Production:
The machine is ideal for on-site fabrication of standing seam metal roofing panels, allowing for immediate installation and reducing transportation costs for pre-made panels.
Workshop Manufacturing:
It is also used in workshops to produce high-quality standing seam panels for various construction projects, ensuring precision and consistency.
Roof Renovation and Repair:
Its portability makes it suitable for renovation and repair projects, enabling the production of custom-sized panels directly at the job site.
Custom Panel Fabrication:
The machine can produce panels of different lengths and specifications, catering to unique architectural designs and project requirements.
Cost-Effective Roofing Solutions:
By eliminating the need for pre-made panels and reducing material waste, the machine offers a cost-effective solution for roofing projects.
Company Profile
Packaging & Shipping
Anti-Corrosion Protection: Spraying anti-corrosive oil on rollers to prevent oxidation during shipping, ensuring long-lasting performance.
Oxidation Prevention: Wrapping the entire machine with isolation film to safeguard against oxidation during transit.
Cost-Effective Shipping: Optimized space planning to minimize transportation costs for customers.
Secure Transit: Properly fixed and secured to prevent any damage during transportation, ensuring the machine arrives in perfect condition.
