on-Time Delivery Industrial Plastic Rubber Hot Refining

Product Description

Our company mainly produces open rubber mixing machines, rolling machines, film cooling lines, flat vulcanizing machines, automatic rubber mixing lines, recycled rubber equipment and their accessories, If you have any needs in this regard, feel free to leave me a message at any time.
Detailed Photos

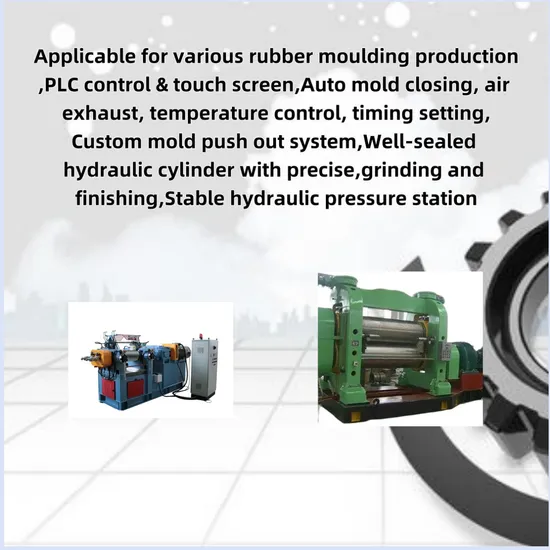

Applicable for various rubber moulding production,PLC control & touch screen,Auto mold closing, air exhaust, temperature control, timing setting,Custom mold push out system,Well-sealed hydraulic cylinder with precise,grinding and finishing,Stable hydraulic pressure station
Rubber calender usually consists of two or more rollers arranged in a certain form, which will rotate relative to each other under power drive. In general, there is a certain speed ratio between adjacent rollers, such as the speed of one roller is faster than that of another roller, which can make the rubber material be better squeezed and shear between the rollers. When the machine is started, the raw glue or compound is placed between or above the two rollers, and the compound is pulled into the gap between the two rollers due to the friction generated by the rotation of the rollers.After the rubber material enters the roll gap, it will be subjected to strong shear and extrusion action. The linear speed difference between the two rollers causes the rubber material to suffer uneven force between the roller gaps, resulting in a shearing effect, which cuts the macromolecular chain of the rubber material like scissors. At the same time, the molecular structure of the compound changes due to the extrusion of the roller, and the constant change of the gap also causes the compound to be repeatedly squeezed and stretched. With the continuous rotation of the roller, the extrusion pressure of the rubber material in the roll gap gradually increases. The section of the roll gap is gradually reduced, so that the rubber material is subjected to strong extrusion and shear. In this process, on the one hand, the adhesive material has viscous flow and constantly expands and deforms; On the other hand, elastic deformation can occur. These two deformation processes are closely related to the fluidity and viscoelasticity of the compound. After the extrusion and shearing action of the roller, the rubber raw material is rolled and formed. According to different production needs, the film can be made with a certain thickness and width, or the rubber material can be squeezed on the skeleton material such as textile and steel cord to complete the hanging operation, and the operation of the rubber embryo pressing and the lamination of multi-layer film can also be carried out Machine Feature
1.The cylinder ( piston ) adopts the best seals structure , with reasonable design and reliable function. The seals part is good quality YX typepolyurethane seals (not rubber seal ) ,which is oil resistant , aging resistant .Our machine adopts the double seals structure , and seals part is easy change and protect
2.Automatic control : automatic mold closing , automatic exhausting , automatic heating and keep stable temperature, automatically timing for vulcanization , automatic alarming , automatic mold opening ,etc
3..The vulcanizing temperature can be set and showed in the digital displan .
4.Vulcanizing time can be set in the PLC screen . If you want to heat and vulcanize for 1 minutes , just set it directly . When it reaches 1minutes ,machine will alarm then machine will open the mold automatically
5.Pillar is made of high quality # 45 steel, The hardness , wear resistance and abrasive resistance is high improved by quenching and tempering
6.The top beam and bottom plate form is welded with the good quality Q-235A ductile iron .After welding , it is also processed by the artificial vibration or high temperature aging treatment , to eliminate the internal stress and avoid the deformation
7.plunger is made of LG-P cold hard alloy steel . Surface of it owns high hardness and wear resistant.Depth of chilled layer is 8-15mm , hardness is HRC 60-70 , making the plunger own long life time
Product Parameters

Model ltem	XY-3Φ252*720	XY-3Φ360*1120	XY-3Φ450*1500	XY-3Φ550*1500	XY-3Φ610*1730	XY-3Φ710*2130	XY-3Φ810*2430
(m/min) Linear speed of front rollers	1.2-12	3~20.2	2.5-26	3~30	5.4~54	8-50	4-40
Speed ratio of front and rear roller	1:1:1	1:1:1	1:1:1	1:1:1	1:1:1	1:1:1	1:1:1
Max product width(mm)	580	920	1250	1300	1500	1850	2150
Min product thickness(mm)	0.2	0.2	0.2	0.2	0.2	0.2	0.2
Motor power(kw)	22	45	75	110	160	185	132KW*3
Overall size L*W*H(mm)	3950*1720*1210	6500*1500*2440	7320*2200*2900	7550*2400*3800	7010*3950*3730	7650*4560*4080	11400*3200*5050
Weight(t)	-5.5	-14	-21	-35	-42	-67	-110

Model ltem	XY-3Φ252*720	XY-3Φ360*1120	XY-3Φ450*1500	XY-3Φ550*1500	XY-3Φ610*1730	XY-3Φ710*2130	XY-3Φ810*2430
(m/min) Linear speed of front rollers	1.2-12	3~20.2	2.5-26	3~30	5.4~54	8-50	4-40
Speed ratio of front and rear roller	1:1:1	1:1:1	1:1:1	1:1:1	1:1:1	1:1:1	1:1:1
Max product width(mm)	580	920	1250	1300	1500	1850	2150
Min product thickness(mm)	0.2	0.2	0.2	0.2	0.2	0.2	0.2
Motor power(kw)	22	45	75	110	160	185	132KW*3
Overall size L*W*H(mm)	3950*1720*1210	6500*1500*2440	7320*2200*2900	7550*2400*3800	7010*3950*3730	7650*4560*4080	11400*3200*5050
Weight(t)	-5.5	-14	-21	-35	-42	-67	-110

Model Item	XY-4Φ230*630	XY-4Φ360*1120	XY-4Φ400*1200	XY-4Φ450*1400	XY-4Φ610*1730	XY-4Φ700*1730	XY-4Φ710*2130
Working diameter of rollers(mm)	230	360	400	450	610	700	710
Working length of rollers(mm)	630	1120	1200	1400	1730	1850	2130
Speed ratio of front and rear roller	1:01:01	0.73:1:1:0.73	1:1.38:1.38:1	1:1.5:1.5:1	1:1.4:1.4:11:1.4:1.4:1.4	0.5-1 Adjustable	1:1.5:1.5:1
(m/min) Middle-roll linear speed	2.1-21	2-20.1	3-26.3	2.5-25	8-50	4-40	3-30
(mm) Adjusting nip range	0-10	0-10	0-10	0-10	20	0-30	0-20
Min product thickness(mm)	0.2	0.2	0.2	0.2	0.15	0.2	0.15
(mm) Production calendaring width	500	920	1200	1250	1500	1600	1900
(kw) Motor power	15	55	75	110	185	90KW*2110KW*2	220
Overall size L*W*H	3800*390*1890	3300*940*2350	6400*1620*2490	6500*1970*2740	6580*2460*2920	9950*3600*4870	7010*4150*3730
Weight(kg)	-4.8	-16	-20	-23	-50	-110	-100

Model Item	XY-4Φ230*630	XY-4Φ360*1120	XY-4Φ400*1200	XY-4Φ450*1400	XY-4Φ610*1730	XY-4Φ700*1730	XY-4Φ710*2130
Working diameter of rollers	230	360	400	450	610	700	710
Working length of rollers	630	1120	1200	1400	1730	1850	2130
Speed ratio of front and rear roller	1:01:01	0.73:1:1:0.73	1:1.38:1.38:1	1:1.5:1.5:1	1:1.4:1.4:11:1.4:1.4:1.4	0.5-1 Adjustable	1:1.5:1.5:1
Middle-roll linear speed	2.1-21	2-20.1	3-26.3	2.5-25	8-50	4-40	3-30
Adjusting nip range	0-10	0-10	0-10	0-10	20	0-30	0-20
Min product thickness(mm)	0.2	0.2	0.2	0.2	0.15	0.2	0.15
Production calendaring width	500	920	1200	1250	1500	1600	1900
Motor power	15	55	75	110	185	90KW*2110KW*2	220
Overall size L*W*H	3800*390*1890	3300*940*2350	6400*1620*2490	6500*1970*2740	6580*2460*2920	9950*3600*4870	7010*4150*3730
Weight(kg)	-4.8	-16	-20	-23	-50	-110	-100

Company Profile
The company has a series of advanced mechanical processing equipment, relying on high-quality service, advanced equipment and excellent technical strength, through continuous innovation and development, Qingdao Junlin machinery Co., Ltd has established a stable business relationship with many customers at domestic market & overseas market, and gradually established an image in similar factories.
The main products of my factory are: open mixing mill series, automatic refining devices series, rubber calender series, rubber sheet cooling line series, plate vulcanizing machine series, reclaimed rubber equipments series, rubber powder production equipment series as well. The company has been rated as high-tech enterprise, specialized in special new enterprises, and, the company have passed the ISO 9001:2015 quality management system, with a number of utility model patents and software Copyrights.Certifications
The company has a variety of products to meet different needs; Advanced technology to ensure high efficiency, stability and continuous innovation; Quality assurance, strict control and durable and reliable; Thoughtful service, pre-sales customized solutions, after-sales installation and debugging; Wide market coverage, good reputation.FAQ
Q1: Where is your factory located?
A1: Qingdao Junlin machine co.,Ltd is located at No. 9 Tangdao Bay Road, Huangdao district ,Qingdao city, China
Q2: Are you an integrated supplier for rubber machine ?
A2: Yes, we can provide the complete solution line to customer according to customer's requirement.
Q3: How about the quality control in your factory?
A3: Our company has the SOP (Standard Operation Procedure) and all the production step must follow up this SOP. Every machine needs at least automatic running over 72 hours and must be inspected carefully before shipment.
Q4: Will you offer the pre-sales service?
A4: Yes, we have an experienced pre-sales team to support customers not only including machine, technology also water .electrical, machine layout in factory, etc.
Q5: What about the after-service? Will you send your engineer to my country to help commission and install the machine?
A5: Surely, we have many experience technical engineers for oversea service, they would help you install machine and support training to workers also.
Q6: What is the delivery time of the machine?
A6: Actually, the delivery time of the machines are depended on the machines' options. Normally, the delivery time of standard machine could be within 30-45 days
Q7 : What is the warranty of the machine ?
A7: The whole machine's warranty period is 12 months and key parts will be depended.
Q8 : Do you provide any spare parts with machine?
A8: Yes, our company will provide one set standard spare parts to customer according to different machines.
