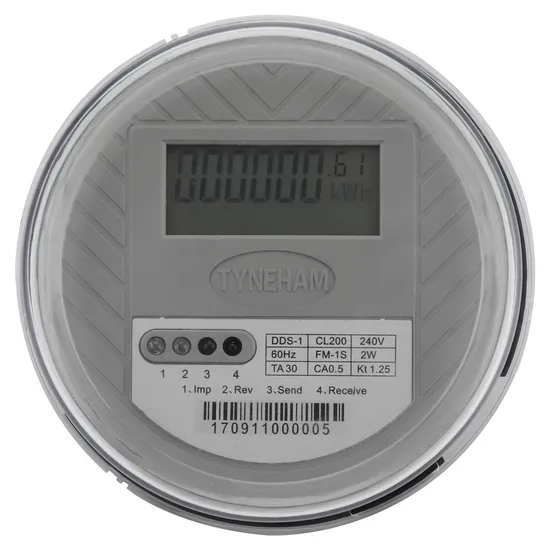

1 ANSI Single Phase Two Wire LCD Round Socket Kwh Meter 1s

Product Description

1
DDS-1L1S Information The DDS-1 series are socket mounted single phase electronic active energy meters. They adopt many advanced technologies of research and development, like microelectronic-techniques, specialized large-scale IC (integrated circuit), digital sampling and processing technology, SMT technique, and so on. Their technical performances completely conform to International Standards IEC 62053-21 for Class 1 single phase active energy meter and Standards ANSI C12.1, C12.10, C12.20. They can directly and accurately measure the load active energy consumption in the single phase two wire & three wire AC networks of rated frequency 50Hz or 60Hz and used indoors or outdoors. They have features with excellent long-term reliability, small volume, light weight, perfect appearance, easy installation, etc.

DDS-1L1S SPECIFICATIONS

1	Type	DDS-1L1S LCD Display
2	Accuracy	Class 1
3	Rated Voltage (Un)	240A Or Other
4	Base Current (lb)	10A, 30A Or Other
5	Max Current (Imax)	100A, 200A or other
6	Frequency (Hz)	50Hz Or 60Hz (±5%)
7	Starting Current (mA)	0.4% Ib
8	Power Consumption of Current	≤1W 10VA Per Phase
9	IP Class	IP54
10	AC Voltage Withstand	2KV for 1 Minute
11	Impulse Output Rate (Imp/kWh)	Kt1.25, Kt1.5 etc.
12	Operating Temperature	-20ºC To +55ºC
13	Storing Temperature	-40ºC To +70ºC
14	Operating Humidity	≤75%
15	Storing Humidity	≤95%
16	Communication	IR

*For special requirements, such as Anti tamper,RS485,IR etc.,it is to be discussed for settlement.
DDS-1L1S DIMENSION
WIRING DIAGRAM
APPEARANCE
DDS-1L1S Front Side Photo
DDS-1L1S Left Side Photo
DDS-1L1S Back Side Photo
DDS-1L1S Right Side Photo
DDS-1L1S Top Side Photo
DDS-1L1S Bottom Side Photo
