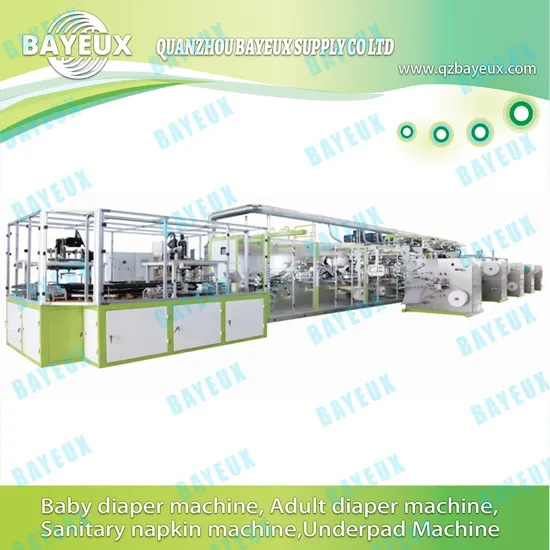

Economical High-Quality Semi Servo Adult Diaper Making Machine
Basic Info.
Model NO.
BYI200
Product Object
Adult
Designed Speed
200PCS/Min
Production Speed
150PCS/Min
Computer Control Panel
Computer Control Panel
Product Specification
Medium
Automatic Grade
Full Automatic
Certification
CE
Condition
New
Product Size
S,M,L,XL
Efficiency
>85%
Installation
300kw,Excluding Air Compressor,Glue Machine
Power Used
350kw
Power Supply
380V,50Hz
Air Compressor
0.6-0.8MPa
Wastage
<3%
Qualified Rate
>97%,Excluding Glue,Splice,Raw Jointer Defectives
Raw Materials
Fluff Pulp,Nonwoven,Sap,Adl,PE Film,Spandex,etc.
Machine Size
32m*10m*5m
Working Size
35m*5m*7m
Working Weight
90tons
Machine Color
White&Green,Can Be Designed as Customer′s Demand
Machine Direction
Face Machine From Left to Right(Fyi)
Transport Package
Export Standard
Specification
New Machine
Trademark
BAYEUX
Origin
China
HS Code
8441809000
Production Capacity
10
Product Description
| Design Speed | 200pcs/min |
| Stable Work Speed | 150pcs/min |
| Power Supply | 380V±5%,50HZ(3 phase,4lines,ground-in) |
| Installation | 300KW(excluding air compressor,glue machine) |
| Power Used | 350KW |
| Air Compressor | 0.6-0.8Mpa |
| Product weight Tolerance | ±5 |
| Qualified Rate | ≥97%(excluding glue,splice,raw jointer defectives) |
| Efficiency | ≥85% |
| Machine Size(L*W*H) | 32m*10m*5m |
| Working Size(L*W*H) | 35m*10m*7m |
| Machine Weight | 90Tons |
| Machine Color | White&Green(can be designed as customer's demand) |
| Machine Direction | Face the machine from left to right (can be designed as customer's demand) |
The driven system adopts servo driven,digital size change,to ensure run synchronously at full process. The safety system is equipped with safety guard for operating side,emergency stop switch,security identifier,safety pull wire an driven side.The packaging system is based on auto stacker to be defined by customers need(dual push dual exit),the stacking range:8-16 pcs/pack adjustable.The web guiding system realizes online adjustment of each key component without stopping, which helps to improve productivity.
This machine accepts customization, you can tell us your needs, we will design a product for you to meet your requirements, we provide you with products not only affordable, but also quality assurance, are certified by the quality before export.
Machine Features
Machine Production Workshop
Finished Products I shape baby diaper
