Pharmaceutical Chemical Food Industries Stainless Steel Coarse Spice Pulverizer Machine

Product Description

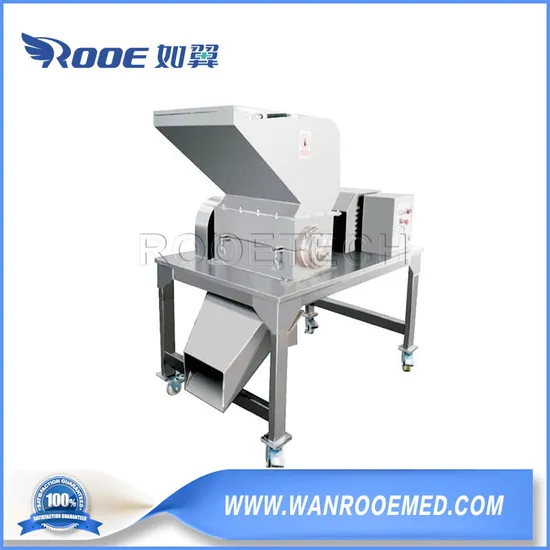

Pharmaceutical Chemical Food Industries Stainless Steel Coarse Spice Pulverizer Machine
Features:
Working principle:
The spice mill grinder consists of four parts: frame, motor, feed hopper and crushing mechanism. The material enters the crushing chamber directly through the feed hopper, and the purpose of crushing is achieved through the strong shear of the moving knife and the fixed knife rotating at medium speed. By adjusting the gap between the moving knife and the fixed knife, the size of the particle can be controlled. Through the control of the screen, the particles that meet the requirements will be discharged from the discharge port, while the materials that do not meet the requirements will continue to be cut and broken in the crushing chamber until the requirements are met.
The coarse crushing machine is suitable for supporting equipment before fine crushing in pharmaceutical, chemical, food and other industries, and has a good effect on most materials.
Suitable for primary mill. If you are looking for a spice mill, food mill, our coarse mill is perfect for you. 1. Stainless steel body
It is made of 304 or 316L stainless steel material. Stainless steel material is suitable for pharmaceutical, chemical and food.
2. Shaft
The shaft rotator is located at the top of the coarse crusher. The shaft rotates with the elbow plate to produce compression movement.
3. Set of blades
The coarse crusher has a set of fixed knives and movable knives to crush dry, coarse solid particles into fine powder.
4. Capacity
The production capacity of their equipment ranges from 50kg/hour to 1000kg/hour.
5. Filter
It can be adjusted for final size and also very easy to replace and clean.

Product Parameters

Model	Main dimensions(mm)				Production capacity(kg/h)	Feeding granularity(mm)	Discharging mesh numbers(mm)	Spindle rotation speed(rpm)	Total power(kw)	Weight(kg)
	(L)	(W)	(H)	Benchtop (H)
PNSC-200S	560	580	1200	900	50-200	≤100	0.5-20	650	3	220
PNSC-300S	560	680	1250	1000	80-300	≤100	0.5-20	650	4	300
PNSC-500S	560	780	1300	1100	100-500	≤100	0.5-20	650	5.5	420
PNSC-700S	560	880	1500	1300	120-700	≤100	0.5-20	650	7.5	580
PNSC-1000S	560	980	1700	1550	150-1000	≤100	0.5-20	650	11	750

Application Picture
