Shantui Brand-New Design Se215 Crawler Excavator with Great Discount

Product Description

Product Description

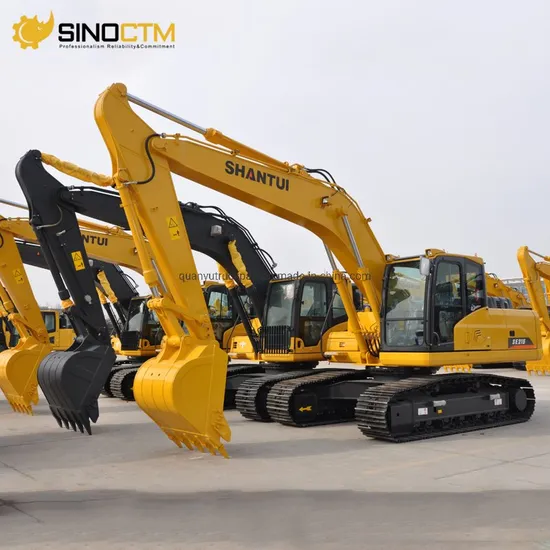

SHANTUI Machine Excavator 20.8 Ton Mining Excavator for Sale (SE215)
As the most shining star in SHANTUI excavator family, SE215 balances productivity with easy-to-use technology features, a new comfortable cab, reduced fuel consumption by up to 8%, and increased the productivity by up to 10% to bring you a durable, low-cost-per-hour excavator for light- to medium-duty applications.
Product Parameters

Model	SE135 (Standard version)	SE135W(engine version)	SE150 (Standard version)	SE215 (Standard version)
Overall dimensions
Overall length (mm)	7860	7860	7860	9625
Ground length (During transport) (mm)	4320	4320	4390	4915
Overall height (To the top of boom) (mm)	2800	2800	2860	3075
Overall width (mm)	2500	2500	2645	2800
Overall height (To top of cab) (mm)	2855	2855	2855	3055
Ground clearance of counterweight (mm)	915	915	915	1075
Minimum ground clearance (mm)	425	425	425	470
Tail turning radius (mm)	2380	2380	2380	2925
Track length (mm)	3645	3645	3645	4140
Track gauge (mm)	2000	2000	2000	2200
Track width (mm)	2500	2500	2500	2800
Standard track shoe width (mm)	500	500	500	600
Turntable width (mm)	2490	2490	2645	2725
Distance from slewing center to tail (mm)	2375	2375	2375	2920
Working range
Maximum digging height (mm)	8495	8495	8670	10095
Maximum dumping height (mm)	6060	6060	6210	7190
Maximum digging depth (mm)	5490	5490	5490	6490
Maximum vertical digging depth (mm)	4625	4625	4625	5915
Maximum digging distance (mm)	8300	8300	8325	9860
Maximum digging distance at ground level (mm)	8175	8175	8195	9675
Working device minimum turning radius (mm)	2445	2445	2395	2970
Maximum lifting height of bulldozer blade (mm)	-	-	-	-
Maximum digging depth of bulldozer blade (mm)	-	-	-	-
Engine
Model	QSF3.8T(China III)	WP4.1(China III)	QSF3.8T (China-III)	QSB7 (China-III)
Type	4-cylinder inline and water-cooled and turbocharged	Inline 4-cylinder, high pressure common rail, and water-cooled and turbocharged	4-cylinder, high pressure common rail, and water-cooled and turbocharged	6-cylinder, high pressure common rail, and water-cooled and turbocharged
Displacement (L)	3.76	3.76	3.76	6.7
Rated power (kW/rpm)	86/2200	92/2200	86/2200	124/2050
Hydraulic system
Type of hydraulic pump	Variable displacement duplex plunger pump	Variable displacement duplex plunger pump	Variable displacement duplex plunger pump	Variable displacement duplex plunger pump
Rated working flow (L/min)	2x130	2x130	2x130	2x213
Bucket
Bucket capacity (m³)	0.4~0.65(0.55)	0.4~0.65(0.55)	0.65	0.9
Swing system
Maximum swing speed (r/min)	11.3	11.3	11.3	11
Brake type	Mechanically applied and pressure released	Mechanically applied and pressure released	Mechanically applied and pressure released	Mechanically applied and pressure released
Digging force
Bucket arm digging force (KN)	70	70	70	135/146
Bucket digging force (KN)	97	97	97	99/107
Operating weight and ground pressure
Operating weight (kg)	13500	13500	14500	20800
Ground pressure (kPa)	41.5	41.5	43.8	47.5
Traveling system
Traveling motor	Axial variable displacement plunger motor	Axial variable displacement plunger motor	Axial variable displacement plunger motor	Axial variable displacement plunger motor
Traveling speed (km/h)	3.25/5.2	3.25/5.3	3.25/5.2	3.15/5.15
Traction force (KN)	118	118	118	214
Gradeability	70%(35°)	70%(35°)	70%(35°)	70%(35°)
Tank capacity
Fuel tank capacity (L)	220	245	220	330
Cooling system (L)	20	20	20	28
Engine oil capacity (L)	12	12	12	22
Hydraulic oil tank/system capacity (L)	177/205L	177/205L	177/205	270/400

Company Profile
Shantui Construction Machinery Co., Ltd., founded in 1980, was a national category I key enterprise integrating research & development, production and sales of main engine products and key components of earth moving machinery, pavement construction & compaction machinery, building machinery, hoisting machinery and other construction machinery series products.
Shantui owns a sound sales system and complete sales service network, and its products are sold all over the country and overseas in more than 150 countries and territories. At present, there are 26 Shantui monopolized stores and 150 marketing points. The international strategy is implemented stably; now, Shantui has 71 overseas Agents, as well as 10 overseas Subsidiaries in the United Arab Emirates, South Africa, Russia and Brazil. In the aspect of marketing service mode, it abides by the principle of "value leading and win-win service", introduces advanced concepts such as leading the industrial service promise, quality tracking and user care, provides solutions of whole set equipment construction for customers in time; and the humanized and punctual top-quality service help Shantui win customers' praise, thus enhancing brand value of the enterprise. Six Free Services Free technical enquiries with our experts.
Free repair service during warranty period.
Free special services for all key construction projects.
Free 0 hour service upon deliver of machine.
Free training of operators and repairs staff.
Free maintenance service tracking (customer to provide resources)
If Shantui machinery is in operation in key projects on a provincial level or higher, the customer will receive special services from Shantui (free special coating service, on-site service, extended on-site service). These special services will allow customers to work more freely without any worries.
Hot Sale Products
Packaging & Shipping

Detailed Photos

FAQ
Q1. What's your MOQ?
A1. One unit.
Q2. What is your terms of payment?
A2. T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of shipment?
A3. Generally, we ship our truck by ro-ro ship , bulk cargo vessel, container etc. spare parts are packed in wooden cases, shipped by containers
Q4. What is your terms of delivery?
A4. EXW, FOB, CFR, CIF
Q5. How about your delivery time?
A5. It will take 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q6. Do you test all your goods before delivery?
A6. Yes, we have 100% test before delivery

After Sales Service
