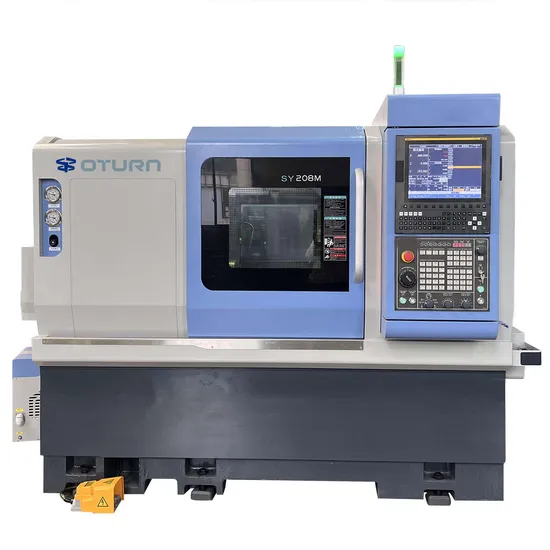

Oturncnc Professional Auto CNC Lathe Machine Manufacturer with OEM/ODM Service

Product Description

Product Description
The two-axis lathe can process both ends of the workpiece simultaneously in a single clamping. This significantly simplifies manual operations, boosts output, and minimizes the number of processes involved. The second spindle allows for complete turning and seamless workpiece transfer during machining, thereby cutting down cycle times. The machine boasts an optimized 30-degree inclined structure, ensuring high precision, super rigidity, and exceptional cutting stability. Constructed from a one-piece high-strength HT300 cast iron and utilizing finite element analysis, the lathe bed offers excellent mechanical rigidity and stability. It maintains long-term accuracy, enhances processing stability, extends tool life, and benefits from stress relief treatment for improved accuracy stability. The high-strength roller linear rail and screw pre-tension design enhance rigidity performance, while its simple and elegant appearance aligns with contemporary trends.
Main features of this machine tool:
1. Equipped with a direct drive synchronous electric spindle device, featuring a magnetic ring incremental encoder with sine and cosine positioning accuracy of 20 arc seconds and C-axis indexing accuracy of 40 arc seconds. This eliminates spindle vibration and ensures nose deflection accuracy within 0.002MM. It improves workpiece surface finish and has a rear-mounted rotor for faster installation and maintenance. The spindle motor includes a cooling system to manage thermal displacement, maintaining a constant operating temperature. The spindle system undergoes thorough dynamic balance testing for superior accuracy retention, high rigidity, and efficiency, allowing the machine to perform both finishing and rough machining, as well as heavy cutting. It's especially suited for mass production of complex shapes with high smoothness.
2. Features a high-rigidity integrated design servo power turret. This enhances the rapid and precise tool changing performance of the servo turret. When combined with the power milling of a high-speed power axis, it provides excellent turning and milling capabilities. The tool holder is mounted using a high-rigidity BMT installation interface, driven by a servo spindle motor.
3. The machine tool comes with roller linear guides and ball screws. These heat-treated and precision-ground ball screws ensure optimal accuracy and durability. Each axis uses a direct transfer axis structure and a double-anchor pre-relay method, minimizing thermal displacement and significantly improving processing accuracy. The high-rigidity, large-sized, heavy-duty linear slide rails maintain accuracy under impact, offer smooth and low-noise displacement, and extend service life.
4. It provides a complete hydraulic and lubrication system with high-quality hydraulic pumps and valves, significantly reducing the failure rate. The hydraulic and lubrication systems are designed to be simple and reliable.
5. Equipped with a Taiwan rotary chuck cylinder and an optional automatic chip removal device, it greatly reduces the labor intensity of the operator, ensuring safe and efficient production. All functional components can be programmed and controlled, with various functions designed and installed according to user-specific requirements.special fixture.
Product Parameters

Name	Unit	SY208M
Max. swing diameter over bed	mm	Φ680
Max. processing diameter	mm	Φ450
Max. processing diameter on the tool holder	mm	Φ300
Max. processing length	mm	450
Distance between centers	mm	600
Spindle nose	type	A2-6
Max. Spindle speed	rpm	4300
Oil cylinde/chuck	lnch	8″
Spindle bore diameter	mm	Φ65
Bar diameter	mm	Φ52
Spindle motor power	kw	18/22kw
Spindle torque	N.m	105-227
X/Z travel	mm	240/450
X/Z axis linear guide specification	spes	35/35 roller
X/Z motor power	Kw	2.9
X/Z positioning accuracy	mm	±0.005
X/Z Repeatability	mm	±0.003
X/Z axis moving fast	m/min	20/20
Power turret type	mm/pcs	BMT55-12T
Power turret power	Kw	5
Max. speed of power tool holder	rpm	5000
Outer diameter tool holder specification	mm	25X25
Inner diameter tool holder specification	mm	Φ40
Adjacent tool change time	sec	0.2
Programmable hydraulic tailstock	/	Programmable
Max. stroke of tailstock	Mm	440
Sleeve diameter	mm	Φ100
Sleeve travel	mm	100
Tailstock sleeve taper hole	type	Mohs 5#
Machine size	mm	2600x2100x1800
Machine weight	kg	5200
Cutting fluid tank volume	L	150
Cutting water pump	Kw	0.75
Hydraulic unit box volume	L	40
Hydraulic pump motor power	kw	1.5
Lubricant tank volume	L	2
Automatic lubrication pump motor power	W	50

Products Configurations
Company Profile

Quality Control
Our Advantages
FAQ
Q1: How can I choose the most suitable machines?
To assist you in selecting the perfect machine, please provide us with your specifications. We can recommend the best model for you. Alternatively, you may choose an exact model or even send us your product drawings, and we will identify the most suitable machines for you.
Q2: What are the main products of your company?
Our company specializes in a wide array of machinery, including CNC Lathe Machines, CNC Milling Machines, CNC Turning Machines, Vertical Machining Centers, Horizontal Machining Centers, and Lathe Machines. We also offer composite processing equipment for turning and milling, among others.
Q3: Where is your factory located, and how can I visit?
We operate five state-of-the-art factories located in Guangzhou, Quzhou, Ningbo, and Guangdong. We warmly welcome you to visit us at your convenience.
Q4: How do you handle transportation?
We offer comprehensive transportation solutions including DDP (Delivered Duty Paid), CIF (Cost, Insurance, and Freight), FOB (Free On Board), and FCA (Free Carrier).
Q5: What are the payment terms?
Our payment terms are T/T, with a 30% initial payment upon order and a 70% balance payment before shipment.
Q6: What is the Minimum Order Quantity (MOQ)?
A: The MOQ is 1 set, though some low-cost machines may require a higher quantity.
We would like to know:
1. To provide you with the best possible recommendation, please share the size and material of your workpiece for evaluation. It would be even better if you could send us the workpiece drawing.
2. If you require a CIF price, kindly specify the port of destination.
