Multi-Bags Filter Housing for Industrial Liquids Filtration CS 304 316L 2205 Ti
| US$1,000.00-9,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
LWDL-2P2S, LWDL-3P2S, LWDL-4P2S,
Motive Force
Pressure
Style
Tube
Performance
Efficient Filtration
Effective Filtration Area
1-15m2
Overall Height
1450mm
Materials
SS304,SS316L,2205,Ta2
Diameter of Bag
180mm
Length of Bag
420/810mm
Transport Package
Wooden/MDF Panel Carton
Specification
600*600*1600mm
Trademark
LWFE
Origin
China
HS Code
8421299090
Production Capacity
2000/Year
Packaging & Delivery
Package Size
70.00cm * 70.00cm * 150.00cm
Package Gross Weight
150.000kg
Product Description

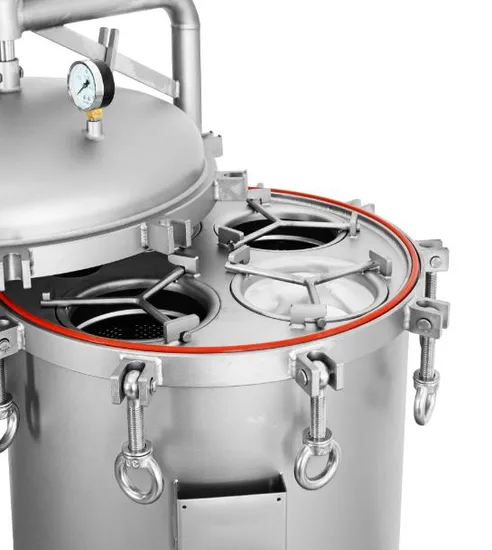

Multi-bags Filter Housings can accommodate 2 to 30 filter bags. The filtration area is the sum of the filtration area of all filter bags. We select the appropriate number of filter bags according to the filtration volume and filtration accuracy. There are a variety of materials and precision filter bags for selection, with simple structure and convenient operation. After filtering for a period of time, as the impurities increase, the filtering speed will drop. At this time, a new filter bag needs to be replaced. If the filtering process cannot be interrupted, multiple units can be connected in parallel to replace the filter bag in turn.Common products parameters:
| Model | LWDL-2P2S | LWDL-3P2S | LWDL-4P2S | LWDL-5P2S | ... | LWDL-30P2S |
| Effective filtration area | 1.0m2 | 1.5m2 | 2.0m2 | 2.5m2 | ... | 15m2 |
| Average filtration velocity | 60m³/h | 90m³/h | 120m³/h | 150m³/h | ... | 900m³/h |
| Cylinder size | φ400*3mm | φ450*3mm | φ500*3mm | φ550*4mm | ... | φ1350*8mm |
| Inlet/Outlet | DN50/65/80 | DN65/80/100 | DN80/100 | DN100/125 | ... | DN300/350 |
| Overall height | 1450mm | 1450mm | 1450mm | 1450mm | ... | 1450mm |
| Materials | SS304,SS316L,2205,TA2 | |||||
| Max. Operating Pressure | 0.6MPa,1.0MPa,1.6MPa | |||||
| Surface treatment | Shot blasting, Polishing, The inner surface is lined with rubber or sprayed with PTFE | |||||
