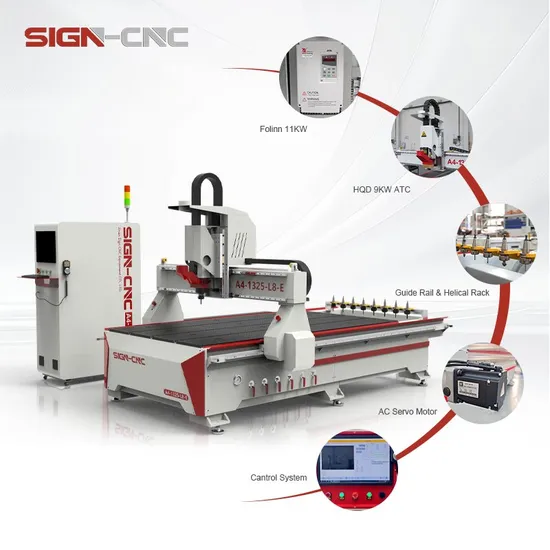

Wood Carving Automatic Tool Changer CNC Wood Router Machine 1325 Atc for Wood Acrylic Aluminum
Basic Info.
Model NO.
A4-1325-L8-E
Condition
New
Certification
ISO, CE
CNC or Not
CNC
Voltage
220V
Model
A4-1325-L8-E
Working Size
1300X2500mm
Z Axis Height
280mm
Spindle
Hqd 9kw Atc Spindle
Spindle Cooling
Air Cooling
Guide Rail
25mm Square Guide Rail and Rack
Motor
750W Servo Motor and Drive
Reducer
Shimpo
Controller
Shanlong L68
Table
Vacuum Table
Vacuum Pump
Jqt 5.5kw
Dust Collector
3kw
Software
Artcam
Weight
1400kw
Package
Wooden Box
Transport Package
Wooden Package
Specification
13 cubic meter package
Trademark
SIGN-CNC
Origin
China
HS Code
8465990000
Production Capacity
1000set/Year
Packaging & Delivery
Package Size
320.00cm * 230.00cm * 190.00cm
Package Gross Weight
1400.000kg
Product Description
1325 CNC Router ATC Wood Working Machine| Model | A4-1325-L8-E |
| X, Y Working size | 1300x2500mm |
| Z feed Height | 280mm |
| Table Surface | Vacuum table |
| X, Y Structure | Rack and Pinion Drive, 25mm Linear Square Guide Rail |
| Z Structure | 25mm Linear Square Guide Rail and Ball Screw |
| Max. Power Consumption | (Without spindle) 2.0Kw |
| Max. Rapid Travel Rate | 33000mm/min |
| Max. Working Speed | 25000mm/min |
| Spindle Power | 9.0KW HQD spindle ATC |
| Spindle speed | 0-24000RPM |
| Tool Magazines | Linear Tool magazines 8pc |
| Drive Motors | Servo motor and driver |
| Working Voltage: | AC220V/50/60Hz |
| Command Language | G code |
| Control System | Shanlong L68 |
| X,Y,Z repositioning Accuracy | ±0.01mm |
| X,Y Resolution | <0.01mm |
| Software | Artcam |
| Running Temperature | 0 degree - 45 degree |
| Relative Humidity | 30% - 75% |
| Package | Wooden Box |
