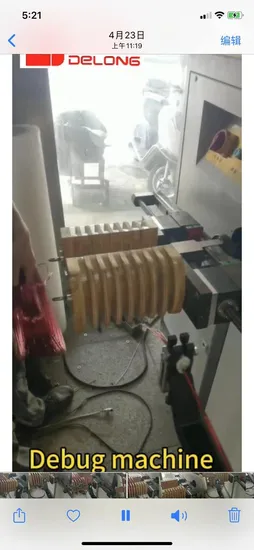

Automatic High Power Winding Machine with Electric Thread Capability

Product Description

Introducing the Electric Winding Machine (DLM-0866), a true masterpiece of modern engineering innovation meticulously crafted to elevate your winding processes to unparalleled heights of efficiency and precision. Experience the future of winding technology with unmatched performance and reliability.
Presenting the DLM-0866 Coil Winding Machine, an epitome of precision engineering excellence, crafted to deliver extraordinary efficiency in every coil winding task. This machine embodies the perfect blend of high performance and exquisite craftsmanship, ensuring outstanding results every time.
1. Advanced Array Motor: Discover the dynamic power and high-performance capabilities of our cutting-edge array motor, setting a new benchmark in winding technology. Experience unprecedented speed, accuracy, and efficiency that revolutionizes the winding industry.
2. Automatic Computer Control: Seamlessly automate your processes with our sophisticated computer control system, designed for effortless and intuitive operation. Transform complex winding tasks into simple, streamlined operations with this advanced control feature.
3. Super Quality: Experience unmatched excellence in design and functionality, ensuring the highest standards of quality in every aspect of performance. Our commitment to superior quality assures exceptional results and reliability, every time.
Introducing the DLM-0866 Large Winding Machine, a harmonious blend of impressive size and impeccable functionality, redefining industry standards. This machine is a pinnacle of engineering that promises to deliver unmatched performance in large-scale winding applications.
1. This horizontal and automatic winding machine is ingeniously equipped with serial parallel coil formers, making it perfectly suited for a diverse range of AC and DC motor stator coils, as well as inductance coils. Its versatility ensures it meets the demands of various winding applications.
2. With a cutting-edge single board computer at its core, the machine deftly handles complex tasks like zero resetting, traversing, and skipping, ensuring precise alignment and seamless operation. This advanced technology leads to exceptional accuracy and efficiency.
3. User-Friendly Control Panel: Effortlessly tailor your settings by adjusting wire diameter, number of turns, traverse, and skipping distances to meet your specific operational needs. This easy-to-use interface ensures that customization is simple and effective for all your winding requirements.
Technical Parameter: Explore the superior specifications that define our machine's remarkable capabilities, delivering top-tier performance. These specifications ensure that every aspect of the machine's operation is optimized for excellence.
Suitable Wire Diameter: Expertly crafted to handle wire diameters ranging from 0.1 to 1.2 mm, ensuring versatility and ease of use. This adaptability makes it ideal for a wide range of applications, providing flexibility and precision.
Winding Width: Offers a versatile winding width from 0 to 30 mm, perfectly catering to a wide range of applications. This broad range allows for the customization needed for diverse winding tasks.
Winding Diameter: Accommodates winding diameters between 25 to 180 mm, providing unparalleled flexibility in operations. This capability ensures that the machine can meet the needs of various winding projects with ease.
Effective Length of Series-mode Axis: Features an expansive range of 500 to 600 mm, delivering enhanced performance and capability. This extended range enhances the machine's ability to handle larger coils with exceptional proficiency.
Return Diameter of Former: Supports return diameters spanning 210 to 280 mm, optimizing efficiency and operational effectiveness. This feature enhances the machine's adaptability and ensures superior winding quality.
Rotation Speed: Accelerate your operations with a robust rotation speed of 3200 R.P.M, driving productivity and efficiency. This high-speed capability allows for faster completion of winding tasks without compromising on precision.
Power Source: Dependable 220V 50Hz power source ensures consistent, reliable, and stable operation every time. This reliable power supply guarantees that the machine functions optimally under various conditions.
Pressure of Air Supply: Operates within an air supply pressure range of 0.5-0.8 MPa, ensuring optimal performance and efficiency. This range allows the machine to perform effectively across various operational demands.
Power: Harness the robust power of 750W to execute tasks with unmatched precision and reliability. This powerful motor ensures the machine operates with high efficiency and dependability for all your winding needs.
Dimension (L x M x H): Compact and efficient with dimensions of 1450 x 912 x 1200 mm, perfectly suited for various industrial settings. This space-efficient design ensures the machine fits seamlessly into diverse environments.
Weight: Approximately 800 kg, providing a robust yet manageable solution for diverse industrial environments. This weight ensures stability and durability, making it ideal for long-term industrial use.
