Th-8210t Compound Battery Tensile Testing Machine

Product Description

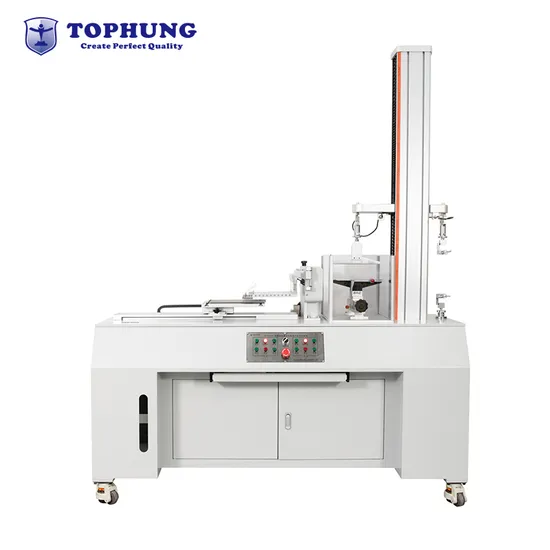

TH-8210T Series of Compound battery tensile testing machine
01 Carrier plate:Install the sample
02 Multichannel Fixture:Fixed sample to ensure testing accuracy
03 Multichannel sensor:High precision load cells imported from USA
04 Fixture:Fixed sample to ensure testing accuracy
05 Load cells:High precision load cells imported from USA
06 Operation panel:Simple and easy to operate
07 Host base:Waterproof and oil resistant, stable and durable
08 Compound caster:Easy to move the machine, fixed machine position
Product Description Test Items:
The testing machine is mainly used for testing solar PV modules, adhesive products and other material samples: Tensile,Stripping,Bending,Tearing and Other precision mechanical tests.
Application industry:
This series of testing machines are widely used in solar photovoltaic industry, colleges and universities, scientific research laboratories, commodity inspection and arbitration, technical supervision and other departments.

Model	TH-8210ST	TH-8210AT
Name	Servo computer composite cell tensile testing machine	Computer composite cell tensile testing machine
Capacity	10N 20N 50N 100N 200N 500N
Display mode	Computer display or (LCD display + computer display)
Power system	Imported servo motor + servo drive	Servo motor + servo drive
Accuracy grade	Better than 0.5 level	Better than 0.5 level
Load range	0.2%-100%FS	0.2%-100%FS
Force error	Within±0.5%	Within±0.5%
Force resolution	1/±500000	1/±500000
Deformation ranger	0.2%-100%FS	0.2%-100%FS
Deformation error	Within±0.5%	Within±0.5%
Deformation resolution	0.0001mm	0.001mm
Displacement error	Within±0.5%	Within±0.5%
Displacement resolution	0.0005mm	0.001mm
Force control rate adjustment range	0.01-10%FS/S	--
Force control rate accuracy	Within±1.0%	--
Deformation rate adjustment range	0.02%-5%FS/S	--
Deformation rate control accuracy	Within±1.0%	--
Displacement speed range	0.001-500mm/min	1.0-500mm/min
Effective test width	230*230mm
Effective space	560mm/700mm
Dimension	1500*580*1722mm
Power	Single-phase 220V 1kW
Weight	about 80kg

Component Introduction
Servo motor High precision: realized closed-loop control of position, speed, and torque; Fast speed: good operation performance, rated speed can reach 2000~3000 revolutions; Adaptability: strong overload resistance,can withstand three times the rated torque load. Load cells High precision: high measurement accuracy;
High stability: stable and durable;
Accuracy level: better than 0.5 level accuracy. Ball screw Smooth movement: low frictional resistance during operation, high sensitivity, no shaking when starting, no crawling phenomenon at low speeds; High transmission efficiency: the transmission efficiency is as high as 90%-98%, which is 2-4 times of the traditional system; Adaptability:strong overload resistance,able to withstand loads three times the rated torque.
Software Introduction

Main interface: TOP-Test material test special software,it is suitable for all kinds of materials, products mechanical properties test. The main interface of the test simultaneously displays: test curve, data list, real-time data, control panel and other information. Simple interface, portable operation, and support for multi-language seamless switching.

Standard Setting interface: TOP-Test material test special software, according to the product test standards, can be set before the test sample information, the test process control mode, running speed, control conditions, and test results of the data list, data arithmetic, test report style and other information, To meet the test requirements of ISO, IEC, EN, GB, ASTM, JIS, DIN and other international general testing standards.

Calibration interface: TOP-Test material test specific software, with force, displacement, velocity, deformation and other equipment calibration functions. Force calibration can simultaneously store multiple sets of calibration data for load cells, and can calibrate up to 12 segments of load cells. The force error is controlled within ± 0.5%, making the test results more accurate.

Unit system interface: TOP-Test material test special software, with flexible unit system, strength, displacement, deformation, strength and other data are available in a variety of units to meet different testing requirements.

Data query: TOP-Test material test special software, with powerful data query function, each test data are stored in the encrypted database, users can query and output historical tests based on search criteria such as test number, batch, time, and personnel, and compare and analyze the test results horizontally/vertically.

Report output: TOP-Test material test specific software, it adopts open test report template, users can write test report styles according to test requirements, call test result database information, and automatically generate test reports. And it can output test reports in formats such as Word, Excel, PDF, etc. The data information is complete, clear, and automatically generated.
