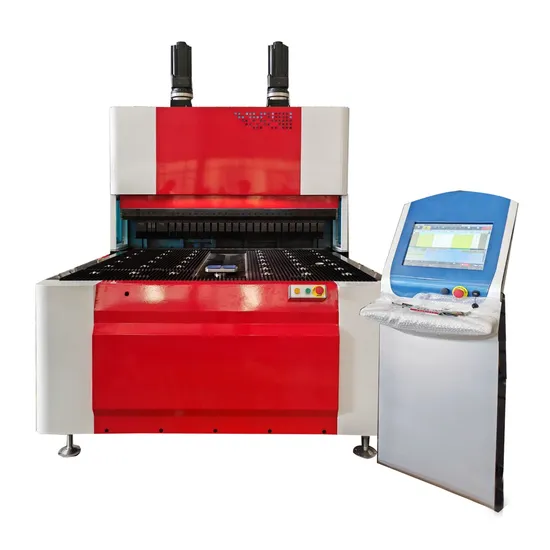

2500mm CNC Panel Bender Sheet Metal Folding Machine Automatic Bending Center

Product Description

2500mm CNC Panel Bender Sheet Metal Folding Machine Automatic Bending Center
FLC Series panel bender is the new generation automated bending solutions, a benchmark that indicates the upgrading to automation of sheet metal fabricating industry. It can obviously reduce the labor cost and at the same time it can realize 300% higher efficiency comparing to traditional press brake up to 0.3s per bending. Full electro servo transmission plus closed-loop BUS control makes the accuracy far better.
1. The main function is to realize the automatic bending of edges. A platecan be folded into four sides or even more;
2. The NC positioning device is used for automatic positioning, and themultilateral bending is completed at one time, which shortens thebending timeThe bending cycle time controls the shearing error of theplate to the first bending edge;
3. The mechanical stop block further ensures the accuracy of eachpositioning dimension. Due to the bending multilateralFunction of:
Technical parameter

Model	Bendinglength	Platelength	Plate width	Bendingheight	Mainmum moldingsize of four sides	Mainmum fomingsize of four sides	Mainmumatc radius	The fastest continusbending speed
FLC-1000	1200	1100	600	175/320	320x200	320x200	1.2	0.5s
FLC-1600	1500	1700	800	175/320	320x200	320x200	1.2	0.5s
FLC-2000	2000	2100	1250	175/320	320x200	320x200	1.2	0.5s
FLC-2500	2500	2600	1250	175/320	320x200	320x200	1.2	0.5s

Model	TDistance between upper	Bending angle	Mainmumatc radius	Max.thickness of material	CNCsystem	Numberof axes	Dimension LxWxH
FLC-1000	180	0-180	1.2	Aluinum plate :2.0 arbon steel plate: 1.5 Stainless steel :1.2	Star300-LGx	7 axes standard, 8/9 optional	2900x1390x2600
FLC-1600	180	0-180	1.2			10 axes standard, 11/12 optional	3370x1890x2650
FLC-2000	180	0-180°	1.2			11 axes standard, 13/15 optional	4480x2390x2700
FLC-2500	180	0-180°	1.2			11 axes standard, 13/15 optional	5280x2900x2700
