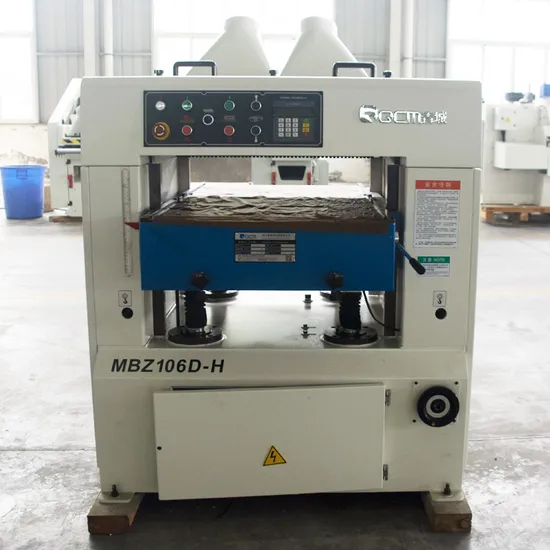

MBZ106D-H Woodworking Machinery Single Side Thicknesser Planer
| US$6,480.00-6,777.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
MBZ106D-H
Working Depth
100-200mm
Working Width
500-700mm
Drivetrain
Feed Drivetrain
Enter Method
Mechanical
Motor Power
＞10Kw
Cutter Shaft
2
Spindle Speed
＜5000rpm
Process Type
Heavy Processing
Certification
CE, ISO
After-sales Service
3 years
Product name
Thicknesser
Keywords
single press planer
Function
woodworking machinery
Electricity
Siemens
Machine body
Casting
Voltage
380v, Can be customized
Cutter Head
Spiral cutter spindle, Can be customized
Core Components
Engine, Bearing, Gearbox, Motor, etc.
Certificate
CE & ISO
Machinery Test Report
Provided
Place of Origin
Sichuan, China
Application
Woodworking, wood flooring, double side planing
Applicable Industries
Woodworking factories
Professional solution
One-side planing
Fit for
Finger joint factory, certain thickness etc.
Transport Package
Plywood Carton
Specification
1150*1300*1520 mm
Trademark
QCM, Smart Panther
Origin
China
HS Code
84659200
Production Capacity
1000 Units/Month
Packaging & Delivery
Package Size
115.00cm * 130.00cm * 152.00cm
Package Gross Weight
1250.000kg
Product Description
Woodworking Machinery MBZ106D-H Single Side Planer Made In China Factory Manufacture Thickness Planer Product Parameters| Technical Parameter | |||
| Model | Single side planer, surfacer, heavy thicknesser | Unit | MBZ106D-H |
| Specifications | Working width | mm | 630 |
| Working thickness | mm | 3-300 | |
| Min.working length | mm | 300 | |
| Max cutting depth | mm | 8 | |
| Spindle cutting dia | mm | Φ125 | |
| Feeding speed | m/min | 5-18 | |
| Spindle speed | r/min | 5000 | |
| Motor Power | Total power | kW | 9.37 |
| Spindle motor | kW | 7.5 | |
| Feeding motor | kW | 1.5 | |
| Lifting motor | kW | 0.37 | |
| Pressure & Diameter | Suction hood dia | mm | 2*Φ150 |
| Dimensions & Weight | Overall dimensions | mm | 1150*1300*1520 |
| Weight | kg | 1250 | |
Product Description
| Product Details | |
| 1. WORKING TABLE The working table is made of casting iron, which is vary heavy and durable. It's much bigger than small planers. | |
| 2. FEEDING SPEED The speed is frequency controll, which is easy to adjust. | |
| 3. FOUR COLUMNS Our thicknesser has four columns, while other brands only have two. | |
| 4. THICKER CUTTER Our diameter of cutter is 125mm, other brand only has 90mm or less. | |
| 5. PROFESSIONAL ELECTRICAL APPLIANCES Imported electrical products and appliances insure the whole machine run well with a stable performance. | |
Company Profile
About US
QCM Machinery was established in 1970 and have been specializing in production of woodworking machinery for more than 50 years now.
We have our own casting workshop, and more than 300 sets of modern CNC machining equipment and testing equipment, such as Okuma, Mazak, Mitsubishi. Strong R&D team with 55 people can provide our customers with the biggest professional technical support.
Choose our machinery, to help you improve productivity, processing quality, and profit.
Advantages and Service
1. Lead Time?
Within 15 days for regular stock machine after receiving down payment.
45-60 days for customized machines,
60-90 days for busy season.
2. Warranty ?
3 years for machine, 3 years for the core components.
3. Spare Parts?
Unified standards spare parts are available anytime.
4. Voltage?
Regular voltage 380v, 50hz; customized voltage is available.
5. After-sale Service?
24 hours technical support by email, call and video.
our engineer is available to visit at your expenses of accommodation and round tickets.
6. Why us?
1). 50 years experience in woodworking machinery since 1970.
2). Our own casting workshop to insure extra heavy one-piece cast iron machine body for maximum stability and rigidity. Control quality from raw material.
