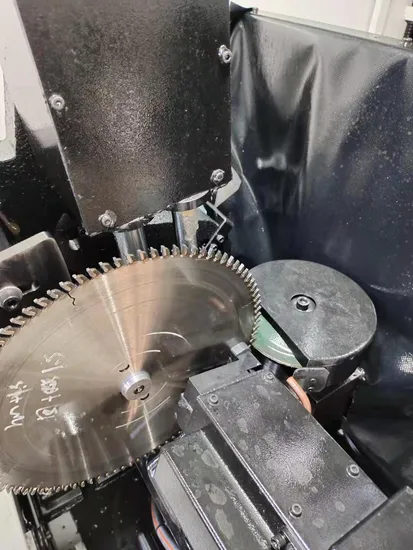

Woodworking Circular Saw Blade CNC Sharpener Grinding Machine with Auto Loader

Product Description

Woodworking circular saw blade CNC sharpener grinding machine with auto loader
1.Professional in grinding saw blades suitable for aluminum alloy, panel furniture,plywood, MDF, multiple blade saw, high-end power tools.
2.Machine tool base is made of welded steel plates ,and the main parts are cast iron, which are treated by high temperature tempering and vibration aging to ensure that no deformation occurs during long-term use.
3.With 4-axis servo and 3-axis stepper. Some parts adopt digital signals control and there is no analog signal.
4.Feed mode, feed amount, feed speed, feed speed, grinding speed, radial clearance angle and tangential clearance angle are all digital set through user interface; Processed product specifications can be stored as the production number, which can be directly invoked in the next processing. A machine can store up to 100 sets of data.
5.Number of hanging pieces: approx 60 pieces (2mm blade) Time of changing saw blades: approx 12 seconds (140-305mm);approx 24 seconds (320-405mm)
1.What is the payment terms?
---L/C, T/T
2.Which is the grinding surface of the grinding machine AFZ400?
---It can grind the front surface of the tip.
3.Where is the loading port?
---Tianjin, China.
4.Is the company's technology for producing saw blade grinding machines mature?
---Sure,our company have more than 120 technicians, and they have more than 20 years working experiences.
5.Where is the address of the factory?
---Our factory is located in Tangshan city, Hebei province, China.
6.What is the grinding accuracy of the grinding machine?
---The accuracy of the grinding machine is between 0.01-0.03mm.
7. Which tooth surfaces of the saw blade can your grinding machine grind?
---It can grind any tooth surface, and you can choose a grinding machine to grind the tooth top, tooth face or side surface according to your needs.
8. Are you a manufacturer or a trading company?
---We are professional saw blade grinding machine manufacturer. We have more than 120 technicians dedicated to the design, development and production of saw blade grinding machines. And there is an independent sales department and after-sales department to provide you with services.
9. How can I select a suitable grinding machine?
---You can tell us your requirements of saw blade grinding machine, and other parameters of your saw blades, we will give you professional suggestion.
10. Can I contact you if I have any questions?
---Sure, we will serve you wholeheartedly, please feel free to contact us if you have any questions.
