8 Colors Kyocera Printing Heads Digital Inkjet Label Printing Machine
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
Label Modular 330
Plate
Digital Printing
Structure
Digital Inkjet Printing
Color & Page
Multi-Colour Printing Press
Usage
Label Printer, Card Printer
Automatic Grade
Automatic
Printing Interface
USB3.0
Printing Speed
50 M/Min
System Supported
Windowsxp32
Resolution
600*1200dpi /600*600dpi
Colors
4-9 Colors
Printing Width
324 mm
Media Width
330mm
Printing Head Quantity
15 PCS
Substrate Thickness
50-400 µm
Ink
Digital UV Ink
Transport Package
Sea Worthy Wooden Case
Specification
7020*1848*2146mm
Trademark
Ecoographix
Origin
China
Production Capacity
100 Sets Per Year
Product Description
Product Description

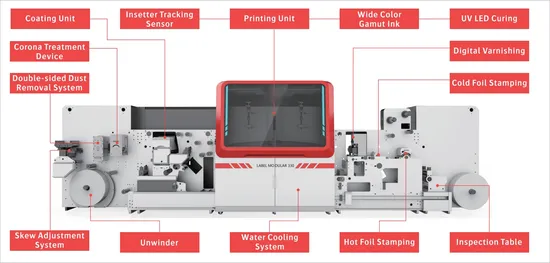

| Brief introduction Label modular 330 is a digital inkjet Modular-link hybrid roll-to-roll label printing machine. It conbines functions in a flexible way to establish coating, Printing, Varnishing, Foli-stamping, One-click production and High precision printing quality. | |
| Software-Apogee Benefits Combines different Apogee solutions, such as Preflight, Impose, on-line approval, and more. Brings significant quality improvements to avoid unwanted and unpredictable output. Increases throughput and efficiency via Digital Quick Strip (DQS). Provides first-rate versioning support, extended digital print support, and improved job handling. | |
| Printing head and colors The machine uses Kyocera piecoelertric printing heads. Customers has options based on their printing resolution requirements. Each printing head has its own control board to control, makes printing more efficiency and easier to maintain. | |
| Stable and high-speed prnting unit Imported high-precision industrial print head has higher fire ignition frequency and service life, resolution up to 600 X 1200 dpi, guaranteed excellent print quality.The patch tracking electronic eye achieves accurate secondary surprint, comprehensively solves the problem of printing registration, and makes the printed matter more aesthetic. | |
| Automatic winding and unwinding system Effectively prevent the substrate from shifting, ensure the orderliness of the winding and unwinding system and achieve non-stop production for a long time.High linkage winding system, fully automated, to maximize automated production. |
| ECOO Label Modular 330 | |||||||||||||||||||||||||||||||||||||||||||||||||||||
| Model | Ecoo Label Modular 330 | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||||||||||
1. How many color does this machine print?
CANDY: It is modular printing machine. It has digital printing units and flexo printing units. Based on printing requirements, we can add max. 9 printing units. More colors means better printing performance.
2. what are other functions?
CANDY: The machine can do varnishing, foil stamping and cutting for optional.
3. what printing ink does this machine use?
CANDY: Use inkjet printing ink, our price is $80/liter.
4. What is the printing head, how long is the warranty for printing heads.
CANDY: For this models, we use Kyocera printing heads. But customer can choose different printing heads to satisfy their printing speed and resolution. We have solutions for this. Price varies from heads details too.
