Automatic Granite Marble Kerbstone Production/Multi Blades Bridge Sawing Cutting Machine/Block Rock Limestone CNC Stone Edge Processing Cutter Suppliers

Product Description

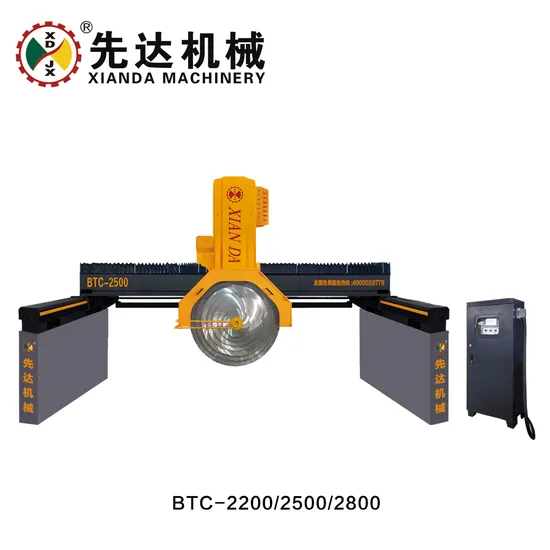

Block cutting machine for granite marble cutting machine BTC-2200/2500/2800
Product Show
Product Description
1.BTC-2500/2800 adopts frequency converter to control the left and right feeding to adjust the speed according to the stone material, and the speed can be adjusted according to the stone material.
2.Adopt hydraulic lifting system
3.The front and rear shards are driven by high-precision screw nuts and automatically sharded. The main spare parts are made of imported high-quality materials. The raw materials can be placed directly on the ground, saving workbench and maintenance costs.
3The whole machine has the characteristics of high cutting efficiency, high slicing accuracy, flat plate after cutting, high stability, and easy operation.
4.It is especially suitable for cutting high-value granite and marble blocks.
Product size details
Technical Data

Parameter	Unit	BTC-2200	BTC-2500	BTC-2800
Max blade diameter	mm	φ2200	φ2500	φ2800
Max processing length	mm	3600	3300	3000
Max processing width	mm	2200	2200	2200
Max lifting stroke	mm	1350	1350	1350
Main motor	kw	45/55	45/55	55
Gross motor	kw	56/66	56/66	66
Outline dimension	mm	8000*4800*3700	8000*4800*3700	8000*4800x3700
Water consumption	m³/h	15	15	15
Gross weight	kg	14000	14500	15000

Factory Overviews

Certifications

Our Services

We can provide Machine Testing Video and will be strict inspected and testing for every machines before shipping out.
32 years' Manufacture Experience.Special shape stone cutting machine more than 70% market occupied in China.
Top 5 stone cutting machine manufacturer with ISO&CE certificate.
Products are selling to more than 20 countries, with more than 10 years overseas experience.Use of top brands to ensure high quality.
We can provide competitive price and discount for large quantity.Strength supply capacity ,more 1000 sets per year.
After-sales service 24 hour on line. We will service staff training, so that continuously improve the overall quality of service.
We are responsible for receiving and processing customers on product quality and service quality complaints; We have professional and technical personnel to guide the installation and commissioning of your machine and operator training.
