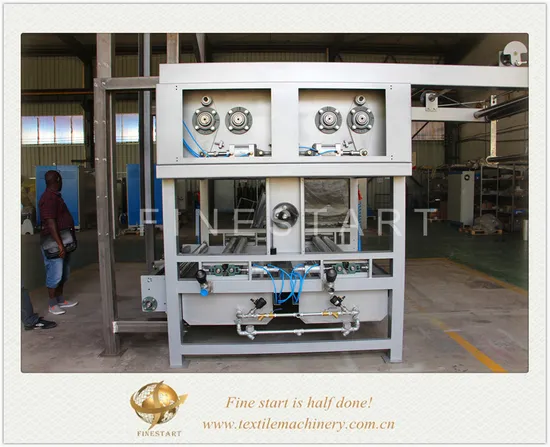

Squeezer Machine for Open Fabric and Tubular Fabric After Dyeing Machine
| US$45,000.00-55,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
1400
Material
Tubular Knitte Fabric
Voltage
350V
Load Capacity
>2000kg
Certification
CE, ISO9001: 2000
Warranty
1 Year
Customized
Customized
Condition
New
Weight
4.5tons
Transport Package
Wooden Pallets
Specification
7700mm* 2750mm* 4000mm
Trademark
FINESTART
Origin
China
Production Capacity
100units/Year
Product Description
Introduction
FSRZ2400 series machine is used for impregnating soften agent and hydro-extractor process of the tubular fabrics, it can be substitute for centrifugal machine and wet expander. It is high efficient and easy to operate.
| Basic Info | |
| Model | FSRZ2400 |
| Name | Ballon Padding Machine |
| Function | Ballon Padding Machine is used for impregnating softening liquid to wet process of double dip the tubular fabric, |
| then padding the residual liqiud. it can be substitute for the traditional process of centrifugal machine and wet expander. | |
| It is high efficient and easy to operate. | |
| Suitable Fabric | Wet tubular knitted Fabric |
| OEM | FINESTART |
| Year of Manufacture | 2017 |
| Technical Dates | |
| Working Width | 1400mm |
| Working Speed | 3-45m/min |
| Installed Power | 11.45kw |
| Dimension | (7700mm×2750mm×4000mm)L*W*H |
| Weight | Approx. 5.8T |
| Compressed Air | 0.35-0.6MPa |
| Color | Blue/Customize |
| No | Main Parts | Explanation | |
| 1 | Turn Table | Turn table is driven by motor, it can turn clockwise or anticlockwise according to untwist needing. | |
| 2 | Detwister | Detwister will auto detwist the roped fabric and infeed smoothly | |
| 3 | Ring Guider | Fabrics guide rings position (fabrics working breadth) is adjusted through lead screw, lead screw is driven by motor | |
| 4 | Trough | Make it by 316L stainless steel,anti-corrosion from the chemical liquid | |
| 5 | Auto Blower | After detwisting,the blower will inject air into fabric,it will be favor to utmost impregnate the chemical agent on fabric | |
| 6 | Squeezer | Squeezer consists of 2 sets rubber roller and 2 sets Pneumatics cylinder. | |
| The pressure of the squeezing roller is adjusted by two sets reduce valve. | |||
| The water squeezing device and softener expression device are driven by one motor separately, | |||
| the two motors are controlled by inverter. | |||
| 7 | Tension Regulator | Set with a regulation-resistance to adjust tension between squeezing roller and delivery device. | |
| Energy Consumption | |||
| No | Item | Consumption | |
| 1 | Driving System | 11.45KW | |
| 2 | Steam | 50-100kg/h | |
| Loading | |||
| 1 | 1*20GP | ||
Payment Terms:
Payment Conditions: 30% down payment by T/T and the balance payment should be TT or in irrevocable L/C at sight.
Delivery time:30 days from the date of receiving down payment. All payment should be received before delivery in China.
Any questions and requirments,contact us now!
