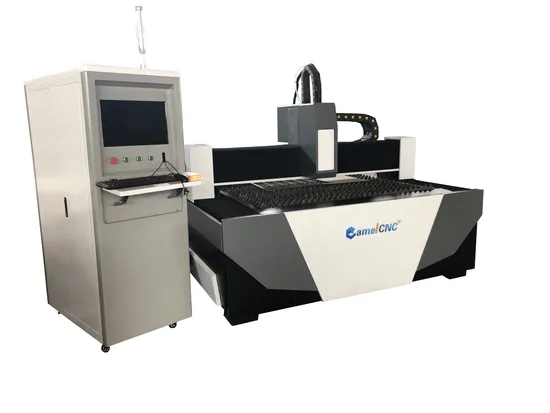

2022 Hot Sale Laser Cutter Metal 500W 1000W 1500W Fiber Laser Cutting Machine for Stainless Steel

Product Description

2022 Hot Sale Laser Cutter Metal 500W 1000W 1500W Fiber Laser Cutting Machine for Stainless Steel
Description:
Fiber laser cutting machine is the best cutting tool for thin sheet metal cutting, especially for carbon steel, stainless steel cutting, it combines function of compact layout, stable optical link, convenient operation and reliable performance in one.
Parameters:

Model	CA-F1530
Working area	3000x1500mm
Laser Power	1000W
Laser Wavelength	1064nm
Application Materials	Metal
Max. Cutting Thickness	SS:4MM,MS:6-8MM
Gross Power	9KW
Positioning Accuracy	±0.03mm/m
Reposition Accuracy	±0.02mm
X/Y-axis Maximum Simultaneous Positioning Speed	140m/min
U-axis max.moving speed	30m/min
Cooling Model	Water cooling
Rotary system	Optional

Features:
1.Integrated machine design, left and right collecting drawer design highly saving space.
2. Stability and reliability for light path system and control system.
3. Fiber laser has high and stable function and lifespan which is over 100000 hours.
4.Higher cutting quality and efficiency with cutting speed being up to 15m/min with perfect cutting edge.
5. High performance reducer, gear and rack; Japanese servo drivers and more effective in cutting.
6. Imported ball screw and square guide provides high speed and accuracy when working.
7. Water chiller high capacity provides stability during long-term operation.
8.A separate control box and handheld control makes it easier to control the machine
10. Without consumables. Easier to use, adjustment of the optical beam is not necessary
Advantages:
1. High quality in cutting edge precision in cutting. Excellent in stability.
2.Cutting large format and suitable for cutting more material.
3.drawer and air valve for work convenience.
4.High performance-price ratio
5.Low cost for using
6.Low fees for the future maintenance
Applicable materials and Industry:
The applicable materials include: ordinary carbon steel, stainless steel, Alloy steel, Aluminum, copper, titanium plate etc.
Suitable for aerospace technology ,rocket, plane, robot, elevator, steamship and automobile manufacturing and metal parts processing industry for metal plate, advertisement, kitchen ware, bit tool, hardware etc.
Main configuration:
Detailed Imagines:
Sample:
Packaging & Shipping
