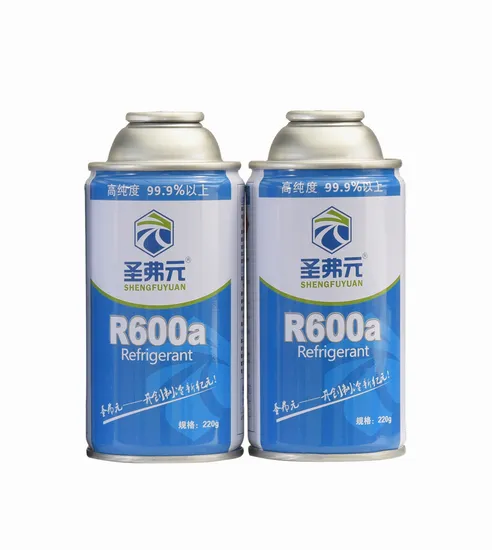

99.99% Pure Isobutane R600A Refrigerant Gas R600A

Product Description

Isobutane R600a, known as refrigerant R600a gas. R600a is a special refrigerant for refrigerators and freezers. It needs to be filled quantitatively. The injection precision should be controlled within ± 5g. The filling phase is liquid phase and gas phase. It is compatible with mineral oil.
Product Pictures:
Application: Refrigerant, can replace R12.
R600a (isobutane) is widely used as a refrigerant of domestic refrigerators. Molecular Dynamics (MD) simulations have been employed to study the homogeneous condensation phenomenon of R600a (isobutane) refrigerant in the vapor compression refrigeration system. The molecular system consists of superheated vapor isobutane in a cuboid simulation cell with periodic boundary conditions in all directions. A more physically reliable thermostat and a barostat are applied to control the temperature and pressure of the cell containing the molecules. Based on AHRI standard 460 rating conditions, the simulations started from the initial configuration of vapor phase isobutane system, and once the equilibration is established at 361 K with 1 atm, the system is suddenly cooled to the ambient temperature of 308 K and is set under the condensing pressure of 7.1658 bar corresponding to the saturation temperature at 325 K of the compound at supersaturation ratio 1.548.
Technical Data Sheet(GB/T19465-2004):

Molecular weight	58.12	Liquid density(25ºC)g/cm³	0.551
Boiling point 101.3Pa(°C)	-11.7	ODP	0
Critical temperature(°C)	134.7	GWP	0.1
Critical pressure(MPa)	3.66	Absolute pressure(25ºC)kj/kg. ºC	0.35

Quality Index:

Purity,%	≥99.93%	Evaporation residue,PPm	≤1
Water content,PPm	≤10	Appearance	Colorless and clear
Acidity,PPm	≤0.1	Odor	Odorless

Packing:
Net weight(can): 100g, 120g
Cylinder: 5kg, 10kg
