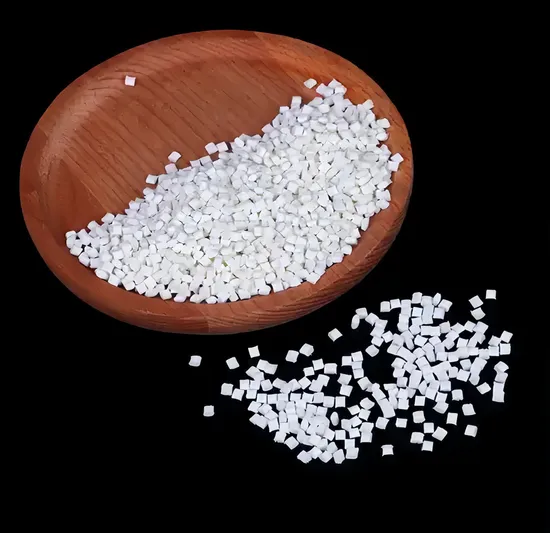

Plastic Raw Material Polyamide PA6 GF10 GF30 Nylon Rod Filled Resin Granule Compound with Carbon Fiber with Good Price for Building Chemical Material

Product Description

PA6GF50	B109GH
Product Description	Applications
50% glass fiber reinforced PA6	Injection molding
Good mechanical properties balance

Properties	Test Method	Test Condition	Unit	Typical Values(dry)
Physical properties
Specific Gravity	ISO 1183	23°C	g/cm³	1.56
Ash	ISO 3451	800°C,30min	%	50
Mechanical properties
Tensile Strength	ISO 527	5mm/min	MPa	210
Tensile Modulus	ISO 527	1mm/min	MPa	15000
Elongation at Break	ISO 527	5mm/min	%	2
Flexural Strength	ISO 178	2mm/min	MPa	350
Flexural Modulus	ISO 178	2mm/min	MPa	14000
Unotched Charpy Impact Strength	ISO 179-1/1eU	23°C	kJ/m2	100
Notched Charpy Impact Strength	ISO 179-1/1eA	23°C	kJ/m2	17
Thermal properties
Heat deflection temperature	ISO 75	1.80MPa	°C	215
Melt Temperature	ISO 11357	DSC	°C	220
Other properties
Mold Shrinkage	internal test method	flow direction	%	0.10-0.20
		cross flow direction	%	0.60-0.80
Flammability	ISO 3795	-	mm/min	30
Note: The data above is typical value for reference, not guarantee value. The data will vary with tool design such as gate type , gate location, gate number, injection molding process and part thickness. The data will vary with different color as well. Prior to use the material, please consult with Suzhou Shituo New Material Co., Ltd.

Processing Conditions		Range
Melt Temperature		240-270°C
Barrel Temperature	Rear	240--250°C
	Center	250--260°C
	Front	260--270°C
Mold Temperature		70-100°C
Pre-Dry needed		110-120°C, 4-6h dehumidified dryer
Note: The above process condition is only for reference. The actual process should be adjusted according to different type of machine, mold design and product design.
