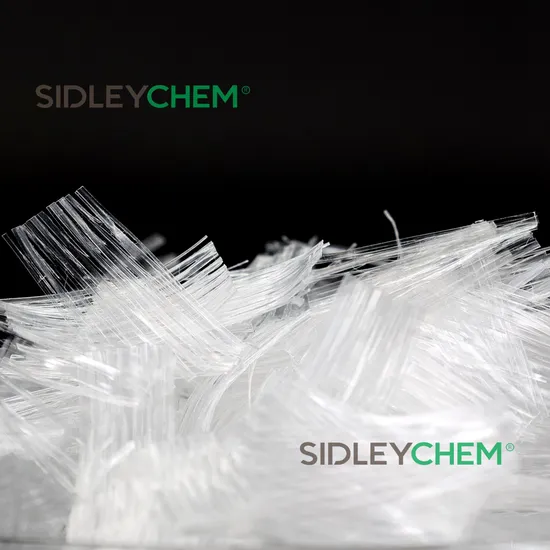

Polyvinyl Alcohol Fiber (PVAF-ECC12) for Shotcrete, Underground Engineering, Water Conservancy Engineering, Self-Compacting Concrete

Product Description

Construction admixture
Technical Data Sheet
Synthetic Fiber
Polyvinyl Alcohol Fiber
(PVAF-ECC12)

Chemical Nature	As the reinforced material for cement, PVAF-ECC12 has the good performance of bending strength, impact resistance, as the fiber itself has the properties of chemical resistance and alkali resistance etc., it is harmless to human and environment, is an ideal replacement of asbestos. By using of PVAF-ECC12 in concrete, the workability (slump and expansion) of concrete and the influence of bubble effect can be reduced. The workability of concrete can be ensured by optimizing the aggregate gradation, adjusting the dosage of water reducer and selecting the appropriate fiber length and content.
Typical Properties	Grades Unit PVAF-ECC12 Diameter μm 37~40 Density g/cm3 1.28-1.30 Tenacity CN/dtex (MPa) ≥1036 Elongation % 5.0~11.0 E-Modulus GPa ≥ 24.6 Hot water solubility (90ºC,1hr) % ≤2.5 Visual classification of dispersion(3 classes) 3 classes 1~3 Cutting Length mm 12
Feature of application	PPVAF-ECC12 is specially used in ECC product system, with thicker diameter and more toughness. It can be used in shotcrete, underground engineering, water conservancy engineering, self-compacting concrete, with high toughness in hardened state and the advantages of self-vibrating and self-compacting. 1, PVA fiber as reinforcing material, can obtain the tensile strain - hardening characteristics. pva-ECC is characterized by high toughness, its ultimate tensile strain is greater than 3%, and saturation state of multi-point cracking. 2, ECC as a repair material, with high strength, good ductility, energy absorption and good resistance to cracking, in the reinforcement transformation can replace the use of reinforcing steel, thus simplifying the construction and reduce costs 3, Improve the performance of freeze-thaw cycle resistance. 4, with anti-wear, can reduce the road surface and other concrete surface dust spalling weathering.
Usage	The recommended additive amount of PVA fiber used for fiber cement products is 1.0%-2.0%, The optimal length is 6mm or 12mm, with which it can effectively increase the strength of the fiber cement products. PVAF-ECC12 is regarded as the most optimal environment-friendly and green material that can replace the asbestos. According to the formulation design, add PVAF-ECC12 into water, stir to make it pre-dispersed, then add the fiber cement to the mixing tank and stir with other materials until the end of the production
Packaging	P.P. bag, 180kg net weight (1000×550×600mm) 12.96T/20'FCL Container
Storage condition	Keep away from heat or ignition sources. Don't store near strong oxidising agent (halogen, peroxide, etc)
Product safety	According to the legal provisions on dangerous goods and preparations, this product is non-hazardous. Not harmful to health or environment under normal use of product. If material is heated up, may cause burns.
General	The usual safety precautions when handling chemicals must be observed. These include the measures described in Federal, State and Local health and safety regulations, thorough ventilation of the workplace, good skin care and wearing of protective goggles.
Material Safety Data Sheet	All safety information is provided in the Material Safety Data Sheet for Polyvinyl Alcohol Fiber
Transport Regulation	Not known as a dangerous good according to transport regulations.

Important
The descriptions, designs, and data contained herein are presented for your guidance only. Because there are many factors under your control which may affect processing or application/use it is necessary for you to make appropriate tests to determine whether the product is suitable for your particular purpose prior to use. NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE MADE REGARDING PRODUCTS DESCRIBED OR DESIGNS, OR INFORMATION SET FORTH, OR THAT THE PRODUCTS, DESIGNS, OR DATA MAY BE USED WITHOUT INFRINGING THE INTELLECTUAL PROPERTY RIGHTS OF OTHERS. IN NO CASE SHALL THE DESCRIPTIONS, DATA OR DESIGNS PROVIDED BE PRESUMED TO BE A PART OF OUR TERMS AND CONDITIONS OF SALE. Further, you expressly understand and agree that the descriptions, designs, and data furnished by SIDLEYCHEM hereunder are given gratis and SIDLEYCHEM assumes no obligation or liability for same or results obtained from use thereof, all such being given to you and accepted by you at your risk.
© Sidley Chemical Co.,Ltd,
Room 901,Spring Building, No. 209 Yimeng Road,
Linyi City, Shandong Prov., China 276000
Phone: (86) 5397576660 January, 2024 Rev 1
