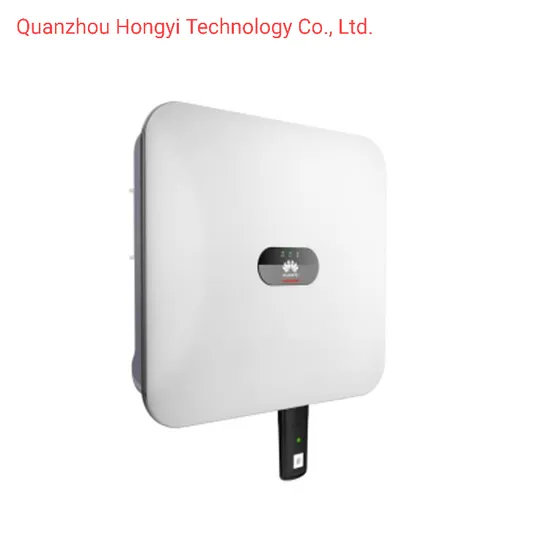

15kw on Grid Solar Inverter for Solar Power System on Grid Inverter 3 Phase
| US$200.00 | 10 Pieces (MOQ) |
Basic Info.
Model NO.
HYSPB--08
Material
Silicone, Polycrystalline Silicon
Feature
WiFi, Bluetooth, Water Resistant
Warranty
25 Years
Number of Cells
72PCS
Application
Light Industry
Condition
New
Certification
ISO, CE, DOT, E-MARK, CE, ISO, FCC, RoHS
View Distance
>800 M
Ingpress Protection
IP65
Shape
Positive Equilateral Triangle
Color
Blue
Installation
Movement
Type
Power
Nominal Voltage
12V
Discharge Rate
Low Discharge Rate
Electrolyte
Alkaline
Rechargeable
Chargeable
Transport Package
Carton Box and Pallet
Specification
520*271*228mm
Trademark
HONGYI
Origin
China
HS Code
8541402000
Production Capacity
1000 Piece/Pieces Per Week
Product Description
15kw On Grid Solar Inverter For Solar Power System On Grid Inverter 3 PhasePNG solar battery 51.2 v 50ah 100ah 200Ah lifepo4 lithium Ion battery for solar system
LFP Battery 48V 100AH 200AH, 300AH For Solar Storage System
Lithium Battery 12V 100AH 200AH 300AH For Off Grid Solar Storage System Homeuse
solar battery 2V2000ah Opzv battery solar energy GEL battery
12v 50ah agm gel battery for small system with 3 years quality warranty
Long Life Rechargeable 12V Vrla Gel Deep Cycle Solar Battery 12v 200ah For Solar Panel System
Gel Solar battery Storage Batteries 12 Volt 300 AH for Energy Storage System
Specification:
| Technical Specifications | HYSPB--08 | ||
| Efficiency | |||
| Max.Efficiency | 98.65% | ||
| European Efficiency | 98.3% | ||
| Input | |||
| Max. input voltage | 1080 V | ||
| Max. Input Current per MPPT | 22A | ||
| Max. Input Short Circuit Current per MPPT | 30A | ||
| MPPT Operating voltage range | 160V- 950 V | ||
| Rated input voltage | 600V | ||
| Number of MPP Trackers | 2 | ||
| Max. number of inputs | 4 | ||
| Output | |||
| Max. AC Active power | 15000W | ||
| Rated output power | 15000W | ||
| Max. AV apparent power | 16500 VA | ||
| Rated Output Voltage | 380V, 3W+PE | ||
| Rated AC Grid Frequency | 50/60 Hz | ||
| Max. output current | 25.2A | ||
| Adjustable power factor | 0.8 leading --- 0.8 lagging | ||
| Max. Total Harmonic Distortion | <3% | ||
| Protection | |||
| Input-side Disconnection Device | Yes | ||
| Anti-islanding Protection | Yes | ||
| AC Over-current Protection | Yes | ||
| AC short-circuit protection | Yes | ||
| AC over-voltage protection | Yes | ||
| DC reverse-polarity protection | Yes | ||
| DC surge protection | Yes | ||
| AC surge protection | Yes | ||
| Residual Current Monitoring Unit | Yes | ||
| Arc fault protection | Yes | ||
| DC MBUS to optimizer | Yes | ||
| General | |||
| Operation Temperature Range | -25ºC---60ºC (Derating above 45ºC) | ||
| Relative humidity | 0%-100% | ||
| Max. operating altitude | 0 - 4000 m (Derating above 2000 m) | ||
| Cooling Method | Natural Convention | ||
| Weight (with mounting plate) | 25 KG | ||
| Dimensions | 525×470×262mm | ||
| Protection Degree | IP65 | ||
