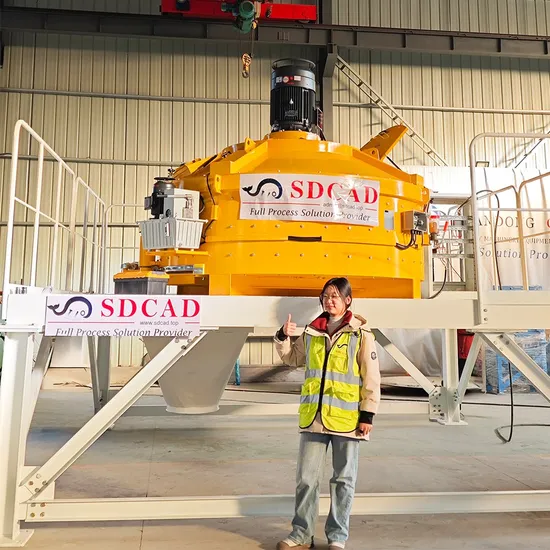

Quality Certification Planetary Concrete Pan Cement Mixer with Oil Temperature Detection
Basic Info.
Type
Concrete Mixer
Shotcrete Type
Dry
Machining Process
Welded Molding Machine
Structure
Rotor Type
Productivity
180m²/h
Feeding Height
1390mm
Vibrating Amplitude
2.4mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Accordingly
Name
Planetary Concrete Mixer
Item/Type
MP 500
out Capacity(L)
500
Input Capacity(L)
750
out Weight(Kg)
1200
Mixing Power(Kw)
18.5
Lifting Power(Kw)
4
Planet/Blade(Nr) One Mixing Shaft with T
2
Side Scraper(Nr)
1
Discharging Scraper(Nr)
1
Weight(Kg)
2400
Dimension (L*W*H, mm)
2230*2080*1880
Transport Package
Laminated Packaging
Specification
accordingly
Trademark
SDCAD
Origin
China
HS Code
8474900000
Production Capacity
5000 Sets/Month
Product Description
Mixing Locus Diagrams This diagrams show the perfect mixing action of the DEX planetary mixer from 5 to 60 seconds after material is added. Note that the floor is completely swept by the mixing stars action every 4 revolutions (6 seconds) and that each zone is covered at regular intervals in time.
PRODUCT SPECIFICATIONS
| Model | MP330 | MP500 | MP750 | MP1000 | MP1500 | MP2000 | MP2500 | MP3000 |
| Output Capacity (L) | 330 | 500 | 750 | 1000 | 1500 | 2000 | 2500 | 3000 |
| Input Capacity (L) | 500 | 750 | 1125 | 1500 | 2250 | 3000 | 3750 | 4500 |
| Input Mass (kg) | 800 | 1200 | 1800 | 2400 | 3600 | 4800 | 6000 | 7200 |
| Mixing Power (kw) | 15 | 18.5 | 30 | 37 | 55 | 75 | 90 | 110 |
| Discharge Power (kw) | 2.2 | 2.2 | 2.2 | 3 | 3 | 4 | 4 | 4 |
| Lifting Power (kw) | 4 | 4 | 7.5 | 11 | 15 | 22 | -- | -- |
| Skipper Capacity (L) | 580 | 870 | 1300 | 1740 | 2610 | 3480 | -- | -- |
| Skipper Mass (kg) | 870 | 1305 | 1950 | 2610 | 3615 | 5220 | -- | -- |
| Skipper Speed (m/s) | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | -- | -- |
| Weight (kg) | 1700 | 2000 | 3500 | 6000 | 7000 | 8500 | 10500 | 11000 |
| Dimension (mm) | 1910 * 1590* 1747 | 2220* 2071* 1880 | 2581* 2336 * 2195 | 2891* 2602* 2217 | 3223* 2902* 2425 | 3625*3230* 2630 | 2893* 3550* 2695 | 3893* 3550* 2975 |
