Bed Type Automatic Milling Machine for Large Metal Workpiece High Rigidity

Product Description

√ Suitbale for household and daily necessities mold processing.
√ Excellent accessories, strict quality control, long durability.
√ Hard-grinding guide way, thick machine body, effctive casting, the whole machine is durable.
√ Milling head key parts from Taiwan, bearings from Chinese famous brand.
√ High efficiency, strong cutting machine performance.
WOKRTABLE Ultra-audio quenching, precision grinding and scraping guide. Rotary table is optional.
TURRET MILLING HEAD Turret milling head can swivel 45° (forward-backward), rotate 90° (left-right). Easy to mill at special angle.
SPINDLE High precision R8/NT30/NT40 spindle, spindle runout:0.003mm
X/Y/Z AUTO FEED X/Y axis auto feed, Z axis electric lifting, improve machining efficiency.
DRO Based on customer needs, optional 2-axis DRO or 3-axis DRO.

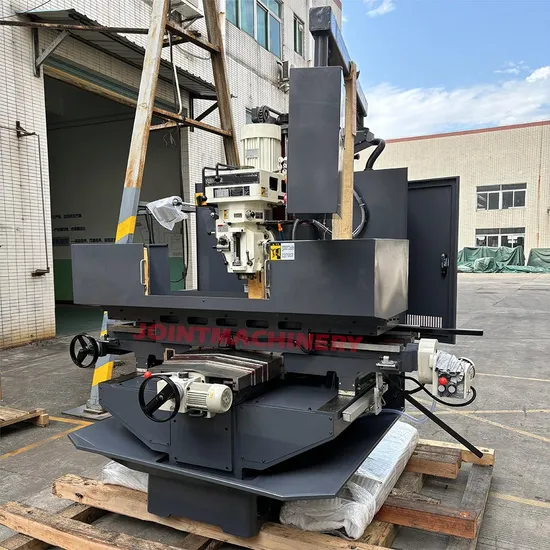

B600L Large Bed Type Vertical Milling Machine with Precision Milling Head

Item		Unit	B600
Table size		mm	1370*405
Travel	Longitude(X)	mm	1000
	Crossward(Y)	mm	350
	Vertical(Z)	mm	640
Travel of spindle quill		mm	150
Max diatance from the spindle nose to table		mm	760
Spindle	Rotation speed (Step speed milling head)	50HZ rpm	58-3000
	Rotation speed (Step speed milling head)	60HZ rpm	70-3600
	Taper	-	NT40
	Rated power	HP	5HP
Dimension		mm	2000*2230*2150
Tilt anngle	Forward and Backward	°	0°
	Left and Right	°	±90°
Net weight		kg	2800
