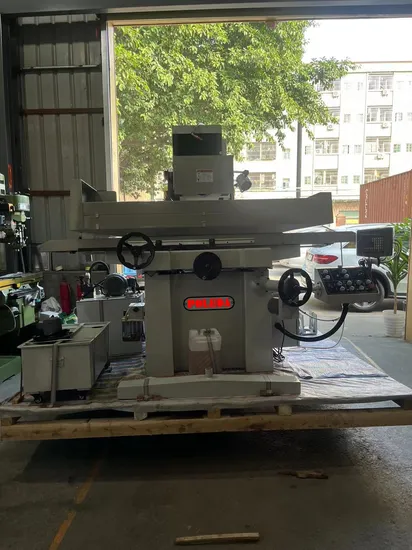

3060ahr Saddle Mobile Automatic Surface Grinding Machine with High Efficiency and High Quality

Product Description

Product Description
Features of Surface Grinding Machine
High precision, unmatched rigidity, automatic lubrication system, and perfectly suitable for molding grinding.
High Precision and High Rigidity: The main casting of this surface grinding machine is expertly crafted from cast iron and annealed to eliminate internal stress, ensuring long-term mechanical precision stability. Featuring a Taiwan-type direct spindle and P4 class ultra-precision roller bearings, this machine maintains low noise and vibration-free performance at high speeds, delivering high torque and making it perfect for forming grinding.
Automatic Lubrication System: This surface grinder boasts an advanced automatic lubrication system, utilizing an electromagnetic pump for forced oil injection. This ensures automatic circulation, providing effective lubrication to every screw and sliding surface for flawless operation.
Product Parameters
Surface Grinding Machine Features:
1. The main castings are made from high-grade cast iron, undergoing annealing and shock aging treatments to remove internal stress. This significantly enhances casting stability and reduces deformation risks.
2. Designed for efficiency, our machine's material is thick and stable, meeting the rigorous demands of heavy cutting and fine grinding.
3. The guide rail is coated with a high-grade wear-resistant adhesive, while precision shovel flowers ensure accuracy and durability.
4. Spindle arm end swing precision at 0.003mm.
5. Precision ball screws: lighter, more accurate, and more durable.
6. Main components of the hydraulic system are independently designed for low vibration and low noise operation.
7. Rational cable pipeline design for unobstructed operation.
8. Lubricating oil circuit comes with a boot self-test, fault alarm, automatic cycle, and a pressure sensor to ensure no guide rail oil shortages.

surface grinding machine		Model number	3060AH/AHR/AHD/NC/CNC	4080AH/AHR/AHD/NC/CNC
		unit	specification	specification
Table area		mm	600*300	800*400
Maximum left and right movement		mm	600	800
Maximum amount of movement before and after		mm	300	400
Maximum distance from table to spindle center		mm	540	600
Maximum weight of table		kg	350	350
Flat gloss			R0.25	R0.25
Table T-slot		mm*N	14*1	14*3
Table speed		m/min	5--23	5--25
Front and rear hand wheel feed	1 frame	mm	0.02	0.02
Front and rear hand wheel feed	1 round	mm	4	5
Automatic feed front and rear		mm	0.1-8
Dart back and forth	50HZ	mm/min	790	990
	60HZ	mm/min	950	1100
Grinding wheel size	Outside diameter x width x inside diameter	mm	ø355*20~40*127	ø355*20~45*127
Spindle speed	50HZ	R.P.M	1450	1450
Spindle speed	60HZ	R.P.M	1740	1800
Upper and lower hand wheel feed	1 frame	mm	0.01	0.001
	1 turn around	mm	2	0.5
Automatic feed rate		mm	/	0.005-0.025
Rapid up and down movement		mm/min	/	230
Spindle motor		HxP	5*4	7.5*4
Up and down drive motor		HxP	/	750W
Hydraulic motor		HxP	2*4	2*4
Flush motor		HxP	1/8*2	1/8*2
Front and rear drive motor		HxP	40W	150W
Machine height		mm	1830	2600
Floor space		mm	3500*2500	2360*2190
Weight (approximate)		kg	2100	2900

Remark
AH Left and right hydraulic, front and back step, up and down manual.
AHR Left and right hydraulic, front and back step, up and down fast lift.
AHD Left and right hydraulic, front and rear step, up and down servo automatic control.
NC Left and right hydraulic, front and rear servo, up and down servo automatic control.
CNC X, Y, Z, three-axis CNC control.
Detailed Photos
Certifications

FAQ
1.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on.For some normal items, we have in stock, the MOQ is 1 set.
2.How to control the quality of the products?
A.We have always placed great emphasis on the quality level is maintained.Moreover,the principle we always maintain is "to provide customers better quality, better price,and better service".
3.What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Machine, Lathe Machine , Milling Machine,Grinding Machine ,Vertical Machining Center ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine and so on .
4. What is your trade terms?
A :Ex-works FOB, CFR and CIF all acceptable.
5.What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
6.What CNC system do you use?
A:FANUC, SIEMENS, MITSUBISHI, SYNTEC, HCN .It depends on your choice.
7.How can I choose the most suitable machines?
A:Send us the products drawings and applications ,we will choose the most suitable machines for you.
8.what kind of package do you offer?
A.Normally in plywood case, to make sure all goods in good condition. Customized package can be acceptable.
9.Can your plant do OEM?
A:Yes it is no problem. We can do OEM and ODM for any customers.
10.How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for mac.
