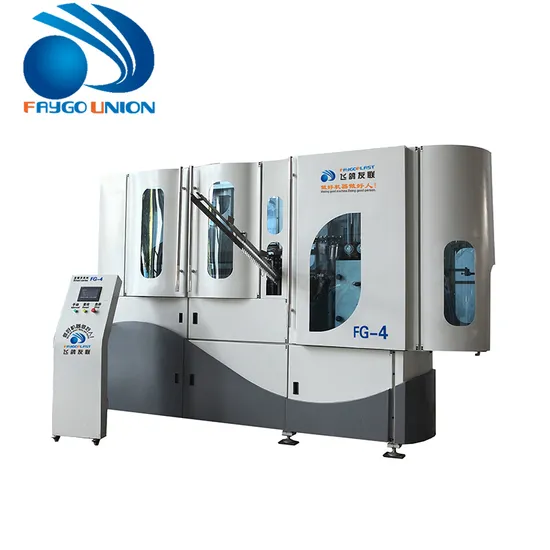

2 Liter Mineral Water Blow Molding Machine

Product Description

2 liter mineral water blow molding machine
Faygo Union Packaging Machinery Co., Ltd. is a professional enterprise which integrates designing, manufacturing and offering the turn-key project to our partners.
For decades, Faygo Union has dedicated herself to the packaging machinery of water, beverage, daily use chemical and edible oil. We have supplied over 70 countries and regions with the following products: air compressors, PET blowing machine, water treatment, washing-filling-capping assembly line and barreled drinking water assembly line.
2. Advantages:
2.1 High speed with reasonable structure:
The unique linkage cam can finish mold-opening, mold-locking and bottom mold-elevating in one movement, the blowing period is greatly reduced to 2 seconds.
The linkage cam is intelligently driven by one servo motor, this obviously simplify the blowing machine structure, which make it convenient to maintain and no need for heavy lubrication work.
2.2 Less heating oven, small electricity consumption
The preforms distance in the heating oven is only 38.1mm, which means more preforms can be put into the oven compared with the traditional blowing machine. The heating efficiency is largely improved, and as a result, it saves more than 30% electricity consumption than the traditional blowing machine.
2.3 Stably running
The machine adopts modularized design concept, it has compact and reasonable structure, it reduces the failure rate from the basic design angle. FG4 does not need the low air compressor.
3 Detail specification of FG-4 PET bottle blowing machine

Main Parameter
Model		FG-4
Capacity		Depend on bottle design	5500-7200PCS/H
Applicable Preform		Height	<330mm
		Neck	20mm-25mm
Applicable Bottle		Neck	20-25mm
		Volume	Max.2Liter
		Height	Max.328mm
		Diameter	Max.105mm
Electric consumption		Install power	51kw
		Heating oven powder	46kw
		Heating Oven operating power	26kw
Air consumption		Pressure	4m3/min 4.0MPa
		Capacity	4m3/min 4.0MPa
Mold Chiller		Pressure	4-6Bar
		Temperature	6-13ºC
		Flow	45L/min
Oven Chiller		Pressure	4-6Bar
		Temperature	6-13ºC
		Flow	26L/min
Machine Dimension		L*W*H	3900*900*2500mm
		Weight	3500kg
Capacity: 5000-5500BPH(based on 1L)
Max. Volume: 2 Litter Total Size: Blowing Main machine: 3.6*1.3*2.3m Sorting machine:2*1.5*1.5m/Loader:3*1*1.5m
Main electrics
Pneumatic part& Cylinder	Valve			GERMAN
Electric part	PLC			JAPAN Mitsubishi
	Servo System			JAPAN Panasonic
	Frequency inverter			JAPAN Mitsubishi
	Operating system			JAPAN Mitsubishi
	Touch screen			JAPAN Mitsubishi
Blowing	Valve			JAPAN Parker
One-way Valve				GERMAN
Throttle Valve				GERMAN
Reducing Valve				GERMAN DURAY
Note: All the electrical components adopts CE,UL,CCC approved international advanced high-tech product

Company Profile

Jaingsu Faygo Union Machinery is a professional manufacturer of plastic machines. It occupied an area of 18000 square meters. With years of development, its products covers plastic extrusion lines, plastic blowing machine, plastic recycling machine, air compressor etc.
Stick to the company idea is making good machine, being good person, Faygo Plast alwasy provide customers with high quality machines. Welcome to visit our company, and make win-win cooperation in the future.
FAQ
Q: Your company is a transactional company or an industrial manufacture factory?
A: We are an industrial manufacture factory which locates in Zhangjiagang city.
Q: All of your products are made by your self or compacted via purchasing the others?
A: We have independent technical team who focus on making machines, all the products are made by our technical team.
Q: What is the ability of your factory?
A: About 100 lines per month.
Q: Do you have any other services about your products?
A: We have a lot of experience on making projects and specifications for our clients, also we have a fixed service system.
Q: How do you make the quotation for clients?
A: The price depends on quality and performance but the clients should be satisfied first.
