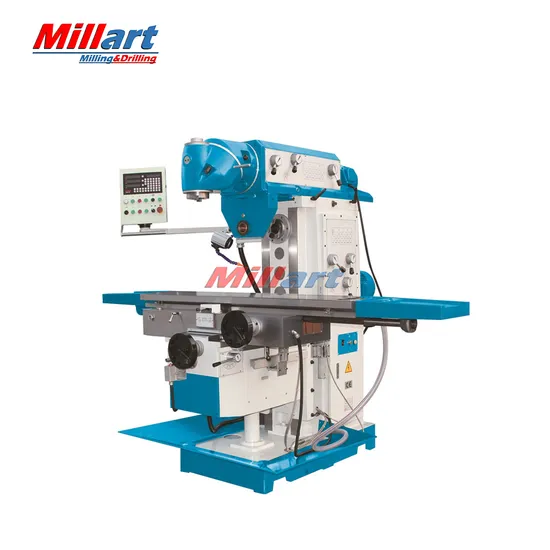

Knee Type Universal Milling Machine XL6436/XL6436c/XL6436cl Swivel Head Milling Machine
| US$8,500.00-9,800.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
XL6136 XL6436C XL6436CL
Structure
Bed type
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Table Size
1325X360 mm
Arm Travel
550
Main Motor Power
5.5 (H)4(V)
Transport Package
Wood Case
Specification
CE ISO9001
Trademark
L&T
Origin
China
HS Code
84595900
Production Capacity
50 PCS/Month
Product Description
Knee Type Universal Milling Machine XL6436/XL6436C/XL6436CL Swivel Head Milling MachineFeature :
Logical, clearly arranged gearshift for speed change
Hardened and polished guide ways guarantees top accuracy
Setting of the required feed speed by potentiometer on the control panel
Finely graduated feeds in all axis, driven by servo motor
Universal mill head system 'Huron' adjusts to various angles
Complete with rapid feed in x-, y- and z-axis to reduce downtime
Optimal adjustments of spindle speed and feed allow for economic machining of various materials
Technical Parameter :
| Model | Unit | XL6436 | XL6436C | XL6436CL |
| Table size | mm | 1325×360 | 1325×360 | 1600×360 |
| Table travel (X/Y/Z) | mm | 750/320/460 | 1100/320/450 | 1300/320/450 |
| Table feed speed X axis | mm/min | 30~750 | 30~750 | 30~750 |
| Table feed speed Y axis | mm/min | 20~500 | 20~500 | 20~500 |
| Table feed speed Z axis | mm/min | 15~375 | 15~375 | 15~375 |
| Spindle taper | 7:24 IS050 (H) 7:24 IS050 (V) | 7:24 IS050 (H) 7:24 IS050 (V) | 7:24 IS050 (H) 7:24 IS050 (V) | |
| Arm travel | mm | 550 | 550 | 550 |
| Distance between spindle nose and table surface | mm | 196-656 | 196-646 | 196-646 |
| Distance between horizontal nose and table surface | mm | 20-480 | 20-470 | 20-470 |
| Distance between spindle axis and arm surface | mm | 200 | 200 | 200 |
| Spindle speed range | r.p.m | 12 steps 60-1750 (V) 12 steps 60-1800 (H) | 12 steps 60-1750 (V) 12 steps 60-1800 (H) | 12 steps 60-1750 (V) 12 steps 60-1800 (H) |
| T-slots(NO./width/pitch) | mm | 3/18/80 | 3/18/80 | 3/18/80 |
| Main motor power | Kw | 5.5 (H) 4 (V) | 5.5 (H) 4 (V) | 5.5 (H) 4 (V) |
| AC servo feed motor torque | N.m | 10 | 10 | 10 |
| Overall size | mm | 1800×2100×2000 | 2245×2100×2000 | 2245×2100×2000 |
| Net weight | kg | 2685 | 2750 | 2800 |
