New Design Arbitrary Angle Universal Drill Bit Sharpener Cutter Tool Grinding Machine
| US$300.00-390.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
u2 u3
Automatic Grade
Manual
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
High Precision
Condition
New
Machinery Test Report
Provided
Video Outgoing-Inspection
Provided
Voltage
220V/380V
Gross Weight
45kg
Power
0.37kw
Spindle and Wheel Longltudinal Adjustmen
6mm
Transport Package
Carton or Wooden Box
Specification
536*424*415MM
Trademark
Fagor
Origin
China
Production Capacity
60000 Pieces / Year
Product Description
| MODEL | U2/U3 | 5C | |
| Wheel | Diameter | Φ100mm | Φ100mm |
| Hole diameter | Φ20mm | Φ20mm | |
| Spindle speed | 5200rpm | 5200rpm | |
| Max.clamping diameter | Φ3~16mm | Φ3~28mm | |
| Longitudinal traver of index head carrier | 140mm | 140mm | |
| Longitudinal adjustment travel of index head carrler | 18mm | 18mm | |
| Spindle and wheel longltudinal adjustment travel | 6mm | 6mm | |
| Taper angle range | 0~180° | 0~180° | |
| Negative taper angle range | 0~26° | 0~26° | |
| Relief angle range | 0~44° | 0~44° | |
| Motor | Power | 0.37kw | 0.37kw |
| Speed | 2810rpm | 2810rpm | |
| Voltage Three-Phase | 380V | 380V | |
| Voltage Single-Phase | 220V | 220V | |
| Frequency | 50Hz/60Hz | 50Hz/60Hz | |
| Gross weight | 45Kg | 45Kg | |
| Packing dimensions | 536x424x415mm | 536x424x415mm | |
| Standard Accessories | Tools | 1set | 1set |
| Collet | 5pcs | 8pcs | |
| Grinding wheel | 1pcs | 1pcs | |
FAQ
Q: How long is the quality guarantee?
A: One year guarantee.
Q: How long is the delivery time?
A: Generally it is 3-7 days if the goods are in stock. If the goods are not in stock, it will take 8-20 days.
Q: Do your products have a factory inspection before shipment?
A: 100% self-inspection before shipment.
Q: Can you provide some free samples?
A: Actually we have a very good price principle, when you make the bulk order then cost of sample will be return to you.
Q: What kind of packing do you send?

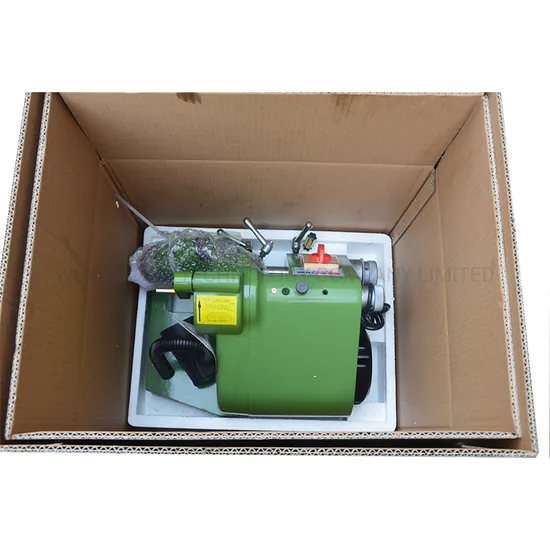

A: We use high quality cartons, internal environmental protection buffer material.
Q: What is our loading port?
A: Usually in Shanghai port, or apply for other ports.
