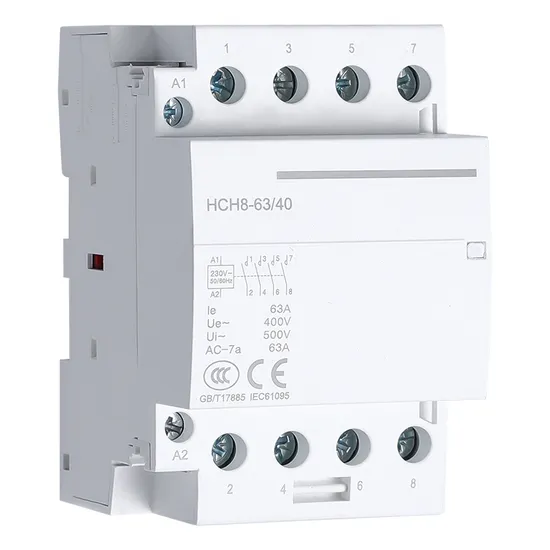

Nch8 Household Contactor 20A 25A 40A 63A AC Modular Contactor
| US$1.00-20.00 | 100 Pieces (MOQ) |
Basic Info.
Model NO.
HCH8
Main Circuit Rating Voltage
AC120V/230V
Main Circuit Rating Current
16A/20A/25A/40A/63A
Type
Ac Contactors
Model
1p/2p/3p/4p
Rated Current
16A/20A/25A/40A/63A
Coil
AC220V
Utilization Category
AC-07A
Certificate
TUV CE
Transport Package
Paper Box
Specification
90mm+32mm+42mm
Trademark
OEM
Origin
China
Production Capacity
20000PCS/Month
Product Description
Product DescriptionModular contactors are frequently applied for switching of lamp loads, fans or pumps in both utility as well as industrial areas.
All contactors with ac/dc coils ensure silent operation which is further enhanced for low consumption of power. Optimal contacts and low heat dissipation guarantee a long lifetime of the contactor which is available in a wide range of characteristics.
Technical characteristics Designed according to IEC 60947-4-1 and IEC 61095 standards. Suitable for applications in general control, heating & lighting applications. Available in 16A, 20, 25, 40 & 63 A ratings with up to 4-pole contacts. Coil voltages: 12 Vac/dc, 24 Vac/dc, 48 Vac/dc, 230 V ac, 220 Vdc.
Detailed Photos
| Modular size | 1 module | 2 module | 3 module | 4 module | |
| Model | BCH8-116 BCH8-120 BCH8-125 | BCH8-216 BCH8-220 BCH8-225 BCH8-232 BCH8-240 BCH8-263 BCH8-2100 | BCH8-316 BCH8-320 BCH8-325 BCH8-332 BCH8-340 BCH8-363 BCH8-3100 | BCH8-416 BCH8-420 BCH8-425 BCH8-432 BCH8-440 BCH8-463 BCH8-4100 | |
| Rated current(A) | AC-7a | 16,20,25 | 16,20,25,32,40,63,100 | ||
| AC-7b | 6,7,9 | 6,7,9,12,18,25,- | |||
| Coil voltage(V) | AC 50/60Hz | 24, 110, 230 | |||
| DC | 24, 48 | ||||
| Contact | 1NO 1NC | 2NO 1NO+1NC 2NC | 3NO 3NC | 4NO 2NO+2NC 4NC 3NO+1NC | |
| Protection degree | IP20 | ||||
| Operation temperature | -5 ~ 60ºC | ||||
| Mechanical lifespan | 100000times | ||||
| Electrical lifespan | 10000times | ||||
