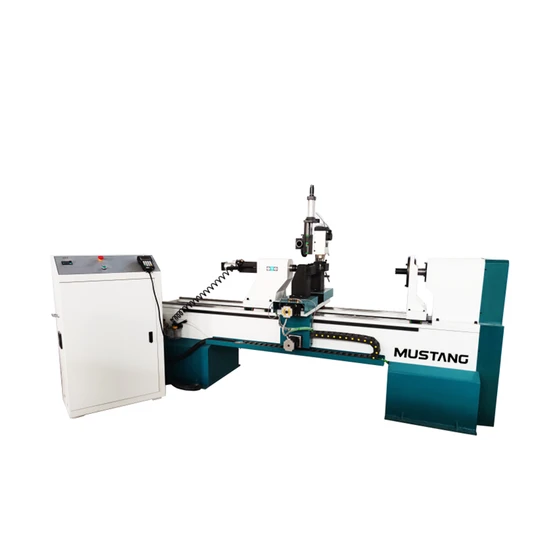

Mt1530s Mustang Heavy Duty CNC Wood Turning Machine for Newel Posts

Product Description

MT1530S Mustang Heavy Duty Cast Iron Body CNC Wood Turning Machine for Newel Posts
Product Description
Specification

Max process length	1500mm
Process diameter	300MM
Guide	taiwan Hiwin
Spindle	3.5kw air coolingspindle
Control system	Richauto A132
Main Motor power	4KW
Volatge	AC 380V,50/60HZ
Motor	servo/Stepper motor
Driver	yako2811 driver
Drawing software	AutoCAD
File format	dxf format
Rotary speed	0-3000r/min

Details Images
Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, shrinking film and wooden packing convenient and efficient packaging services will be provided.
Company Profile



Advantage:
1. Whole machine is cast iron structure, which is high temperature annealing and vibrating stress relief, machine weight up to 1600kgs to make sure the lathe body
stabilized and never deformed.
2. Special used for wood turning and wooden cylinder engraving, for table legs,stair railing (banisters), wooden bowl etc. 3.Adopting advanced handheld DSP system with USB port which is easy for operating even without a computer
4. Adopt Germany ball screw and Taiwan HIWIN helical square guide rail with high precision and longevity.
5. Compatible with several CAD/CAM design software, e.g. type3, artcam, etc.
6.Rotating speed can be adjusted by inverter also you can see speed on control cabinet panel
7. One time tool setting to finish the whole work piece.
8.Turning,broaching and engraving can be done with one machine by high speed
Application: All kinds of wooden staircases,stairway balusters,stairway newel posts;dining table legs;end table Legs;sofa table legs;bar stool legs;chair legs;chair arm posts;chair stretchers;bed rails,wooden bowl, lamp posts,baseball bats,wooden plates etc
Customer Feedbacks
FAQ
1.What is the payment term? T/T 30% in advance and balance before shipment, LC or by negotiation. 2.What is the delivery time? For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days. 3.What is the guarantee? 12 months for the whole machine. Within 12 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 12 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime. 4.What is the technical support? 1. Technical support by phone, email or MSN/Skype around the clock 2. Friendly English version manual 3. Engineer available to service machinery overseas 5.What is the after sales services? you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/fax/tel etc. 6.How is the packing? We can also send our engineer to your factory Water-proof plastic film package with foam protection in each corner Solid Seaworthy Wood Box Package with Steel Belt, Save space as much as possible for container loading.
Service - ONE year machine warranty ,during the warranty period , if any parts broken, we change a new part for you freely.
- All machines are debugged before shipment.
- We offer detailed machine manual, software manual, controller manual.
- Our factory make a vivid traing CD.
- 24 hours on line or phone or by email technical support.
- Longlife time freely provide technical support .
- Two years , freely guarantee
- Free training course at our plant.
- Welcome to visit our factory, learn machine face to face.
