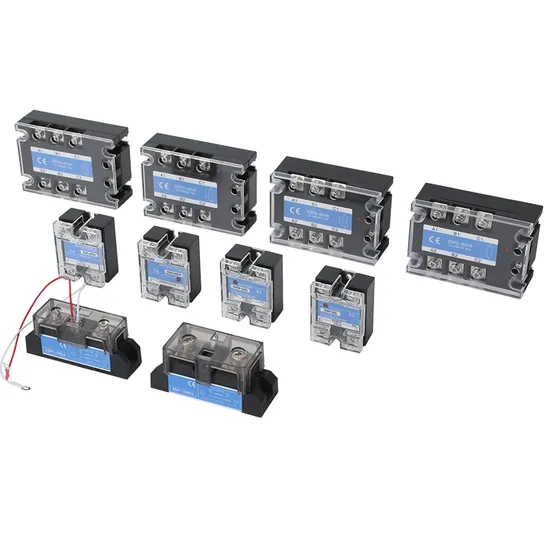

Industrial 12V/24V/220V 10A/40da/25da/60A DC-DC Single Phase SSR Solid State Relay
| US$3.00 | 100 Pieces (MOQ) |
Basic Info.
Model NO.
SSR
Phase
2
Electricity Type
Dc
Number of Pole
2
Load
Weak Power Relay
Protective Characteristics
Open Relay
Action Principle
Electronic Type
Size
Miniature
Type
Electric Parameter Relay
Transport Package
Carton
Origin
China
HS Code
8536419090
Production Capacity
500000
Product Description
DESCRIPTION: Single-phase VA solid state relay| input | |||||||
| Control voltage range | 470KΩ-560KΩ/2w | ||||||
| output | |||||||
| output voltage range | 7%-95% | ||||||
| Maximum load current | 10-220VAC/10-380VAC | ||||||
| Peak resistance | 600VAC | ||||||
| lnsulation resistance | NA | ||||||
| Leakge current in 0FF state | 10A | 25A | 40A | 60A | 80A | 100A | 120A |
| Saturation depressurization in On state | ≤8mA rms | ≤8mA rms | ≤8mA rms | ≤2mA rms | ≤2mA rms | ≤2mA rms | ≤2mA rms |
| The on-off response is delayed | ≤5.6V | ||||||
| size | 57.4L×44.8W×28H | ||||||
| weight | 100g | ||||||
| Voltage resistant insulation between input and output | 2000V rms | ||||||
| Voltage resistant insulation between inputand output and housing | 4000V rms | ||||||
| Ambient temperature | -20ºC-75ºC | ||||||
| Installation mode | bolting | ||||||
| certificate | CE | ||||||
