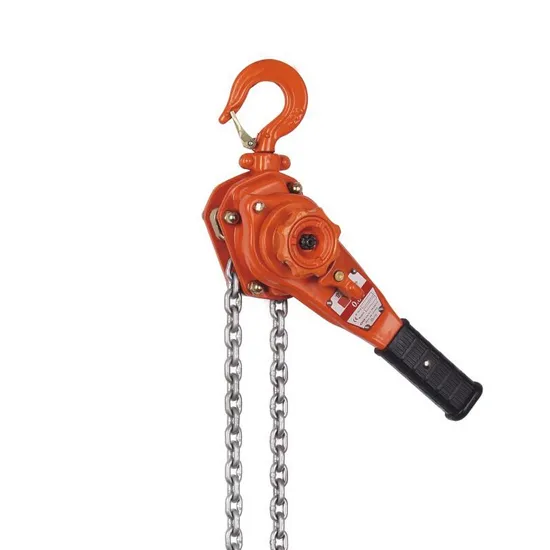

Lifting Tools Steel Lever Chain Hoist (K2243)
Basic Info.
Model NO.
K2243
Sling Type
Chain
Lift Speed
2~8m/min
Maximum Lifting Height
12m
Chain Falls
2
Certification
CE, ISO9001:2000, GS
Condition
New
Color
Orange
Capacity
0.75 T 1.5 T 3 T 6 T
Hmin
1.5m 3 M 6 M 9 M
Chain
G80
Colour
Yellow
Model
Lifting Tools Steel Lever Chain Hoist (K2243)
Transport Package
Carton
Specification
CE ISO9001 GS
Trademark
HAIYAN
Origin
China
HS Code
8425190000
Production Capacity
1000PCS/Week
Product Description
Lifting tools steel lever chain hoist (K2243)Product Introduction and application:
1. Lever block is a kind of highly efficient and versatile hand operate hoisting appliance.It is particularly used in thenarrow places,the open air and overhead places for pulling and stretching work at any angle.
2. The lever block is using in safety,reliable and durable.
3. The lever block is excellent performance,easy operation and convenience maintenance.
4. The lever block is small volume,weight light and portable in size.
5. The lever block is high efficiency ,fast lifting and light hand pull.
6. There are advanced structure and attractive appearance of lever chain block.
| HS-VA Lever Block Specifications | ||||||||
| Model | HS-VA2.5 | HS-VA5 | HS-VA7.5 | HS-VA10 | HS-VA15 | HS-VA20 | HS-VA30 | HS-VA60 |
| Rated Load(T) | 0.25 | 0.5 | 0.75 | 1 | 1.5 | 2 | 3 | 6 |
| Test Load(T) | 0.375 | 0.75 | 1.125 | 1.5 | 2.25 | 3 | 4.5 | 9 |
| Standard Lift(m) | 1 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Min.Distance Between Two Hooks(mm) | 205 | 260 | 295 | 295 | 335 | 385 | 450 | 542 |
| Efforts Required Capacity(N) | 217 | 303 | 140 | 185 | 234 | 251 | 363 | 370 |
| No. of Load Chains | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 |
| Dia. Of Load Chain(mm) | 4 | 5 | 6 | 6.3 | 7.1 | 8 | 9 | 9 |
| N.W. (kgs) | 1.85 | 3.5 | 7 | 7 | 11 | 15.5 | 20 | 28V |
VA lever hoist detailed pics as belows:
Welcome to send us inquiry for best price! 0.75T 1.5T 3 T 6T
