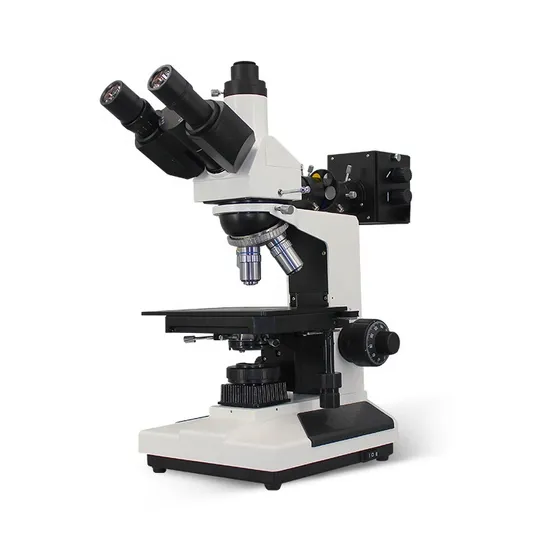

Boshida Factory Price BD-2030 Polarizing Metallurgical Microscope for Geology and Petrology Material Research

Product Description

Products Description

Model	BD-2030
Optical system	Plan Achromatic optical system.
View tube	Trinocular, 30° inclined, 360°rotating. Splitting ratio: 100:0 or 0:100. IPD adjustment: 50mm ~ 75mm, Diopter adjustment: ± 5 diopters.
Eyepiece	High eye level WF PL10X(Φ18mm)
Objective	Plan Achromatic long working distance metallurgical objective: Standard: PL 5X, PL10X, PL L20X, PL L50X Optional: PL L100X
Nosepiece	Quadruple(4-position).
Stage	Double layer mechanical stage, stage size: 185*140mm, moving range: 75mm*50mm. Right hand control for X and Y direction.
Focusing system	Coaxial coarse and fine focusing system. Tightness and height limitation of coarse regulation are adjustable Fine adjustment accuracy: 0.002mm Focusing stopper for protecting objective and sample.
Illumination	Transmitted and reflected illumination. 6V/20W halogen lamp or LED lamp, brigtness adjustable.
Camera adapter	0.5X or 1X C-Mount.
Camera	Optional.
Power supply	AC100-240V, 50/60Hz.

FACTORY EXPERIMENT FAQ Q1How can you do sample testing? A1We can suggest microscope according to applications of user. We had thousands of sucessful cases.If user is not sure of the microscope image quality, user can send us samples for testing. We will send pictures to user. If user is not satisfited with it,don't need to buy it.
Q2What kind of customization you can supply?
A2Our microscope have standard version and optional parts. User can choose configuration according to requirement and budget.For Industry using, there are varity of requirements. We can supply/produce microscopes and correct solutions according to requirements.
Support OEM & ODM
1. Free sample testingWe can test sample of user and help user to choose the most suitable microscope according to applications and requirements. 2. Online trainning. 3. Life time technical service. 4. Free SolutionsWe can suggest solutions according to applicatins and requirements. 5. CustomizedWe can customize products according to applicatins and requirements. Warranty
1). We provide one year warranty for whole machine, three month for consumable spare parts.
2). We will cover all cost due to quality problem during the warranty period.
3). For those problems caused by improper operation or inappropriate protection or maintenance, we will repair free of charge, but for damage spare parts, we will only charge at the cost price.
4). We provide the whole using life service free of charge, but for the products that exceeds warranty period, we will only charge the replacement at cost price.
